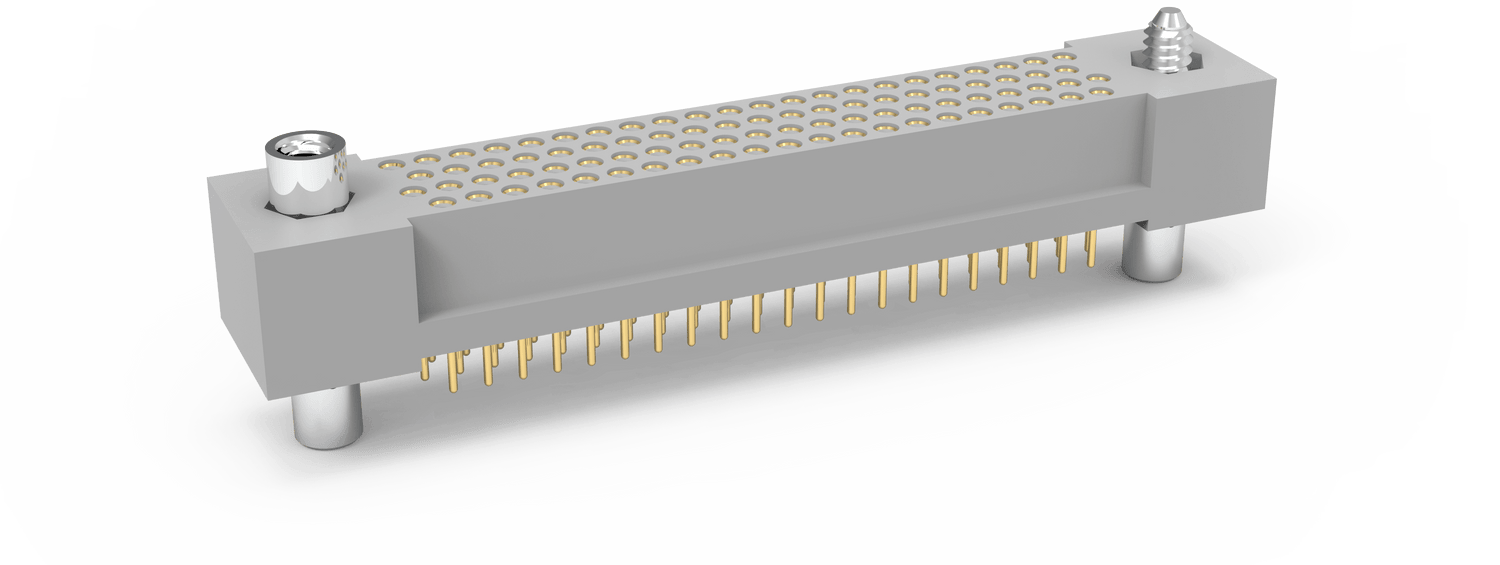

RM422-204-761-9800
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $397.64 | - | - |
| 10 | $279.97 | 12% | |
| 25 | $215.86 | 17% | |
| 50 | $171.39 | 20% | |
| 100 | $153.05 | 22% | |
| 250 | $142.62 | 25% | |
| 500 | $137.96 | 27% | |
| 1,000 | $133.90 | 30% |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Products will ship from AirBorn authorized distributors.
No min order quantity for items in stock.
Out of stock items, while still orderable, will have a min order quantity specified by AirBornStock.com.
Default lead time is eight weeks.
Out of stock items will have lead time specified by AirBornStock.com.
Standard, expedited, and express delivery options are available. See shipping rates.
Datasheets
Datasheets
RM422-204-761-9800
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator
RM -> .075" Metal I/O Connectors
Body
Rows
4 -> 4 Rows
Body Style
2 -> Receptacle, Straight, with Mounting Ears
Body Material
2 -> Polyphenylene sulfide (PPS)
Size
086 -> 086
110 -> 110
164 -> 164
196 -> 196
204 -> 204
220 -> 220
250 -> 250
276 -> 276
300 -> 300
404 -> 404
Contacts
Contact Type
75 -> Socket, Straight, Dip Solder, .250" x .018" dia
76 -> Socket, Straight, Solder Cup
77 -> Socket, Straight, Flex, .093" x .017" dia
78 -> Socket, Straight, Wire Wrap, .500" x .018" dia
79 -> Socket, Straight, Wire Wrap, .375" x .018" dia
81 -> Socket, Straight, Dip Solder, .109" x .018" dia
82 -> Socket, Straight, Dip Solder, .140" x .018" dia
83 -> Socket, Straight, Dip Solder, .172" x .018" dia
87 -> Socket, Straight, Press-Fit, .188" (Board: .093" - .125" thk)
88 -> Socket, Straight, Press-Fit, .308" (Board: .156" - .200" thk)
89 -> Socket, Straight, Press-Fit, .388" (Board: .250" + thk)
Plating Options
1 -> Gold Plated Termination
2 -> Pre-Tinned Termination, SnPb alloy
3 -> Pre-Tinned Termination, SAC305 alloy (dip solder options only)
Hardware
Hardware Style
0256 -> None
82 -> Hex Turning Jackset, Reversed, Installed (.200 knob)
83 -> Fixed Jackset, Reversed, Installed, #2-56 x .247" thd ext
84 -> Fixed Jackset, Reversed, Installed, #2-56 x .320" thd ext
91 -> Guide Sockets, Full Round, Installed, #2-56 x .247" thd ext
92 -> Hex Turning Jackset, Installed (.200 knob)
93 -> Fixed Jackset, Installed, #2-56 x .247" thd ext
94 -> Fixed Jackset, Installed, #2-56 x .320" thd ext
96 -> Guide Sockets, Polarized, Installed, #2-56 x .320" thd ext (Unassembled with Polarization option '00')
97 -> Guide Sockets, Polarized, Installed, #2-56 x .247" thd ext (Unassembled with Polarization option '00')
98 -> Guide Sockets, Universal, Installed, #2-56 x .247" thd ext
Polarization
00 -> None
01 -> Keying Position - 01
02 -> Keying Position - 02
03 -> Keying Position - 03
04 -> Keying Position - 04
05 -> Keying Position - 05
06 -> Keying Position - 06
07 -> Keying Position - 07
08 -> Keying Position - 08
09 -> Keying Position - 09
11 -> Keying Position - 11
12 -> Keying Position - 12
13 -> Keying Position - 13
14 -> Keying Position - 14
15 -> Keying Position - 15
16 -> Keying Position - 16
17 -> Keying Position - 17
18 -> Keying Position - 18
19 -> Keying Position - 19
20 -> Keying Position - 20
21 -> Keying Position - 21
22 -> Keying Position - 22
23 -> Keying Position - 23
24 -> Keying Position - 24
25 -> Keying Position - 25
26 -> Keying Position - 26
27 -> Keying Position - 27
28 -> Keying Position - 28
29 -> Keying Position - 29
30 -> Keying Position - 30
31 -> Keying Position - 31
32 -> Keying Position - 32
33 -> Keying Position - 33
34 -> Keying Position - 34
35 -> Keying Position - 35
36 -> Keying Position - 36
37 -> Keying Position - 37
38 -> Keying Position - 38
39 -> Keying Position - 39
40 -> Keying Position - 40
41 -> Keying Position - 41
42 -> Keying Position - 42
43 -> Keying Position - 43
44 -> Keying Position - 44
45 -> Keying Position - 45
46 -> Keying Position - 46
47 -> Keying Position - 47
48 -> Keying Position - 48
49 -> Keying Position - 49
50 -> Keying Position - 50
51 -> Keying Position - 51
52 -> Keying Position - 52
53 -> Keying Position - 53
54 -> Keying Position - 54
55 -> Keying Position - 55
56 -> Keying Position - 56
57 -> Keying Position - 57
58 -> Keying Position - 58
59 -> Keying Position - 59
60 -> Keying Position - 60
61 -> Keying Position - 61
62 -> Keying Position - 62
63 -> Keying Position - 63
64 -> Keying Position - 64
65 -> Keying Position - 65
66 -> Keying Position - 66
67 -> Keying Position - 67
68 -> Keying Position - 68
70 -> Keying Position - 70
Catalog Page: ctr040-F (Rev:J)
