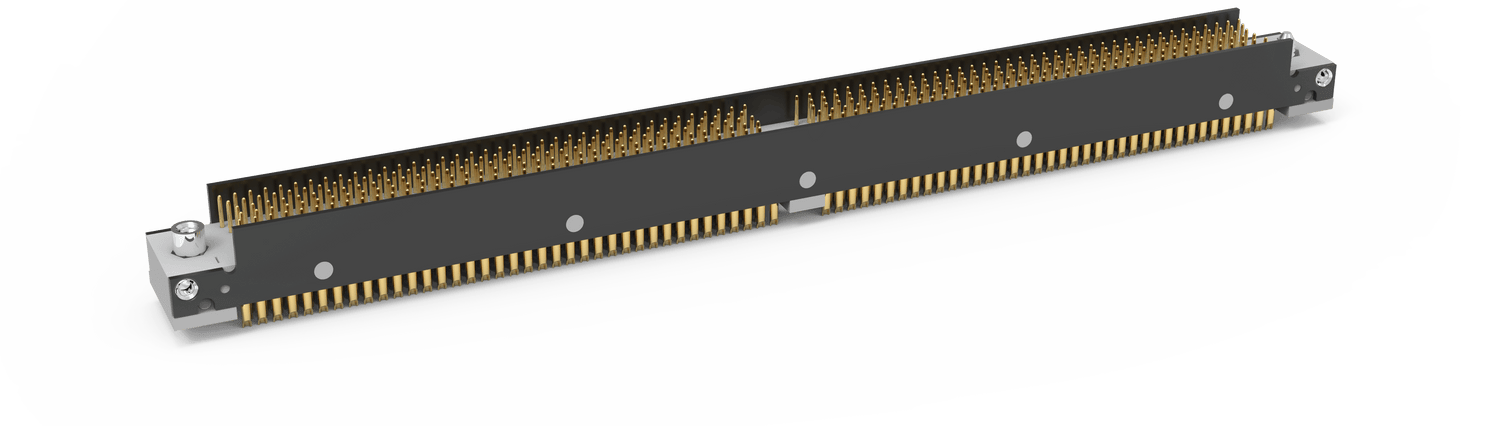

RM612-604-171-9300
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $401.45 | - | - |
| 10 | $269.66 | -- | |
| 25 | $214.96 | -- | |
| 50 | $188.76 | -- | |
| 100 | $165.20 | -- | |
| 250 | $154.09 | -- | |
| 500 | $141.93 | -- | |
| 1,000 | $137.87 | -- |
--
Couldn't load pickup availability
Availability
Availability
Products will ship from AirBorn authorized distributors.
No min order quantity for items in stock.
Out of stock items, while still orderable, will have a min order quantity specified by AirBornStock.com.
Default lead time is eight weeks.
Out of stock items will have lead time specified by AirBornStock.com.
Standard, expedited, and express delivery options are available. See shipping rates.
Datasheets
Datasheets
RM612-604-171-9300
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator
RM -> .075" Screw Machine PC Connectors
Body
Rows
6 -> 6 Rows
Body Style
1 -> Plug, Straight, without Mounting Ears
Body Material
2 -> Polyphenylene sulfide (PPS)
Size
448 -> 448 Contacts
604 -> 604 Contacts
Contacts
Contact Type
17 -> Pin, Straight, Solder Cup
40 -> Pin, Straight, Flex, .093" x .017" dia
51 -> Pin, Straight, Dip Solder, .109" x .018" dia
52 -> Pin, Straight, Dip Solder, .140" x .018" dia
53 -> Pin, Straight, Dip Solder, .172" x .018" dia
54 -> Pin, Straight, Dip Solder, .250" x .018" dia
Plating Options
1 -> Gold Plated Termination
2 -> Pre-Tinned Termination, SnPb alloy
3 -> Pre-Tinned Termination, SAC305 alloy
Hardware
Hardware Style
0256 -> None
82 -> Hex Turning Jackset, Reversed, Installed (.200 knob)
83 -> Fixed Jackset, Reversed, Installed, #2-56 x .247" thd ext
84 -> Fixed Jackset, Reversed, Installed, #2-56 x .320" thd ext
90 -> Guide Pins, Full Round, Installed, #2-56 x .320" thd ext
92 -> Hex Turning Jackset, Installed (.200 knob)
93 -> Fixed Jackset, Installed, #2-56 x .247" thd ext
94 -> Fixed Jackset, Installed, #2-56 x .320" thd ext
95 -> Guide Pins, Polarized, #2-56 x .320" thd ext (Unassembled with Polarization option '00')
99 -> Guide Pins, Universal, Installed, #2-56 x .320" thd ext
Polarization
00 -> None
01 -> Keying Position - 01
02 -> Keying Position - 02
03 -> Keying Position - 03
04 -> Keying Position - 04
05 -> Keying Position - 05
06 -> Keying Position - 06
07 -> Keying Position - 07
08 -> Keying Position - 08
09 -> Keying Position - 09
11 -> Keying Position - 11
12 -> Keying Position - 12
13 -> Keying Position - 13
14 -> Keying Position - 14
15 -> Keying Position - 15
16 -> Keying Position - 16
17 -> Keying Position - 17
18 -> Keying Position - 18
19 -> Keying Position - 19
20 -> Keying Position - 20
21 -> Keying Position - 21
22 -> Keying Position - 22
23 -> Keying Position - 23
24 -> Keying Position - 24
25 -> Keying Position - 25
26 -> Keying Position - 26
27 -> Keying Position - 27
28 -> Keying Position - 28
29 -> Keying Position - 29
30 -> Keying Position - 30
31 -> Keying Position - 31
32 -> Keying Position - 32
33 -> Keying Position - 33
34 -> Keying Position - 34
35 -> Keying Position - 35
36 -> Keying Position - 36
Catalog Page: ctr066-M (Rev:K)
