JRH Electronics | SKU: WGKA104SAJTC

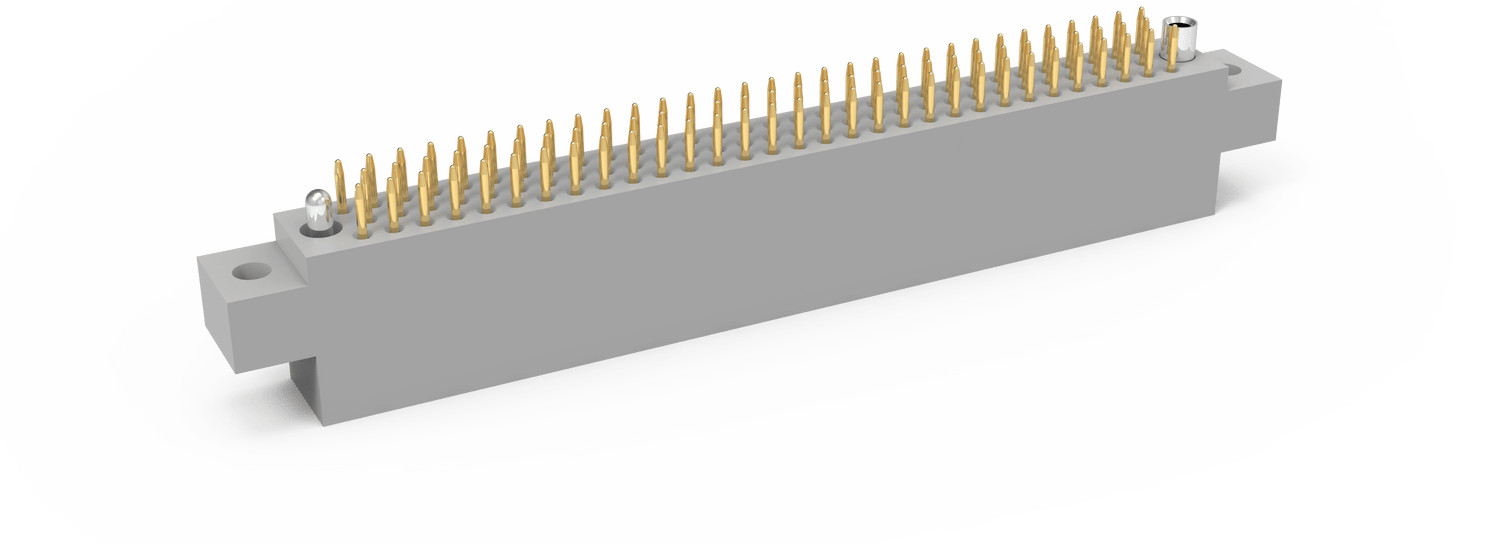

WGKA104SAJTC

Qty	Price (USD)	Discount	Ext. Price (USD)
1	$449.08	-	-
10	$323.33	--
25	$255.99	--
50	$211.08	--
100	$179.62	--
250	$148.19	--
500	$134.71	--
1,000	$130.23	--

--

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Availability

Products will ship from JRH Electronics, an AirBorn authorized distributor.

Minimum order quantity for all products is seven (7).

Lead time is 6-8 weeks.

Standard, expedited, and express delivery options are available. See shipping rates.

Datasheets

Part Number Buildup

Dimensional Information

Hardware Details (pg 1)

Hardware Details (pg 2)

Hardware Details (pg 3)

Performance Specification

Materials Specification

Hardware Polarization

Contact Types

Gender

Receptacle - Female

# Positions

104

Pitch: .100" (2.54mm)

# Rows

Rows

Orientation

Vertical - Straight

Termination

Crimp

RoHS?

Yes

AirBorn Catalog Page

Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.

Series Designator

WGKA -> Receptacle, Straight, Crimp Removable, With Mounting Ears

Size

50 -> 50

62 -> 62

80 -> 80

92 -> 92

104 -> 104

Contacts

Contact Type

S -> Socket, Straight, Crimp Removable, 22 AWG

SA -> Socket, Straight, Crimp Removable, 22 AWG

P -> Pin, Straight, Crimp Removable, 22 AWG

Hardware

SY -> Guide Set

SY-1 -> Guide Set, Polarized/Keyed (orientation# 1)

SY-2 -> Guide Set, Polarized/Keyed (orientation# 2)

SY-3 -> Guide Set, Polarized/Keyed (orientation# 3)

SY-4 -> Guide Set, Polarized/Keyed (orientation# 4)

SY-5 -> Guide Set, Polarized/Keyed (orientation# 5)

SY-6 -> Guide Set, Polarized/Keyed (orientation# 6)

SY-7 -> Guide Set, Polarized/Keyed (orientation# 7)

SY-8 -> Guide Set, Polarized/Keyed (orientation# 8)

SY-9 -> Guide Set, Polarized/Keyed (orientation# 9)

SY-10 -> Guide Set, Polarized/Keyed (orientation# 10)

SY-11 -> Guide Set, Polarized/Keyed (orientation# 11)

SY-12 -> Guide Set, Polarized/Keyed (orientation# 12)

SY-13 -> Guide Set, Polarized/Keyed (orientation# 13)

SY-14 -> Guide Set, Polarized/Keyed (orientation# 14)

SY-15 -> Guide Set, Polarized/Keyed (orientation# 15)

SY-16 -> Guide Set, Polarized/Keyed (orientation# 16)

SY-17 -> Guide Set, Polarized/Keyed (orientation# 17)

SY-18 -> Guide Set, Polarized/Keyed (orientation# 18)

SY-19 -> Guide Set, Polarized/Keyed (orientation# 19)

SY-20 -> Guide Set, Polarized/Keyed (orientation# 20)

SY-21 -> Guide Set, Polarized/Keyed (orientation# 21)

SY-22 -> Guide Set, Polarized/Keyed (orientation# 22)

SY-23 -> Guide Set, Polarized/Keyed (orientation# 23)

SY-24 -> Guide Set, Polarized/Keyed (orientation# 24)

SY-25 -> Guide Set, Polarized/Keyed (orientation# 25)

SY-26 -> Guide Set, Polarized/Keyed (orientation# 26)

SY-27 -> Guide Set, Polarized/Keyed (orientation# 27)

SY-28 -> Guide Set, Polarized/Keyed (orientation# 28)

SY-29 -> Guide Set, Polarized/Keyed (orientation# 29)

SY-30 -> Guide Set, Polarized/Keyed (orientation# 30)

SY-31 -> Guide Set, Polarized/Keyed (orientation# 31)

SY-32 -> Guide Set, Polarized/Keyed (orientation# 32)

SY-33 -> Guide Set, Polarized/Keyed (orientation# 33)

SY-34 -> Guide Set, Polarized/Keyed (orientation# 34)

SY-35 -> Guide Set, Polarized/Keyed (orientation# 35)

SY-36 -> Guide Set, Polarized/Keyed (orientation# 36)

SY-37 -> Guide Set, Polarized/Keyed (orientation# 37)

SY-38 -> Guide Set, Polarized/Keyed (orientation# 38)

SY-39 -> Guide Set, Polarized/Keyed (orientation# 39)

SY-40 -> Guide Set, Polarized/Keyed (orientation# 40)

SY-41 -> Guide Set, Polarized/Keyed (orientation# 41)

SY-42 -> Guide Set, Polarized/Keyed (orientation# 42)

SY-43 -> Guide Set, Polarized/Keyed (orientation# 43)

SY-44 -> Guide Set, Polarized/Keyed (orientation# 44)

SY-45 -> Guide Set, Polarized/Keyed (orientation# 45)

SY-46 -> Guide Set, Polarized/Keyed (orientation# 46)

SY-47 -> Guide Set, Polarized/Keyed (orientation# 47)

SY-48 -> Guide Set, Polarized/Keyed (orientation# 48)

SY-49 -> Guide Set, Polarized/Keyed (orientation# 49)

SY-50 -> Guide Set, Polarized/Keyed (orientation# 50)

SY-51 -> Guide Set, Polarized/Keyed (orientation# 51)

SY-52 -> Guide Set, Polarized/Keyed (orientation# 52)

SY-53 -> Guide Set, Polarized/Keyed (orientation# 53)

SY-54 -> Guide Set, Polarized/Keyed (orientation# 54)

SY-55 -> Guide Set, Polarized/Keyed (orientation# 55)

SY-56 -> Guide Set, Polarized/Keyed (orientation# 56)

SY-57 -> Guide Set, Polarized/Keyed (orientation# 57)

SY-58 -> Guide Set, Polarized/Keyed (orientation# 58)

SY-59 -> Guide Set, Polarized/Keyed (orientation# 59)

SY-60 -> Guide Set, Polarized/Keyed (orientation# 60)

SY-61 -> Guide Set, Polarized/Keyed (orientation# 61)

SY-62 -> Guide Set, Polarized/Keyed (orientation# 62)

SY-63 -> Guide Set, Polarized/Keyed (orientation# 63)

SY-64 -> Guide Set, Polarized/Keyed (orientation# 64)

SYL -> Guide Set, Long

SYL-1 -> Guide Set, Long, Polarized/Keyed (orientation# 1)

SYL-2 -> Guide Set, Long, Polarized/Keyed (orientation# 2)

SYL-3 -> Guide Set, Long, Polarized/Keyed (orientation# 3)

SYL-4 -> Guide Set, Long, Polarized/Keyed (orientation# 4)

SYL-5 -> Guide Set, Long, Polarized/Keyed (orientation# 5)

SYL-6 -> Guide Set, Long, Polarized/Keyed (orientation# 6)

SYL-7 -> Guide Set, Long, Polarized/Keyed (orientation# 7)

SYL-8 -> Guide Set, Long, Polarized/Keyed (orientation# 8)

SYL-9 -> Guide Set, Long, Polarized/Keyed (orientation# 9)

SYL-10 -> Guide Set, Long, Polarized/Keyed (orientation# 10)

SYL-11 -> Guide Set, Long, Polarized/Keyed (orientation# 11)

SYL-12 -> Guide Set, Long, Polarized/Keyed (orientation# 12)

SYL-13 -> Guide Set, Long, Polarized/Keyed (orientation# 13)

SYL-14 -> Guide Set, Long, Polarized/Keyed (orientation# 14)

SYL-15 -> Guide Set, Long, Polarized/Keyed (orientation# 15)

SYL-16 -> Guide Set, Long, Polarized/Keyed (orientation# 16)

SYL-17 -> Guide Set, Long, Polarized/Keyed (orientation# 17)

SYL-18 -> Guide Set, Long, Polarized/Keyed (orientation# 18)

SYL-19 -> Guide Set, Long, Polarized/Keyed (orientation# 19)

SYL-20 -> Guide Set, Long, Polarized/Keyed (orientation# 20)

SYL-21 -> Guide Set, Long, Polarized/Keyed (orientation# 21)

SYL-22 -> Guide Set, Long, Polarized/Keyed (orientation# 22)

SYL-23 -> Guide Set, Long, Polarized/Keyed (orientation# 23)

SYL-24 -> Guide Set, Long, Polarized/Keyed (orientation# 24)

SYL-25 -> Guide Set, Long, Polarized/Keyed (orientation# 25)

SYL-26 -> Guide Set, Long, Polarized/Keyed (orientation# 26)

SYL-27 -> Guide Set, Long, Polarized/Keyed (orientation# 27)

SYL-28 -> Guide Set, Long, Polarized/Keyed (orientation# 28)

SYL-29 -> Guide Set, Long, Polarized/Keyed (orientation# 29)

SYL-30 -> Guide Set, Long, Polarized/Keyed (orientation# 30)

SYL-31 -> Guide Set, Long, Polarized/Keyed (orientation# 31)

SYL-32 -> Guide Set, Long, Polarized/Keyed (orientation# 32)

SYL-33 -> Guide Set, Long, Polarized/Keyed (orientation# 33)

SYL-34 -> Guide Set, Long, Polarized/Keyed (orientation# 34)

SYL-35 -> Guide Set, Long, Polarized/Keyed (orientation# 35)

SYL-36 -> Guide Set, Long, Polarized/Keyed (orientation# 36)

SYL-37 -> Guide Set, Long, Polarized/Keyed (orientation# 37)

SYL-38 -> Guide Set, Long, Polarized/Keyed (orientation# 38)

SYL-39 -> Guide Set, Long, Polarized/Keyed (orientation# 39)

SYL-40 -> Guide Set, Long, Polarized/Keyed (orientation# 40)

SYL-41 -> Guide Set, Long, Polarized/Keyed (orientation# 41)

SYL-42 -> Guide Set, Long, Polarized/Keyed (orientation# 42)

SYL-43 -> Guide Set, Long, Polarized/Keyed (orientation# 43)

SYL-44 -> Guide Set, Long, Polarized/Keyed (orientation# 44)

SYL-45 -> Guide Set, Long, Polarized/Keyed (orientation# 45)

SYL-46 -> Guide Set, Long, Polarized/Keyed (orientation# 46)

SYL-47 -> Guide Set, Long, Polarized/Keyed (orientation# 47)

SYL-48 -> Guide Set, Long, Polarized/Keyed (orientation# 48)

SYL-49 -> Guide Set, Long, Polarized/Keyed (orientation# 49)

SYL-50 -> Guide Set, Long, Polarized/Keyed (orientation# 50)

SYL-51 -> Guide Set, Long, Polarized/Keyed (orientation# 51)

SYL-52 -> Guide Set, Long, Polarized/Keyed (orientation# 52)

SYL-53 -> Guide Set, Long, Polarized/Keyed (orientation# 53)

SYL-54 -> Guide Set, Long, Polarized/Keyed (orientation# 54)

SYL-55 -> Guide Set, Long, Polarized/Keyed (orientation# 55)

SYL-56 -> Guide Set, Long, Polarized/Keyed (orientation# 56)

SYL-57 -> Guide Set, Long, Polarized/Keyed (orientation# 57)

SYL-58 -> Guide Set, Long, Polarized/Keyed (orientation# 58)

SYL-59 -> Guide Set, Long, Polarized/Keyed (orientation# 59)

SYL-60 -> Guide Set, Long, Polarized/Keyed (orientation# 60)

SYL-61 -> Guide Set, Long, Polarized/Keyed (orientation# 61)

SYL-62 -> Guide Set, Long, Polarized/Keyed (orientation# 62)

SYL-63 -> Guide Set, Long, Polarized/Keyed (orientation# 63)

SYL-64 -> Guide Set, Long, Polarized/Keyed (orientation# 64)

JT -> Turning Jackset, .435"

JTA -> Turning Jackset, .135"

JTB -> Hex Turning Jackset, .135"

JTC -> Hex Turning Jackset, .435"

JTL -> Turning Jackset, Long, .635"

Options

A53 -> Socket, straight, crimp removable 20 AWG.

C45 -> Additional .075" material at termination face for strain relief of crimped wires (22 AWG only).

Catalog Page: ctw098-F (Rev:D)
