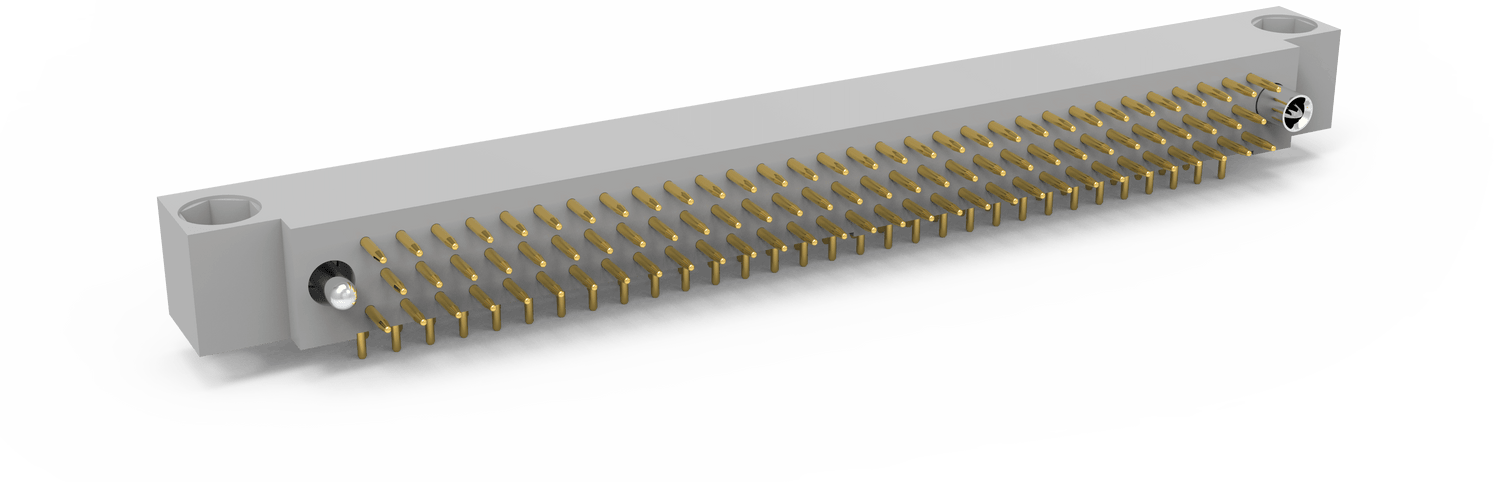

WG104PR7JTC
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $287.08 | - | - |
| 10 | $206.69 | -- | |
| 25 | $163.64 | -- | |
| 50 | $134.94 | -- | |
| 100 | $114.82 | -- | |
| 250 | $94.73 | -- | |
| 500 | $86.12 | -- | |
| 1,000 | $32.95 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Products will ship from JRH Electronics, an AirBorn authorized distributor.
Minimum order quantity for all products is seven (7).
Lead time is 6-8 weeks.
Standard, expedited, and express delivery options are available. See shipping rates.
WG104PR7JTC
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator
WG -> Plug, Right Angle, With Mounting Ears
Size
50 -> 50
62 -> 62
80 -> 80
92 -> 92
104 -> 104
Contacts
Contact Type
PR7 -> Pin, Right Angle, Dip Solder, .109" x .025" dia
PR9 -> Pin, Right Angle, Dip Solder, .140" x .025" dia
PR11 -> Pin, Right Angle, Dip Solder, .172" x .025" dia
PR15 -> Pin, Right Angle, Dip Solder, .234" x .025" dia
PRW34 -> Pin, Right Angle, Wire Wrap, .531"
PRW42 -> Pin, Right Angle, Wire Wrap, .656"
Hardware
SY -> Guide Set
SY-1 -> Guide Set, Polarized/Keyed (orientation# 1)
SY-2 -> Guide Set, Polarized/Keyed (orientation# 2)
SY-3 -> Guide Set, Polarized/Keyed (orientation# 3)
SY-4 -> Guide Set, Polarized/Keyed (orientation# 4)
SY-5 -> Guide Set, Polarized/Keyed (orientation# 5)
SY-6 -> Guide Set, Polarized/Keyed (orientation# 6)
SY-7 -> Guide Set, Polarized/Keyed (orientation# 7)
SY-8 -> Guide Set, Polarized/Keyed (orientation# 8)
SY-9 -> Guide Set, Polarized/Keyed (orientation# 9)
SY-10 -> Guide Set, Polarized/Keyed (orientation# 10)
SY-11 -> Guide Set, Polarized/Keyed (orientation# 11)
SY-12 -> Guide Set, Polarized/Keyed (orientation# 12)
SY-13 -> Guide Set, Polarized/Keyed (orientation# 13)
SY-14 -> Guide Set, Polarized/Keyed (orientation# 14)
SY-15 -> Guide Set, Polarized/Keyed (orientation# 15)
SY-16 -> Guide Set, Polarized/Keyed (orientation# 16)
SY-17 -> Guide Set, Polarized/Keyed (orientation# 17)
SY-18 -> Guide Set, Polarized/Keyed (orientation# 18)
SY-19 -> Guide Set, Polarized/Keyed (orientation# 19)
SY-20 -> Guide Set, Polarized/Keyed (orientation# 20)
SY-21 -> Guide Set, Polarized/Keyed (orientation# 21)
SY-22 -> Guide Set, Polarized/Keyed (orientation# 22)
SY-23 -> Guide Set, Polarized/Keyed (orientation# 23)
SY-24 -> Guide Set, Polarized/Keyed (orientation# 24)
SY-25 -> Guide Set, Polarized/Keyed (orientation# 25)
SY-26 -> Guide Set, Polarized/Keyed (orientation# 26)
SY-27 -> Guide Set, Polarized/Keyed (orientation# 27)
SY-28 -> Guide Set, Polarized/Keyed (orientation# 28)
SY-29 -> Guide Set, Polarized/Keyed (orientation# 29)
SY-30 -> Guide Set, Polarized/Keyed (orientation# 30)
SY-31 -> Guide Set, Polarized/Keyed (orientation# 31)
SY-32 -> Guide Set, Polarized/Keyed (orientation# 32)
SY-33 -> Guide Set, Polarized/Keyed (orientation# 33)
SY-34 -> Guide Set, Polarized/Keyed (orientation# 34)
SY-35 -> Guide Set, Polarized/Keyed (orientation# 35)
SY-36 -> Guide Set, Polarized/Keyed (orientation# 36)
SY-37 -> Guide Set, Polarized/Keyed (orientation# 37)
SY-38 -> Guide Set, Polarized/Keyed (orientation# 38)
SY-39 -> Guide Set, Polarized/Keyed (orientation# 39)
SY-40 -> Guide Set, Polarized/Keyed (orientation# 40)
SY-41 -> Guide Set, Polarized/Keyed (orientation# 41)
SY-42 -> Guide Set, Polarized/Keyed (orientation# 42)
SY-43 -> Guide Set, Polarized/Keyed (orientation# 43)
SY-44 -> Guide Set, Polarized/Keyed (orientation# 44)
SY-45 -> Guide Set, Polarized/Keyed (orientation# 45)
SY-46 -> Guide Set, Polarized/Keyed (orientation# 46)
SY-47 -> Guide Set, Polarized/Keyed (orientation# 47)
SY-48 -> Guide Set, Polarized/Keyed (orientation# 48)
SY-49 -> Guide Set, Polarized/Keyed (orientation# 49)
SY-50 -> Guide Set, Polarized/Keyed (orientation# 50)
SY-51 -> Guide Set, Polarized/Keyed (orientation# 51)
SY-52 -> Guide Set, Polarized/Keyed (orientation# 52)
SY-53 -> Guide Set, Polarized/Keyed (orientation# 53)
SY-54 -> Guide Set, Polarized/Keyed (orientation# 54)
SY-55 -> Guide Set, Polarized/Keyed (orientation# 55)
SY-56 -> Guide Set, Polarized/Keyed (orientation# 56)
SY-57 -> Guide Set, Polarized/Keyed (orientation# 57)
SY-58 -> Guide Set, Polarized/Keyed (orientation# 58)
SY-59 -> Guide Set, Polarized/Keyed (orientation# 59)
SY-60 -> Guide Set, Polarized/Keyed (orientation# 60)
SY-61 -> Guide Set, Polarized/Keyed (orientation# 61)
SY-62 -> Guide Set, Polarized/Keyed (orientation# 62)
SY-63 -> Guide Set, Polarized/Keyed (orientation# 63)
SY-64 -> Guide Set, Polarized/Keyed (orientation# 64)
SYL -> Guide Set, Long
SYL-1 -> Guide Set, Long, Polarized/Keyed (orientation# 1)
SYL-2 -> Guide Set, Long, Polarized/Keyed (orientation# 2)
SYL-3 -> Guide Set, Long, Polarized/Keyed (orientation# 3)
SYL-4 -> Guide Set, Long, Polarized/Keyed (orientation# 4)
SYL-5 -> Guide Set, Long, Polarized/Keyed (orientation# 5)
SYL-6 -> Guide Set, Long, Polarized/Keyed (orientation# 6)
SYL-7 -> Guide Set, Long, Polarized/Keyed (orientation# 7)
SYL-8 -> Guide Set, Long, Polarized/Keyed (orientation# 8)
SYL-9 -> Guide Set, Long, Polarized/Keyed (orientation# 9)
SYL-10 -> Guide Set, Long, Polarized/Keyed (orientation# 10)
SYL-11 -> Guide Set, Long, Polarized/Keyed (orientation# 11)
SYL-12 -> Guide Set, Long, Polarized/Keyed (orientation# 12)
SYL-13 -> Guide Set, Long, Polarized/Keyed (orientation# 13)
SYL-14 -> Guide Set, Long, Polarized/Keyed (orientation# 14)
SYL-15 -> Guide Set, Long, Polarized/Keyed (orientation# 15)
SYL-16 -> Guide Set, Long, Polarized/Keyed (orientation# 16)
SYL-17 -> Guide Set, Long, Polarized/Keyed (orientation# 17)
SYL-18 -> Guide Set, Long, Polarized/Keyed (orientation# 18)
SYL-19 -> Guide Set, Long, Polarized/Keyed (orientation# 19)
SYL-20 -> Guide Set, Long, Polarized/Keyed (orientation# 20)
SYL-21 -> Guide Set, Long, Polarized/Keyed (orientation# 21)
SYL-22 -> Guide Set, Long, Polarized/Keyed (orientation# 22)
SYL-23 -> Guide Set, Long, Polarized/Keyed (orientation# 23)
SYL-24 -> Guide Set, Long, Polarized/Keyed (orientation# 24)
SYL-25 -> Guide Set, Long, Polarized/Keyed (orientation# 25)
SYL-26 -> Guide Set, Long, Polarized/Keyed (orientation# 26)
SYL-27 -> Guide Set, Long, Polarized/Keyed (orientation# 27)
SYL-28 -> Guide Set, Long, Polarized/Keyed (orientation# 28)
SYL-29 -> Guide Set, Long, Polarized/Keyed (orientation# 29)
SYL-30 -> Guide Set, Long, Polarized/Keyed (orientation# 30)
SYL-31 -> Guide Set, Long, Polarized/Keyed (orientation# 31)
SYL-32 -> Guide Set, Long, Polarized/Keyed (orientation# 32)
SYL-33 -> Guide Set, Long, Polarized/Keyed (orientation# 33)
SYL-34 -> Guide Set, Long, Polarized/Keyed (orientation# 34)
SYL-35 -> Guide Set, Long, Polarized/Keyed (orientation# 35)
SYL-36 -> Guide Set, Long, Polarized/Keyed (orientation# 36)
SYL-37 -> Guide Set, Long, Polarized/Keyed (orientation# 37)
SYL-38 -> Guide Set, Long, Polarized/Keyed (orientation# 38)
SYL-39 -> Guide Set, Long, Polarized/Keyed (orientation# 39)
SYL-40 -> Guide Set, Long, Polarized/Keyed (orientation# 40)
SYL-41 -> Guide Set, Long, Polarized/Keyed (orientation# 41)
SYL-42 -> Guide Set, Long, Polarized/Keyed (orientation# 42)
SYL-43 -> Guide Set, Long, Polarized/Keyed (orientation# 43)
SYL-44 -> Guide Set, Long, Polarized/Keyed (orientation# 44)
SYL-45 -> Guide Set, Long, Polarized/Keyed (orientation# 45)
SYL-46 -> Guide Set, Long, Polarized/Keyed (orientation# 46)
SYL-47 -> Guide Set, Long, Polarized/Keyed (orientation# 47)
SYL-48 -> Guide Set, Long, Polarized/Keyed (orientation# 48)
SYL-49 -> Guide Set, Long, Polarized/Keyed (orientation# 49)
SYL-50 -> Guide Set, Long, Polarized/Keyed (orientation# 50)
SYL-51 -> Guide Set, Long, Polarized/Keyed (orientation# 51)
SYL-52 -> Guide Set, Long, Polarized/Keyed (orientation# 52)
SYL-53 -> Guide Set, Long, Polarized/Keyed (orientation# 53)
SYL-54 -> Guide Set, Long, Polarized/Keyed (orientation# 54)
SYL-55 -> Guide Set, Long, Polarized/Keyed (orientation# 55)
SYL-56 -> Guide Set, Long, Polarized/Keyed (orientation# 56)
SYL-57 -> Guide Set, Long, Polarized/Keyed (orientation# 57)
SYL-58 -> Guide Set, Long, Polarized/Keyed (orientation# 58)
SYL-59 -> Guide Set, Long, Polarized/Keyed (orientation# 59)
SYL-60 -> Guide Set, Long, Polarized/Keyed (orientation# 60)
SYL-61 -> Guide Set, Long, Polarized/Keyed (orientation# 61)
SYL-62 -> Guide Set, Long, Polarized/Keyed (orientation# 62)
SYL-63 -> Guide Set, Long, Polarized/Keyed (orientation# 63)
SYL-64 -> Guide Set, Long, Polarized/Keyed (orientation# 64)
JT -> Turning Jackset, .435"
JTA -> Turning Jackset, .135"
JTB -> Hex Turning Jackset, .135"
JTC -> Hex Turning Jackset, .435"
JTL -> Turning Jackset, Long, .635"
Options
443 -> Polarizing pin installed in contact position noted by dash number (ex. WT10PC443-1).
444 -> Conact position noted by the dash number is left open (to mate with 443).
478 -> Drill mating side hole diameter designated by dash number.
515 -> Polarizing pin installed in contact position noted by dash number.
548 -> Bond #4-40 small pattern nut into mounting holes (for right angle plug only)/
A53 -> Socket, straight, crimp removable, 20 AWG.
C45 -> Additional .075" material at termination face for strain relief of crimped wires (22 AWG only).
F68 -> Combine C45 and 515 special codes.
Catalog Page: ctw044-M (Rev:D)
