WG92SACJTC

AirBorn Catalog Page

Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.

Search Search

Series Designator

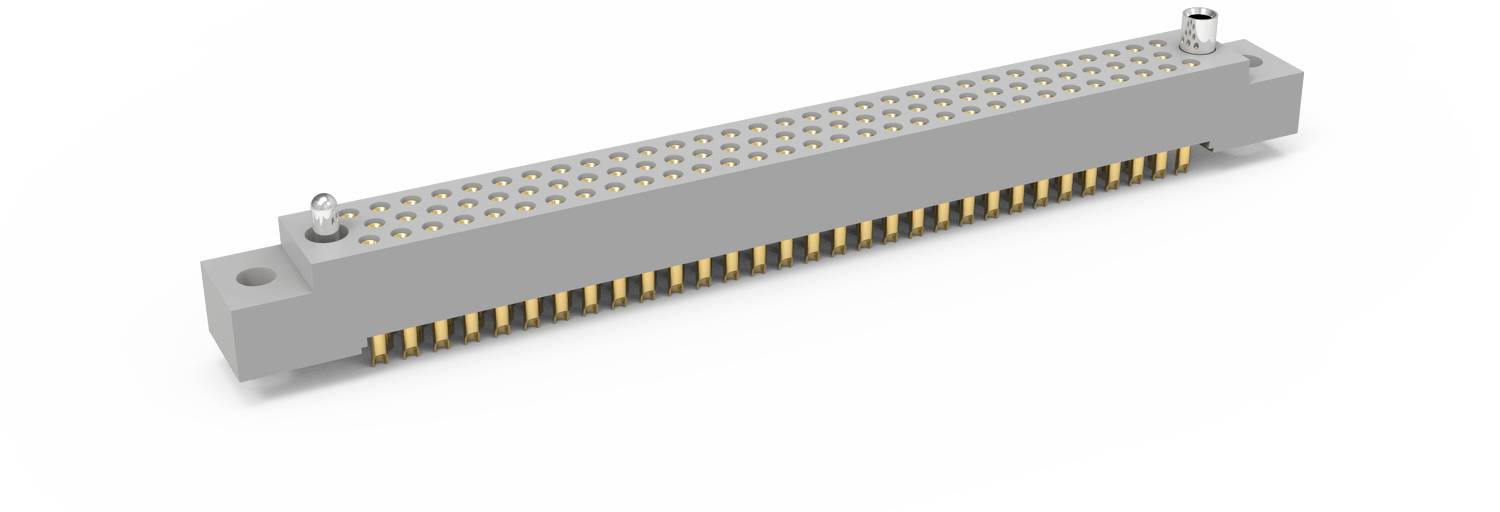

WG -> Receptacle, Straight or Right Angle, With Mounting Ears

Size

50 -> 50

62 -> 62

80 -> 80

92 -> 92

104 -> 104

Contacts

Contact Type

SAC -> Socket, Straight, Solder Cup (.035" I.D.)

SAD7 -> Socket, Straight, Dip Solder, .109" x .027" dia

SAD9 -> Socket, Straight, Dip Solder, .140" x .027" dia

SAD11 -> Socket, Straight, Dip Solder, .172" x .027" dia

SAF3 -> Socket, Straight, Flex Circuit, .050"

SAF6 -> Socket, Straight, Flex Circuit, .093"

SAF9 -> Socket, Straight, Flex Circuit, .140"

SAG7 -> Socket, Straight, Dip Solder, .109" x .018" dia

SAG9 -> Socket, Straight, Dip Solder, .140" x .018" dia

SAG11 -> Socket, Straight, Dip Solder, .172" x .018" dia

SAP -> Socket, Straight, Pin Termination, .150" (connector saver)

SAW24 -> Socket, Straight, Wire Wrap, .375"

SAW40 -> Socket, Straight, Wire Wrap, .625"

SOR7 -> Socket, Right Angle, Dip Solder, .109" x .025" dia

SOR9 -> Socket, Right Angle, Dip Solder, .140" x .025" dia

SOR11 -> Socket, Right Angle, Dip Solder, .172" x .025" dia

Hardware

SY -> Guide Set

SY-1 -> Guide Set, Polarized/Keyed (orientation# 1)

SY-2 -> Guide Set, Polarized/Keyed (orientation# 2)

SY-3 -> Guide Set, Polarized/Keyed (orientation# 3)

SY-4 -> Guide Set, Polarized/Keyed (orientation# 4)

SY-5 -> Guide Set, Polarized/Keyed (orientation# 5)

SY-6 -> Guide Set, Polarized/Keyed (orientation# 6)

SY-7 -> Guide Set, Polarized/Keyed (orientation# 7)

SY-8 -> Guide Set, Polarized/Keyed (orientation# 8)

SY-9 -> Guide Set, Polarized/Keyed (orientation# 9)

SY-10 -> Guide Set, Polarized/Keyed (orientation# 10)

SY-11 -> Guide Set, Polarized/Keyed (orientation# 11)

SY-12 -> Guide Set, Polarized/Keyed (orientation# 12)

SY-13 -> Guide Set, Polarized/Keyed (orientation# 13)

SY-14 -> Guide Set, Polarized/Keyed (orientation# 14)

SY-15 -> Guide Set, Polarized/Keyed (orientation# 15)

SY-16 -> Guide Set, Polarized/Keyed (orientation# 16)

SY-17 -> Guide Set, Polarized/Keyed (orientation# 17)

SY-18 -> Guide Set, Polarized/Keyed (orientation# 18)

SY-19 -> Guide Set, Polarized/Keyed (orientation# 19)

SY-20 -> Guide Set, Polarized/Keyed (orientation# 20)

SY-21 -> Guide Set, Polarized/Keyed (orientation# 21)

SY-22 -> Guide Set, Polarized/Keyed (orientation# 22)

SY-23 -> Guide Set, Polarized/Keyed (orientation# 23)

SY-24 -> Guide Set, Polarized/Keyed (orientation# 24)

SY-25 -> Guide Set, Polarized/Keyed (orientation# 25)

SY-26 -> Guide Set, Polarized/Keyed (orientation# 26)

SY-27 -> Guide Set, Polarized/Keyed (orientation# 27)

SY-28 -> Guide Set, Polarized/Keyed (orientation# 28)

SY-29 -> Guide Set, Polarized/Keyed (orientation# 29)

SY-30 -> Guide Set, Polarized/Keyed (orientation# 30)

SY-31 -> Guide Set, Polarized/Keyed (orientation# 31)

SY-32 -> Guide Set, Polarized/Keyed (orientation# 32)

SY-33 -> Guide Set, Polarized/Keyed (orientation# 33)

SY-34 -> Guide Set, Polarized/Keyed (orientation# 34)

SY-35 -> Guide Set, Polarized/Keyed (orientation# 35)

SY-36 -> Guide Set, Polarized/Keyed (orientation# 36)

SY-37 -> Guide Set, Polarized/Keyed (orientation# 37)

SY-38 -> Guide Set, Polarized/Keyed (orientation# 38)

SY-39 -> Guide Set, Polarized/Keyed (orientation# 39)

SY-40 -> Guide Set, Polarized/Keyed (orientation# 40)

SY-41 -> Guide Set, Polarized/Keyed (orientation# 41)

SY-42 -> Guide Set, Polarized/Keyed (orientation# 42)

SY-43 -> Guide Set, Polarized/Keyed (orientation# 43)

SY-44 -> Guide Set, Polarized/Keyed (orientation# 44)

SY-45 -> Guide Set, Polarized/Keyed (orientation# 45)

SY-46 -> Guide Set, Polarized/Keyed (orientation# 46)

SY-47 -> Guide Set, Polarized/Keyed (orientation# 47)

SY-48 -> Guide Set, Polarized/Keyed (orientation# 48)

SY-49 -> Guide Set, Polarized/Keyed (orientation# 49)

SY-50 -> Guide Set, Polarized/Keyed (orientation# 50)

SY-51 -> Guide Set, Polarized/Keyed (orientation# 51)

SY-52 -> Guide Set, Polarized/Keyed (orientation# 52)

SY-53 -> Guide Set, Polarized/Keyed (orientation# 53)

SY-54 -> Guide Set, Polarized/Keyed (orientation# 54)

SY-55 -> Guide Set, Polarized/Keyed (orientation# 55)

SY-56 -> Guide Set, Polarized/Keyed (orientation# 56)

SY-57 -> Guide Set, Polarized/Keyed (orientation# 57)

SY-58 -> Guide Set, Polarized/Keyed (orientation# 58)

SY-59 -> Guide Set, Polarized/Keyed (orientation# 59)

SY-60 -> Guide Set, Polarized/Keyed (orientation# 60)

SY-61 -> Guide Set, Polarized/Keyed (orientation# 61)

SY-62 -> Guide Set, Polarized/Keyed (orientation# 62)

SY-63 -> Guide Set, Polarized/Keyed (orientation# 63)

SY-64 -> Guide Set, Polarized/Keyed (orientation# 64)

SYL -> Guide Set, Long

SYL-1 -> Guide Set, Long, Polarized/Keyed (orientation# 1)

SYL-2 -> Guide Set, Long, Polarized/Keyed (orientation# 2)

SYL-3 -> Guide Set, Long, Polarized/Keyed (orientation# 3)

SYL-4 -> Guide Set, Long, Polarized/Keyed (orientation# 4)

SYL-5 -> Guide Set, Long, Polarized/Keyed (orientation# 5)

SYL-6 -> Guide Set, Long, Polarized/Keyed (orientation# 6)

SYL-7 -> Guide Set, Long, Polarized/Keyed (orientation# 7)

SYL-8 -> Guide Set, Long, Polarized/Keyed (orientation# 8)

SYL-9 -> Guide Set, Long, Polarized/Keyed (orientation# 9)

SYL-10 -> Guide Set, Long, Polarized/Keyed (orientation# 10)

SYL-11 -> Guide Set, Long, Polarized/Keyed (orientation# 11)

SYL-12 -> Guide Set, Long, Polarized/Keyed (orientation# 12)

SYL-13 -> Guide Set, Long, Polarized/Keyed (orientation# 13)

SYL-14 -> Guide Set, Long, Polarized/Keyed (orientation# 14)

SYL-15 -> Guide Set, Long, Polarized/Keyed (orientation# 15)

SYL-16 -> Guide Set, Long, Polarized/Keyed (orientation# 16)

SYL-17 -> Guide Set, Long, Polarized/Keyed (orientation# 17)

SYL-18 -> Guide Set, Long, Polarized/Keyed (orientation# 18)

SYL-19 -> Guide Set, Long, Polarized/Keyed (orientation# 19)

SYL-20 -> Guide Set, Long, Polarized/Keyed (orientation# 20)

SYL-21 -> Guide Set, Long, Polarized/Keyed (orientation# 21)

SYL-22 -> Guide Set, Long, Polarized/Keyed (orientation# 22)

SYL-23 -> Guide Set, Long, Polarized/Keyed (orientation# 23)

SYL-24 -> Guide Set, Long, Polarized/Keyed (orientation# 24)

SYL-25 -> Guide Set, Long, Polarized/Keyed (orientation# 25)

SYL-26 -> Guide Set, Long, Polarized/Keyed (orientation# 26)

SYL-27 -> Guide Set, Long, Polarized/Keyed (orientation# 27)

SYL-28 -> Guide Set, Long, Polarized/Keyed (orientation# 28)

SYL-29 -> Guide Set, Long, Polarized/Keyed (orientation# 29)

SYL-30 -> Guide Set, Long, Polarized/Keyed (orientation# 30)

SYL-31 -> Guide Set, Long, Polarized/Keyed (orientation# 31)

SYL-32 -> Guide Set, Long, Polarized/Keyed (orientation# 32)

SYL-33 -> Guide Set, Long, Polarized/Keyed (orientation# 33)

SYL-34 -> Guide Set, Long, Polarized/Keyed (orientation# 34)

SYL-35 -> Guide Set, Long, Polarized/Keyed (orientation# 35)

SYL-36 -> Guide Set, Long, Polarized/Keyed (orientation# 36)

SYL-37 -> Guide Set, Long, Polarized/Keyed (orientation# 37)

SYL-38 -> Guide Set, Long, Polarized/Keyed (orientation# 38)

SYL-39 -> Guide Set, Long, Polarized/Keyed (orientation# 39)

SYL-40 -> Guide Set, Long, Polarized/Keyed (orientation# 40)

SYL-41 -> Guide Set, Long, Polarized/Keyed (orientation# 41)

SYL-42 -> Guide Set, Long, Polarized/Keyed (orientation# 42)

SYL-43 -> Guide Set, Long, Polarized/Keyed (orientation# 43)

SYL-44 -> Guide Set, Long, Polarized/Keyed (orientation# 44)

SYL-45 -> Guide Set, Long, Polarized/Keyed (orientation# 45)

SYL-46 -> Guide Set, Long, Polarized/Keyed (orientation# 46)

SYL-47 -> Guide Set, Long, Polarized/Keyed (orientation# 47)

SYL-48 -> Guide Set, Long, Polarized/Keyed (orientation# 48)

SYL-49 -> Guide Set, Long, Polarized/Keyed (orientation# 49)

SYL-50 -> Guide Set, Long, Polarized/Keyed (orientation# 50)

SYL-51 -> Guide Set, Long, Polarized/Keyed (orientation# 51)

SYL-52 -> Guide Set, Long, Polarized/Keyed (orientation# 52)

SYL-53 -> Guide Set, Long, Polarized/Keyed (orientation# 53)

SYL-54 -> Guide Set, Long, Polarized/Keyed (orientation# 54)

SYL-55 -> Guide Set, Long, Polarized/Keyed (orientation# 55)

SYL-56 -> Guide Set, Long, Polarized/Keyed (orientation# 56)

SYL-57 -> Guide Set, Long, Polarized/Keyed (orientation# 57)

SYL-58 -> Guide Set, Long, Polarized/Keyed (orientation# 58)

SYL-59 -> Guide Set, Long, Polarized/Keyed (orientation# 59)

SYL-60 -> Guide Set, Long, Polarized/Keyed (orientation# 60)

SYL-61 -> Guide Set, Long, Polarized/Keyed (orientation# 61)

SYL-62 -> Guide Set, Long, Polarized/Keyed (orientation# 62)

SYL-63 -> Guide Set, Long, Polarized/Keyed (orientation# 63)

SYL-64 -> Guide Set, Long, Polarized/Keyed (orientation# 64)

JT -> Turning Jackset, .435"

JTA -> Turning Jackset, .135"

JTB -> Hex Turning Jackset, .135"

JTC -> Hex Turning Jackset, .435"

JTL -> Turning Jackset, Long, .635"

Options

342 -> Remove mounting ears (.250" each end)

D01 -> Pretinned contact terminations with 63/37 or 60/40 solder (Not RoHS Compliant).

P39 -> Pretinned contact terminations with SAC305 solder (lead free).

G69 -> Solder cups fixed in an outward orientation (otherwise contacts will rotate).
