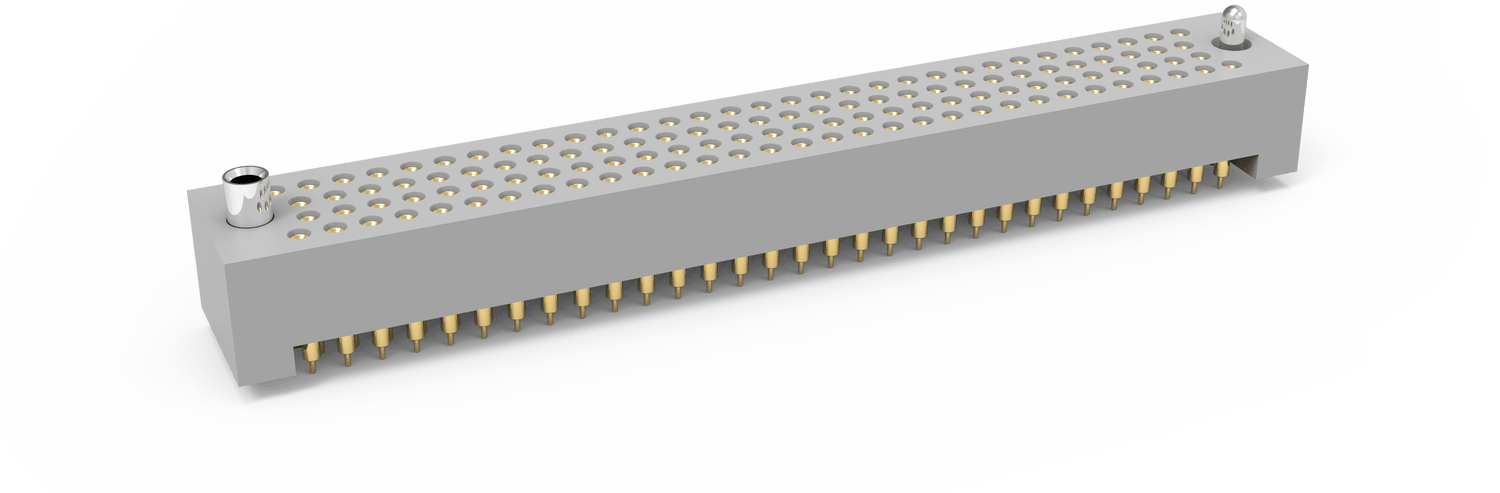

WRD122SACSY
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $520.10 | - | - |
| 10 | $374.46 | -- | |
| 25 | $296.47 | -- | |
| 50 | $244.47 | -- | |
| 100 | $208.02 | -- | |
| 250 | $171.62 | -- | |
| 500 | $156.02 | -- | |
| 1,000 | $150.83 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Products will ship from JRH Electronics, an AirBorn authorized distributor.
Minimum order quantity for all products is seven (7).
Lead time is 6-8 weeks.
Standard, expedited, and express delivery options are available. See shipping rates.
WRD122SACSY
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator
WRD -> Receptacle, Straight or Right Angle, Without Mounting Ears
Size
122 -> 122
Contacts
Contact Type
SAC -> Socket, Straight, Solder Cup (.035"I.D.)
SAD7 -> Socket, Straight, Dip Solder, .109" x .027" dia
SAD9 -> Socket, Straight, Dip Solder, .140" x .027" dia
SAD11 -> Socket, Straight, Dip Solder, .172" x .027" dia
SAD15 -> Socket, Straight, Dip Solder, .234" x .027" dia
SAF3 -> Socket, Straight, Flex Circuit, .050"
SAF6 -> Socket, Straight, Flex Circuit, .093"
SAG7 -> Socket, Straight, Dip Solder, .109" x .018" dia
SAG9 -> Socket, Straight, Dip Solder, .140" x .018" dia
SAG11 -> Socket, Straight, Dip Solder, .172" x .018" dia
SAP -> Socket, Straight, Pin Termination, .150", Connector Saver
SOR9 -> Socket, Right Angle, Dip Solder, .140"
Hardware
J -> Fixed Jackset
JTA -> Turning Jackset, .160"
JTB -> Hex Turning Jackset, .160"
JTL -> Long Turning Jackset, .640"
SY -> Guide Set
SY-1 -> Guide Set, Polarized/Keyed (orientation# 1)
SY-2 -> Guide Set, Polarized/Keyed (orientation# 2)
SY-3 -> Guide Set, Polarized/Keyed (orientation# 3)
SY-4 -> Guide Set, Polarized/Keyed (orientation# 4)
SY-5 -> Guide Set, Polarized/Keyed (orientation# 5)
SY-6 -> Guide Set, Polarized/Keyed (orientation# 6)
SY-7 -> Guide Set, Polarized/Keyed (orientation# 7)
SY-8 -> Guide Set, Polarized/Keyed (orientation# 8)
SY-9 -> Guide Set, Polarized/Keyed (orientation# 9)
SY-10 -> Guide Set, Polarized/Keyed (orientation# 10)
SY-11 -> Guide Set, Polarized/Keyed (orientation# 11)
SY-12 -> Guide Set, Polarized/Keyed (orientation# 12)
SY-13 -> Guide Set, Polarized/Keyed (orientation# 13)
SY-14 -> Guide Set, Polarized/Keyed (orientation# 14)
SY-15 -> Guide Set, Polarized/Keyed (orientation# 15)
SY-16 -> Guide Set, Polarized/Keyed (orientation# 16)
SY-17 -> Guide Set, Polarized/Keyed (orientation# 17)
SY-18 -> Guide Set, Polarized/Keyed (orientation# 18)
SY-19 -> Guide Set, Polarized/Keyed (orientation# 19)
SY-20 -> Guide Set, Polarized/Keyed (orientation# 20)
SY-21 -> Guide Set, Polarized/Keyed (orientation# 21)
SY-22 -> Guide Set, Polarized/Keyed (orientation# 22)
SY-23 -> Guide Set, Polarized/Keyed (orientation# 23)
SY-24 -> Guide Set, Polarized/Keyed (orientation# 24)
SY-25 -> Guide Set, Polarized/Keyed (orientation# 25)
SY-26 -> Guide Set, Polarized/Keyed (orientation# 26)
SY-27 -> Guide Set, Polarized/Keyed (orientation# 27)
SY-28 -> Guide Set, Polarized/Keyed (orientation# 28)
SY-29 -> Guide Set, Polarized/Keyed (orientation# 29)
SY-30 -> Guide Set, Polarized/Keyed (orientation# 30)
SY-31 -> Guide Set, Polarized/Keyed (orientation# 31)
SY-32 -> Guide Set, Polarized/Keyed (orientation# 32)
SY-33 -> Guide Set, Polarized/Keyed (orientation# 33)
SY-34 -> Guide Set, Polarized/Keyed (orientation# 34)
SY-35 -> Guide Set, Polarized/Keyed (orientation# 35)
SY-36 -> Guide Set, Polarized/Keyed (orientation# 36)
SY-37 -> Guide Set, Polarized/Keyed (orientation# 37)
SY-38 -> Guide Set, Polarized/Keyed (orientation# 38)
SY-39 -> Guide Set, Polarized/Keyed (orientation# 39)
SY-40 -> Guide Set, Polarized/Keyed (orientation# 40)
SY-41 -> Guide Set, Polarized/Keyed (orientation# 41)
SY-42 -> Guide Set, Polarized/Keyed (orientation# 42)
SY-43 -> Guide Set, Polarized/Keyed (orientation# 43)
SY-44 -> Guide Set, Polarized/Keyed (orientation# 44)
SY-45 -> Guide Set, Polarized/Keyed (orientation# 45)
SY-46 -> Guide Set, Polarized/Keyed (orientation# 46)
SY-47 -> Guide Set, Polarized/Keyed (orientation# 47)
SY-48 -> Guide Set, Polarized/Keyed (orientation# 48)
SY-49 -> Guide Set, Polarized/Keyed (orientation# 49)
SY-50 -> Guide Set, Polarized/Keyed (orientation# 50)
SY-51 -> Guide Set, Polarized/Keyed (orientation# 51)
SY-52 -> Guide Set, Polarized/Keyed (orientation# 52)
SY-53 -> Guide Set, Polarized/Keyed (orientation# 53)
SY-54 -> Guide Set, Polarized/Keyed (orientation# 54)
SY-55 -> Guide Set, Polarized/Keyed (orientation# 55)
SY-56 -> Guide Set, Polarized/Keyed (orientation# 56)
SY-57 -> Guide Set, Polarized/Keyed (orientation# 57)
SY-58 -> Guide Set, Polarized/Keyed (orientation# 58)
SY-59 -> Guide Set, Polarized/Keyed (orientation# 59)
SY-60 -> Guide Set, Polarized/Keyed (orientation# 60)
SY-61 -> Guide Set, Polarized/Keyed (orientation# 61)
SY-62 -> Guide Set, Polarized/Keyed (orientation# 62)
SY-63 -> Guide Set, Polarized/Keyed (orientation# 63)
SY-64 -> Guide Set, Polarized/Keyed (orientation# 64)
Options
B82 -> Termnination face sealed against conformal coating.
D01 -> Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with 63/37 or 60/40 solder.
P39 -> Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with SAC305 solder (lead free).
D54 -> Combine B82 & D01 options
Catalog Page: ctw062-F (Rev:C)
