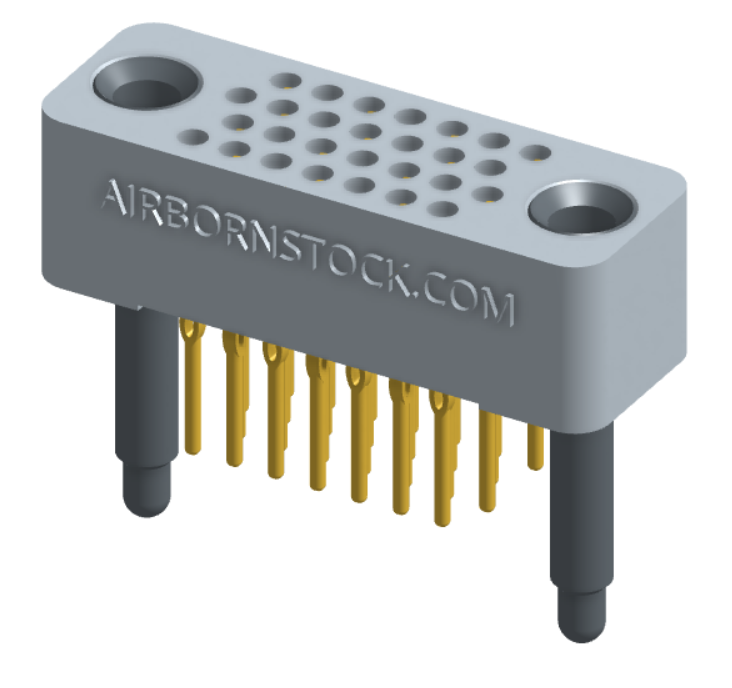

RC422-028-201-39FT
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $219.54 | - | - |
| 10 | $201.98 | -- | |
| 25 | $191.00 | -- | |
| 50 | $175.63 | -- | |
| 100 | $153.68 | -- | |
| 250 | $131.72 | -- | |
| 500 | $109.77 | -- | |
| 1,000 | $76.84 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Products will ship from JRH Electronics, an AirBorn authorized distributor.
Minimum order quantity for all products is seven (7).
Lead time is 6-8 weeks.
Standard, expedited, and express delivery options are available. See shipping rates.
RC422-028-201-39FT
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator

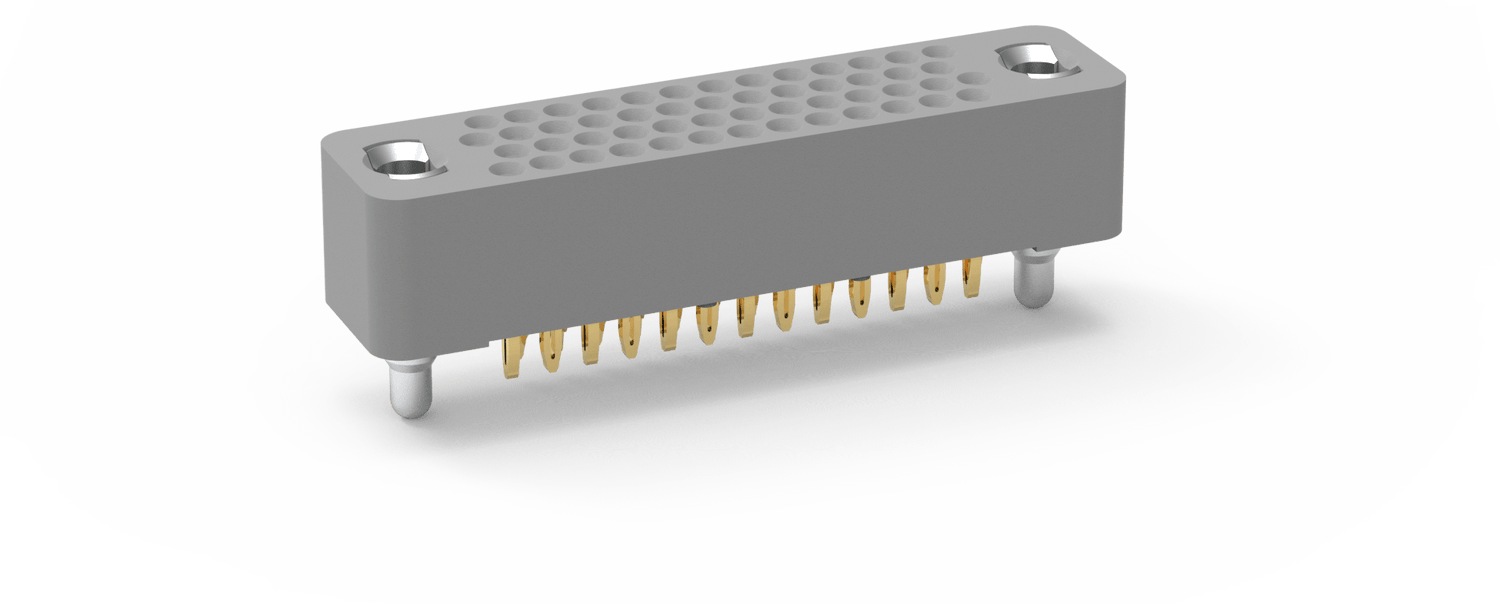

RC422 -> .075" Stackable Compliant Full-Profile Board Mounted Connectors
Configuration
Configuration
028 -> 4 Rows / 7 Columns
052 -> 4 Rows / 13 Columns
076 -> 4 Rows / 19 Columns
100 -> 4 Rows / 25 Columns
128 -> 4 Rows / 32 Columns
152 -> 4 Rows / 38 Columns
200 -> 4 Rows / 50 Columns
252 -> 4 Rows / 63 Columns
300 -> 4 Rows / 75 Columns
Contacts
Contact Type
20 -> Socket, Straight, Press-Fit, Tail .270"
21 -> Socket, Straight, Press-Fit, Tail .300"
22 -> Socket, Straight, Press-Fit, Tail .400"
23 -> Socket, Straight, Press-Fit, Tail .500"
24 -> Socket, Straight, Press-Fit, Tail .700"
25 -> Socket, Straight, Press-Fit, Tail .800"
26 -> Socket, Straight, Press-Fit, Tail .900"
27 -> Socket, Straight, Press-Fit, Tail .600"
28 -> Socket, Straight, Press-Fit, Tail 1.100"
30 -> Socket, Straight, Press-Fit, Tail .270"
31 -> Socket, Straight, Press-Fit, Tail .300"
32 -> Socket, Straight, Press-Fit, Tail .400"
33 -> Socket, Straight, Press-Fit, Tail .500"
34 -> Socket, Straight, Press-Fit, Tail .700"
35 -> Socket, Straight, Press-Fit, Tail .800"
36 -> Socket, Straight, Press-Fit, Tail .900"
37 -> Socket, Straight, Press-Fit, Tail .600"
38 -> Socket, Straight, Press-Fit, Tail 1.000"
Plating Options
1 -> 50μ" Au Contacts
Hardware
Hardware Style
39 -> 0.370" Long (use with #201 contact)
40 -> 0.400" Long (use with #211 contact)
41 -> 0.500" Long (use with #221 contact)
42 -> 0.600" Long (use with #231 contact)
43 -> 0.800" Long (use with #241 contact)
44 -> 0.900" Long (use with #251 contact)
45 -> 1.000" Long (use with #261 contact)
46 -> 0.700" Long (use with #271 contact)
47 -> 1.100" Long (use with #281 contact)
Type
Type
00 -> None
FT -> Female Thread
MT -> Male Thread (#39 hardware, only)
Catalog Page: RC422-PNB-1 (Rev:G)
