JRH Electronics  |  SKU: RC4C2-100-191-57CA

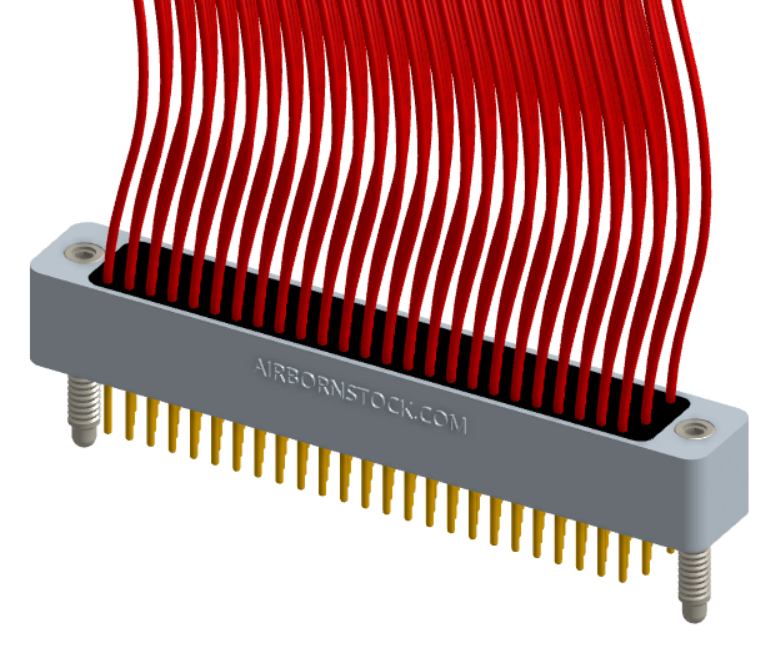

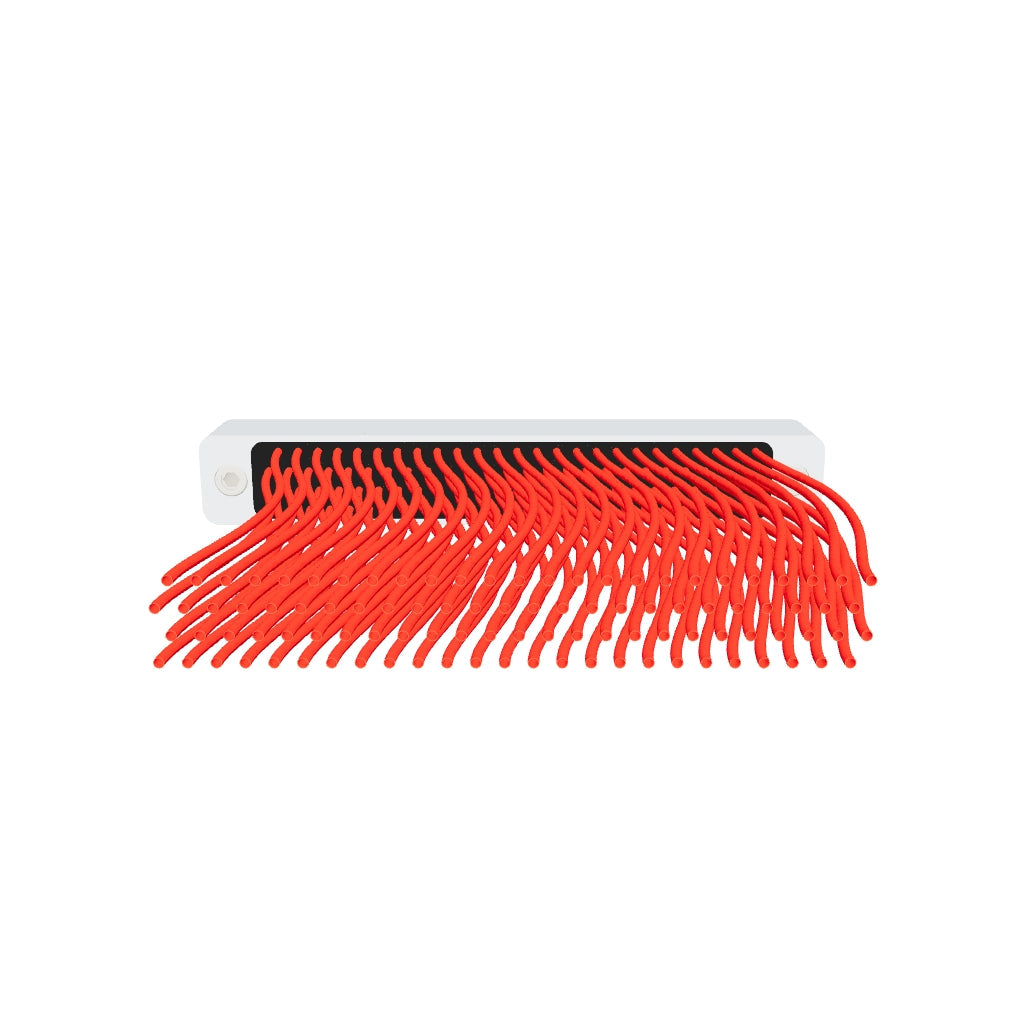

RC4C2-100-191-57CA

Qty Price (USD) Discount Ext. Price (USD)
1 $501.70 - -
10 $461.56 --
25 $436.48 --
50 $401.36 --
100 $351.19 --
250 $301.02 --
500 $250.85 --
1,000 $175.60 --
--

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Availability

Products will ship from JRH Electronics, an AirBorn authorized distributor.

Minimum order quantity for all products is seven (7).

Lead time is 6-8 weeks.

Standard, expedited, and express delivery options are available. See shipping rates.

Datasheets

Part Number Buildup

Performance Specification

Materials Specification

Gender

Plug - Male
Male

# Positions

100
Pitch: .075" (1.91mm)

# Rows

4
Rows

Orientation

Vertical - Straight
Vertical - Straight

Termination

Crimp
Crimp

RoHS?

Yes
AirBorn Catalog Page

Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator

RC4C2 -> .075" Stackable Compliant Full-Profile Top-of-Stack Cable Connectors

Configuration
Configuration

028 -> 4 Rows / 7 Columns

052 -> 4 Rows / 13 Columns

076 -> 4 Rows / 19 Columns

100 -> 4 Rows / 25 Columns

128 -> 4 Rows / 32 Columns

152 -> 4 Rows / 38 Columns

Contacts
Contact Type

18 -> Pin, Crimp, 26-24 AWG

19 -> Pin, Crimp, 30-28 AWG

Plating Options

1 -> 50μ" Au Contacts

Hardware
Hardware Style

00 -> None

57 -> Guide Pin, Non-Polarized

61 -> Jackscrew, Hex, Turning

Type
Type

00 -> None

CA -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 6"

CB -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 12"

CC -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 18"

CD -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 24"

CE -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 30"

CF -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 36"

CG -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 42"

CH -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 48"

CJ -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 54"

CK -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 60"

CL -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 66"

CM -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 72"

CN -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 84"

CP -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 96"

CR -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 108"

CS -> MIL-W-16878/4: 24 AWG, Ten Repeating, Length: 120"

DA -> V24 AWG, White, Length: 6"

DB -> V24 AWG, White, Length: 12"

DC -> MIL-W-16878/4: 24 AWG, White, Length: 18"

DD -> V24 AWG, White, Length: 24"

DE -> MIL-W-16878/4: 24 AWG, White, Length: 30"

DF -> MIL-W-16878/4: 24 AWG, White, Length: 36"

DG -> MIL-W-16878/4: 24 AWG, White, Length: 42"

DH -> MIL-W-16878/4: 24 AWG, White, Length: 48"

DJ -> MIL-W-16878/4: 24 AWG, White, Length: 54"

DK -> MIL-W-16878/4: 24 AWG, White, Length: 6"

DL -> MIL-W-16878/4: 24 AWG, White, Length: 66"

DM -> MIL-W-16878/4: 24 AWG, White, Length: 72"

DN -> MIL-W-16878/4: 24 AWG, White, Length: 84"

DP -> MIL-W-16878/4: 24 AWG, White, Length: 96"

DR -> MIL-W-16878/4: 24 AWG, White, Length: 108"

DS -> MIL-W-16878/4: 24 AWG, White, Length: 120"

EA -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 6"

EB -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 12"

EC -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 18"

ED -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 24"

EE -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 30"

EF -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 36"

EG -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 42"

EH -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 48"

EJ -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 54"

EK -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 60"

EL -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 66"

EM -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 72"

EN -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 84"

EP -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 96"

ER -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 108"

ES -> MIL-W-16878/4: 26 AWG, Ten Repeating, Length: 120"

FA -> MIL-W-16878/4: 26 AWG, White, Length: 6"

FB -> MIL-W-16878/4: 26 AWG, White, Length: 12"

FC -> MIL-W-16878/4: 26 AWG, White, Length: 18"

FD -> MIL-W-16878/4: 26 AWG, White, Length: 24"

FE -> MIL-W-16878/4: 26 AWG, White, Length: 30"

FF -> MIL-W-16878/4: 26 AWG, White, Length: 36"

FG -> MIL-W-16878/4: 26 AWG, White, Length: 42"

FH -> MIL-W-16878/4: 26 AWG, White, Length: 48"

FJ -> MIL-W-16878/4: 26 AWG, White, Length: 54"

FK -> MIL-W-16878/4: 26 AWG, White, Length: 60"

FL -> MIL-W-16878/4: 26 AWG, White, Length: 66"

FM -> MIL-W-16878/4: 26 AWG, White, Length: 72"

FN -> MIL-W-16878/4: 26 AWG, White, Length: 84"

FP -> MIL-W-16878/4: 26 AWG, White, Length: 96"

FR -> MIL-W-16878/4: 26 AWG, White, Length: 108"

FS -> MIL-W-16878/4: 26 AWG, White, Length: 120"

GA -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 6"

GB -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 12"

GC -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 18"

GD -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 24"

GE -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 30"

GF -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 36"

GG -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 42"

GH -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 48"

GJ -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 54"

GK -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 60"

GL -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 66"

GM -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 72"

GN -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 84"

GP -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 96"

GR -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 108"

GS -> MIL-W-16878/4: 28 AWG, Ten Repeating, Length: 120"

HA -> MIL-W-16878/4: 28 AWG, White, Length: 6"

HB -> MIL-W-16878/4: 28 AWG, White, Length: 12"

HC -> MIL-W-16878/4: 28 AWG, White, Length: 18"

HD -> MIL-W-16878/4: 28 AWG, White, Length: 24"

HE -> MIL-W-16878/4: 28 AWG, White, Length: 30"

HF -> MIL-W-16878/4: 28 AWG, White, Length: 36"

HG -> MIL-W-16878/4: 28 AWG, White, Length: 42"

HH -> MIL-W-16878/4: 28 AWG, White, Length: 48"

HJ -> MIL-W-16878/4: 28 AWG, White, Length: 54"

HK -> MIL-W-16878/4: 28 AWG, White, Length: 60"

HL -> MIL-W-16878/4: 28 AWG, White, Length: 66"

HM -> MIL-W-16878/4: 28 AWG, White, Length: 72"

HN -> MIL-W-16878/4: 28 AWG, White, Length: 84"

HP -> MIL-W-16878/4: 28 AWG, White, Length: 96"

HR -> MIL-W-16878/4: 28 AWG, White, Length: 108"

HS -> MIL-W-16878/4: 28 AWG, White, Length: 120"

JA -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 6"

JB -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 12"

JC -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 18"

JD -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 24"

JE -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 30"

JF -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 36"

JG -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 42"

JH -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 48"

JJ -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 54"

JK -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 60"

JL -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 66"

JM -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 72"

JN -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 84"

JP -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 96"

JR -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 108"

JS -> MIL-W-16878/4: 30 AWG, Ten Repeating, Length: 120"

KA -> MIL-W-16878/4: 30 AWG, White, Length: 6"

KB -> MIL-W-16878/4: 30 AWG, White, Length: 12"

KC -> MIL-W-16878/4: 30 AWG, White, Length: 18"

KD -> MIL-W-16878/4: 30 AWG, White, Length: 24"

KE -> MIL-W-16878/4: 30 AWG, White, Length: 30"

KF -> MIL-W-16878/4: 30 AWG, White, Length: 36"

KG -> MIL-W-16878/4: 30 AWG, White, Length: 42"

KH -> MIL-W-16878/4: 30 AWG, White, Length: 48"

KJ -> MIL-W-16878/4: 30 AWG, White, Length: 54"

KK -> MIL-W-16878/4: 30 AWG, White, Length: 60"

KL -> MIL-W-16878/4: 30 AWG, White, Length: 66"

KM -> MIL-W-16878/4: 30 AWG, White, Length: 72"

KN -> MIL-W-16878/4: 30 AWG, White, Length: 84"

KP -> MIL-W-16878/4: 30 AWG, White, Length: 96"

KR -> MIL-W-16878/4: 30 AWG, White, Length: 108"

KS -> MIL-W-16878/4: 30 AWG, White, Length: 120"

NA -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 6"

NB -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 12"

NC -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 18"

ND -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 24"

NE -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 30"

NF -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 36"

NG -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 42"

NH -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 48"

NJ -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 54"

NK -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 60"

NL -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 66"

NM -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 72"

NN -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 84"

NP -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 96"

NR -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 108"

NS -> MIL-W-22759/33: 24 AWG, Ten Repeating, Length: 120"

PA -> MIL-W-22759/33: 24 AWG, White, Length: 6"

PB -> MIL-W-22759/33: 24 AWG, White, Length: 12"

PC -> MIL-W-22759/33: 24 AWG, White, Length: 18"

PD -> MIL-W-22759/33: 24 AWG, White, Length: 24"

PE -> MIL-W-22759/33: 24 AWG, White, Length: 30"

PF -> MIL-W-22759/33: 24 AWG, White, Length: 36"

PG -> MIL-W-22759/33: 24 AWG, White, Length: 42"

PH -> MIL-W-22759/33: 24 AWG, White, Length: 48"

PJ -> MIL-W-22759/33: 24 AWG, White, Length: 54"

PK -> MIL-W-22759/33: 24 AWG, White, Length: 60"

PL -> MIL-W-22759/33: 24 AWG, White, Length: 66"

PM -> MIL-W-22759/33: 24 AWG, White, Length: 72"

PN -> MIL-W-22759/33: 24 AWG, White, Length: 84"

PP -> MIL-W-22759/33: 24 AWG, White, Length: 96"

PR -> MIL-W-22759/33: 24 AWG, White, Length: 108"

PS -> MIL-W-22759/33: 24 AWG, White, Length: 120"

RA -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 6"

RB -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 12"

RC -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 18"

RD -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 24"

RE -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 30"

RF -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 36"

RG -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 42"

RH -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 48"

RJ -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 54"

RK -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 60"

RL -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 66"

RM -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 72"

RN -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 84"

RP -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 96"

RR -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 108"

RS -> MIL-W-22759/33: 26 AWG, Ten Repeating, Length: 120"

SA -> MIL-W-22759/33: 26 AWG, White, Length: 6"

SB -> MIL-W-22759/33: 26 AWG, White, Length: 12"

SC -> MIL-W-22759/33: 26 AWG, White, Length: 18"

SD -> MIL-W-22759/33: 26 AWG, White, Length: 24"

SE -> MIL-W-22759/33: 26 AWG, White, Length: 30"

SF -> MIL-W-22759/33: 26 AWG, White, Length: 36"

SG -> MIL-W-22759/33: 26 AWG, White, Length: 42"

SH -> MIL-W-22759/33: 26 AWG, White, Length: 48"

SJ -> MIL-W-22759/33: 26 AWG, White, Length: 54"

SK -> MIL-W-22759/33: 26 AWG, White, Length: 60"

SL -> MIL-W-22759/33: 26 AWG, White, Length: 66"

SM -> MIL-W-22759/33: 26 AWG, White, Length: 72"

SN -> MIL-W-22759/33: 26 AWG, White, Length: 84"

SP -> MIL-W-22759/33: 26 AWG, White, Length: 96"

SR -> MIL-W-22759/33: 26 AWG, White, Length: 108"

SS -> MIL-W-22759/33: 26 AWG, White, Length: 120"

TA -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 6"

TB -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 12"

TC -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 18"

TD -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 24"

TE -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 30"

TF -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 36"

TG -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 42"

TH -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 48"

TJ -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 54"

TK -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 60"

TL -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 66"

TM -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 72"

TN -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 84"

TP -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 96"

TR -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 108"

TS -> MIL-W-22759/33: 28 AWG, Ten Repeating, Length: 120"

UA -> MIL-W-22759/33: 28 AWG, White, Length: 6"

UB -> MIL-W-22759/33: 28 AWG, White, Length: 12"

UC -> MIL-W-22759/33: 28 AWG, White, Length: 18"

UD -> MIL-W-22759/33: 28 AWG, White, Length: 24"

UE -> MIL-W-22759/33: 28 AWG, White, Length: 30"

UF -> MIL-W-22759/33: 28 AWG, White, Length: 36"

UG -> MIL-W-22759/33: 28 AWG, White, Length: 42"

UH -> MIL-W-22759/33: 28 AWG, White, Length: 48"

UJ -> MIL-W-22759/33: 28 AWG, White, Length: 54"

UK -> MIL-W-22759/33: 28 AWG, White, Length: 60"

UL -> MIL-W-22759/33: 28 AWG, White, Length: 66"

UM -> MIL-W-22759/33: 28 AWG, White, Length: 72"

UN -> MIL-W-22759/33: 28 AWG, White, Length: 84"

UP -> MIL-W-22759/33: 28 AWG, White, Length: 96"

UR -> MIL-W-22759/33: 28 AWG, White, Length: 108"

US -> MIL-W-22759/33: 28 AWG, White, Length: 120"

VA -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 6"

VB -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 12"

VC -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 18"

VD -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 24"

VE -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 30"

VF -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 36"

VG -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 42"

VH -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 48"

VJ -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 54"

VK -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 60"

VL -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 66"

VM -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 72"

VN -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 84"

VP -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 96"

VR -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 108"

VS -> MIL-W-22759/33: 30 AWG, Ten Repeating, Length: 120"

WA -> MIL-W-22759/33: 30 AWG, White, Length: 6"

WB -> MIL-W-22759/33: 30 AWG, White, Length: 12"

WC -> MIL-W-22759/33: 30 AWG, White, Length: 18"

WD -> MIL-W-22759/33: 30 AWG, White, Length: 24"

WE -> MIL-W-22759/33: 30 AWG, White, Length: 30"

WF -> MIL-W-22759/33: 30 AWG, White, Length: 36"

WG -> MIL-W-22759/33: 30 AWG, White, Length: 42"

WH -> MIL-W-22759/33: 30 AWG, White, Length: 48"

WJ -> MIL-W-22759/33: 30 AWG, White, Length: 54"

WK -> MIL-W-22759/33: 30 AWG, White, Length: 60"

WL -> MIL-W-22759/33: 30 AWG, White, Length: 66"

WM -> MIL-W-22759/33: 30 AWG, White, Length: 72"

WN -> MIL-W-22759/33: 30 AWG, White, Length: 84"

WP -> MIL-W-22759/33: 30 AWG, White, Length: 96"

WR -> MIL-W-22759/33: 30 AWG, White, Length: 108"

WS -> MIL-W-22759/33: 30 AWG, White, Length: 120"

Catalog Page: RC4C2C-PNB-1 (Rev:G)

Back to top
