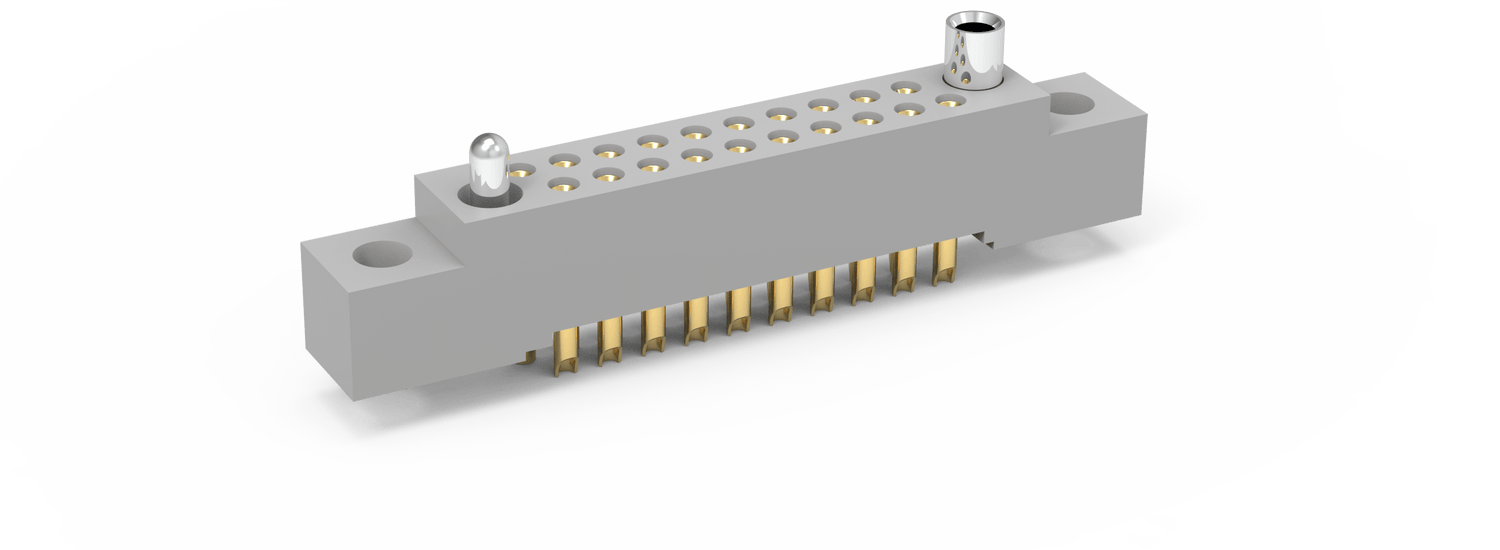

WTB40SOR9SY
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $449.08 | - | - |
| 10 | $323.33 | -- | |
| 25 | $255.99 | -- | |
| 50 | $211.08 | -- | |
| 100 | $179.62 | -- | |
| 250 | $148.19 | -- | |
| 500 | $134.71 | -- | |
| 1,000 | $130.23 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Products will ship from JRH Electronics, an AirBorn authorized distributor.
Minimum order quantity for all products is seven (7).
Lead time is 6-8 weeks.
Standard, expedited, and express delivery options are available. See shipping rates.
WTB40SOR9SY
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator
WTB -> Receptacle, Straight & Right Angle, No Mounting Ears
Size
10 -> 10
14 -> 14
20 -> 20
24 -> 24
26 -> 26
30 -> 30
36 -> 36
40 -> 40
44 -> 44
50 -> 50
54 -> 54
56 -> 56
60 -> 60
66 -> 66
70 -> 70
Contacts
Contact Type
SAC -> Socket, Straight, Solder Cup (.035" I.D.)
SAD7 -> Socket, Straight, Dip Solder, .109" x .027" dia
SAD9 -> Socket, Straight, Dip Solder, .140" x .027" dia
SAD11 -> Socket, Straight, Dip Solder, .172" x .027" dia
SAF3 -> Socket, Straight, Flex Circuit, .050"
SAF6 -> Socket, Straight, Flex Circuit, .093"
SAF9 -> Socket, Straight, Flex Circuit, .140"
SAG7 -> Socket, Straight, Dip Solder, .109" x .018" dia
SAG9 -> Socket, Straight, Dip Solder, .140" x .018" dia
SAG11 -> Socket, Straight, Dip Solder, .172" x .018" dia
SAP -> Socket, Straight, Pin Termination, .150" (connector saver)
SAW24 -> Socket, Straight, Wire Wrap, .375"
SAW40 -> Socket, Straight, Wire Wrap, .625"
SOR7 -> Socket, Right Angle, Dip Solder, .109" x .025" dia
SOR9 -> Socket, Right Angle, Dip Solder, .140" x .025" dia
SOR11 -> Socket, Right Angle, Dip Solder, .172" x .025" dia
Hardware
SY -> Guide Set
SY-1 -> Guide Set, Polarized/Keyed (orientation# 1)
SY-2 -> Guide Set, Polarized/Keyed (orientation# 2)
SY-3 -> Guide Set, Polarized/Keyed (orientation# 3)
SY-4 -> Guide Set, Polarized/Keyed (orientation# 4)
SY-5 -> Guide Set, Polarized/Keyed (orientation# 5)
SY-6 -> Guide Set, Polarized/Keyed (orientation# 6)
SY-7 -> Guide Set, Polarized/Keyed (orientation# 7)
SY-8 -> Guide Set, Polarized/Keyed (orientation# 8)
SY-9 -> Guide Set, Polarized/Keyed (orientation# 9)
SY-10 -> Guide Set, Polarized/Keyed (orientation# 10)
SY-11 -> Guide Set, Polarized/Keyed (orientation# 11)
SY-12 -> Guide Set, Polarized/Keyed (orientation# 12)
SY-13 -> Guide Set, Polarized/Keyed (orientation# 13)
SY-14 -> Guide Set, Polarized/Keyed (orientation# 14)
SY-15 -> Guide Set, Polarized/Keyed (orientation# 15)
SY-16 -> Guide Set, Polarized/Keyed (orientation# 16)
SY-17 -> Guide Set, Polarized/Keyed (orientation# 17)
SY-18 -> Guide Set, Polarized/Keyed (orientation# 18)
SY-19 -> Guide Set, Polarized/Keyed (orientation# 19)
SY-20 -> Guide Set, Polarized/Keyed (orientation# 20)
SY-21 -> Guide Set, Polarized/Keyed (orientation# 21)
SY-22 -> Guide Set, Polarized/Keyed (orientation# 22)
SY-23 -> Guide Set, Polarized/Keyed (orientation# 23)
SY-24 -> Guide Set, Polarized/Keyed (orientation# 24)
SY-25 -> Guide Set, Polarized/Keyed (orientation# 25)
SY-26 -> Guide Set, Polarized/Keyed (orientation# 26)
SY-27 -> Guide Set, Polarized/Keyed (orientation# 27)
SY-28 -> Guide Set, Polarized/Keyed (orientation# 28)
SY-29 -> Guide Set, Polarized/Keyed (orientation# 29)
SY-30 -> Guide Set, Polarized/Keyed (orientation# 30)
SY-31 -> Guide Set, Polarized/Keyed (orientation# 31)
SY-32 -> Guide Set, Polarized/Keyed (orientation# 32)
SY-33 -> Guide Set, Polarized/Keyed (orientation# 33)
SY-34 -> Guide Set, Polarized/Keyed (orientation# 34)
SY-35 -> Guide Set, Polarized/Keyed (orientation# 35)
SY-36 -> Guide Set, Polarized/Keyed (orientation# 36)
SY-37 -> Guide Set, Polarized/Keyed (orientation# 37)
SY-38 -> Guide Set, Polarized/Keyed (orientation# 38)
SY-39 -> Guide Set, Polarized/Keyed (orientation# 39)
SY-40 -> Guide Set, Polarized/Keyed (orientation# 40)
SY-41 -> Guide Set, Polarized/Keyed (orientation# 41)
SY-42 -> Guide Set, Polarized/Keyed (orientation# 42)
SY-43 -> Guide Set, Polarized/Keyed (orientation# 43)
SY-44 -> Guide Set, Polarized/Keyed (orientation# 44)
SY-45 -> Guide Set, Polarized/Keyed (orientation# 45)
SY-46 -> Guide Set, Polarized/Keyed (orientation# 46)
SY-47 -> Guide Set, Polarized/Keyed (orientation# 47)
SY-48 -> Guide Set, Polarized/Keyed (orientation# 48)
SY-49 -> Guide Set, Polarized/Keyed (orientation# 49)
SY-50 -> Guide Set, Polarized/Keyed (orientation# 50)
SY-51 -> Guide Set, Polarized/Keyed (orientation# 51)
SY-52 -> Guide Set, Polarized/Keyed (orientation# 52)
SY-53 -> Guide Set, Polarized/Keyed (orientation# 53)
SY-54 -> Guide Set, Polarized/Keyed (orientation# 54)
SY-55 -> Guide Set, Polarized/Keyed (orientation# 55)
SY-56 -> Guide Set, Polarized/Keyed (orientation# 56)
SY-57 -> Guide Set, Polarized/Keyed (orientation# 57)
SY-58 -> Guide Set, Polarized/Keyed (orientation# 58)
SY-59 -> Guide Set, Polarized/Keyed (orientation# 59)
SY-60 -> Guide Set, Polarized/Keyed (orientation# 60)
SY-61 -> Guide Set, Polarized/Keyed (orientation# 61)
SY-62 -> Guide Set, Polarized/Keyed (orientation# 62)
SY-63 -> Guide Set, Polarized/Keyed (orientation# 63)
SY-64 -> Guide Set, Polarized/Keyed (orientation# 64)
SYL -> Guide Set, Long
SYL-1 -> Guide Set, Long, Polarized/Keyed (orientation# 1)
SYL-2 -> Guide Set, Long, Polarized/Keyed (orientation# 2)
SYL-3 -> Guide Set, Long, Polarized/Keyed (orientation# 3)
SYL-4 -> Guide Set, Long, Polarized/Keyed (orientation# 4)
SYL-5 -> Guide Set, Long, Polarized/Keyed (orientation# 5)
SYL-6 -> Guide Set, Long, Polarized/Keyed (orientation# 6)
SYL-7 -> Guide Set, Long, Polarized/Keyed (orientation# 7)
SYL-8 -> Guide Set, Long, Polarized/Keyed (orientation# 8)
SYL-9 -> Guide Set, Long, Polarized/Keyed (orientation# 9)
SYL-10 -> Guide Set, Long, Polarized/Keyed (orientation# 10)
SYL-11 -> Guide Set, Long, Polarized/Keyed (orientation# 11)
SYL-12 -> Guide Set, Long, Polarized/Keyed (orientation# 12)
SYL-13 -> Guide Set, Long, Polarized/Keyed (orientation# 13)
SYL-14 -> Guide Set, Long, Polarized/Keyed (orientation# 14)
SYL-15 -> Guide Set, Long, Polarized/Keyed (orientation# 15)
SYL-16 -> Guide Set, Long, Polarized/Keyed (orientation# 16)
SYL-17 -> Guide Set, Long, Polarized/Keyed (orientation# 17)
SYL-18 -> Guide Set, Long, Polarized/Keyed (orientation# 18)
SYL-19 -> Guide Set, Long, Polarized/Keyed (orientation# 19)
SYL-20 -> Guide Set, Long, Polarized/Keyed (orientation# 20)
SYL-21 -> Guide Set, Long, Polarized/Keyed (orientation# 21)
SYL-22 -> Guide Set, Long, Polarized/Keyed (orientation# 22)
SYL-23 -> Guide Set, Long, Polarized/Keyed (orientation# 23)
SYL-24 -> Guide Set, Long, Polarized/Keyed (orientation# 24)
SYL-25 -> Guide Set, Long, Polarized/Keyed (orientation# 25)
SYL-26 -> Guide Set, Long, Polarized/Keyed (orientation# 26)
SYL-27 -> Guide Set, Long, Polarized/Keyed (orientation# 27)
SYL-28 -> Guide Set, Long, Polarized/Keyed (orientation# 28)
SYL-29 -> Guide Set, Long, Polarized/Keyed (orientation# 29)
SYL-30 -> Guide Set, Long, Polarized/Keyed (orientation# 30)
SYL-31 -> Guide Set, Long, Polarized/Keyed (orientation# 31)
SYL-32 -> Guide Set, Long, Polarized/Keyed (orientation# 32)
SYL-33 -> Guide Set, Long, Polarized/Keyed (orientation# 33)
SYL-34 -> Guide Set, Long, Polarized/Keyed (orientation# 34)
SYL-35 -> Guide Set, Long, Polarized/Keyed (orientation# 35)
SYL-36 -> Guide Set, Long, Polarized/Keyed (orientation# 36)
SYL-37 -> Guide Set, Long, Polarized/Keyed (orientation# 37)
SYL-38 -> Guide Set, Long, Polarized/Keyed (orientation# 38)
SYL-39 -> Guide Set, Long, Polarized/Keyed (orientation# 39)
SYL-40 -> Guide Set, Long, Polarized/Keyed (orientation# 40)
SYL-41 -> Guide Set, Long, Polarized/Keyed (orientation# 41)
SYL-42 -> Guide Set, Long, Polarized/Keyed (orientation# 42)
SYL-43 -> Guide Set, Long, Polarized/Keyed (orientation# 43)
SYL-44 -> Guide Set, Long, Polarized/Keyed (orientation# 44)
SYL-45 -> Guide Set, Long, Polarized/Keyed (orientation# 45)
SYL-46 -> Guide Set, Long, Polarized/Keyed (orientation# 46)
SYL-47 -> Guide Set, Long, Polarized/Keyed (orientation# 47)
SYL-48 -> Guide Set, Long, Polarized/Keyed (orientation# 48)
SYL-49 -> Guide Set, Long, Polarized/Keyed (orientation# 49)
SYL-50 -> Guide Set, Long, Polarized/Keyed (orientation# 50)
SYL-51 -> Guide Set, Long, Polarized/Keyed (orientation# 51)
SYL-52 -> Guide Set, Long, Polarized/Keyed (orientation# 52)
SYL-53 -> Guide Set, Long, Polarized/Keyed (orientation# 53)
SYL-54 -> Guide Set, Long, Polarized/Keyed (orientation# 54)
SYL-55 -> Guide Set, Long, Polarized/Keyed (orientation# 55)
SYL-56 -> Guide Set, Long, Polarized/Keyed (orientation# 56)
SYL-57 -> Guide Set, Long, Polarized/Keyed (orientation# 57)
SYL-58 -> Guide Set, Long, Polarized/Keyed (orientation# 58)
SYL-59 -> Guide Set, Long, Polarized/Keyed (orientation# 59)
SYL-60 -> Guide Set, Long, Polarized/Keyed (orientation# 60)
SYL-61 -> Guide Set, Long, Polarized/Keyed (orientation# 61)
SYL-62 -> Guide Set, Long, Polarized/Keyed (orientation# 62)
SYL-63 -> Guide Set, Long, Polarized/Keyed (orientation# 63)
SYL-64 -> Guide Set, Long, Polarized/Keyed (orientation# 64)
J -> Fixed Jackset
JL -> Fixed Jackset, Long
Options
B82 -> Termination face sealed against conformal coating.
D01 -> Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with 63/37 or 60/40 solder.
P39 -> Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with SAC305 solder (lead free).
D54 -> Combine B82 & D01 options
G69 -> Solder cups fixed in an outward orientation (otherwise contacts will rotate).
Catalog Page: ctw024-F (Rev:D)
