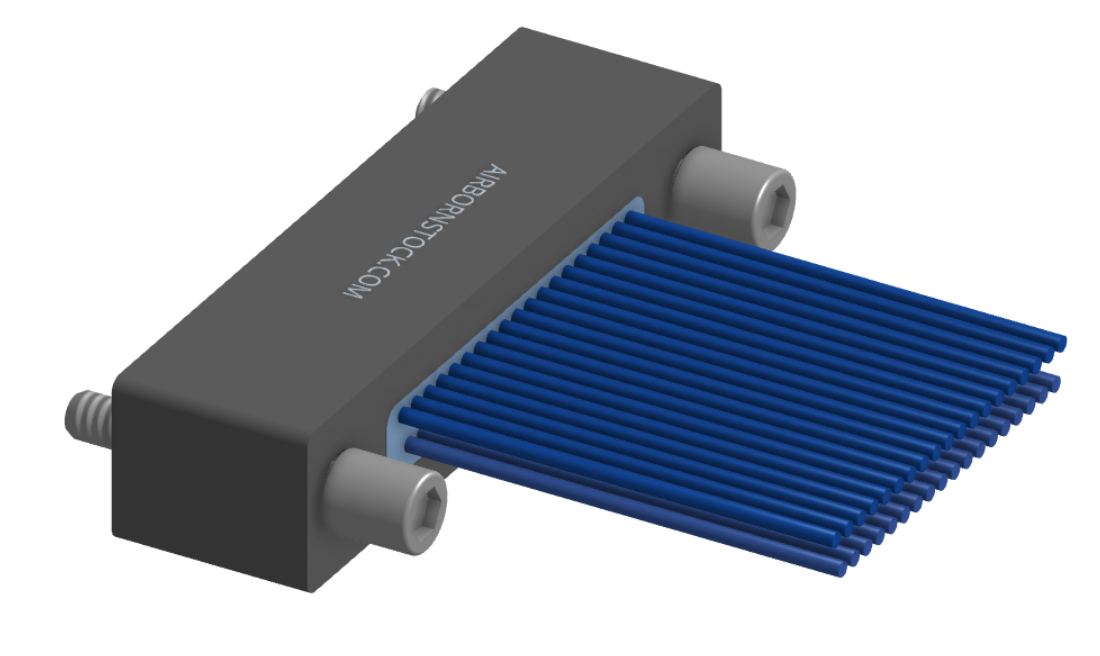

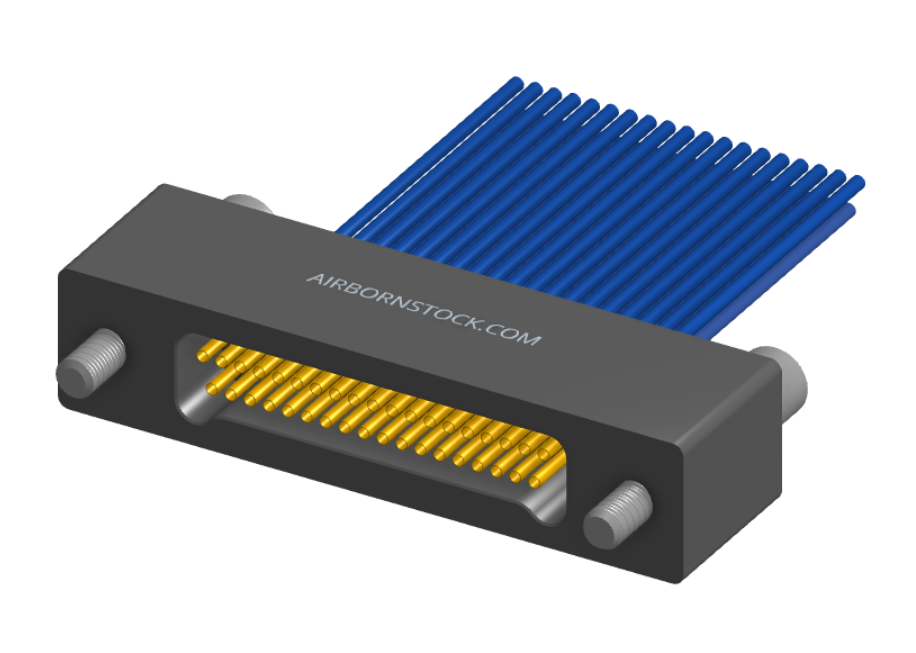

NMSP-225-037-261-JCAA - Splashproof Nano-miniature D-shaped I/O connector, 2 rows with 37 contacts, and turning jackscrew attachment hardware. (Receptacle)
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $1,186.49 | - | - |
| 10 | $1,091.57 | -- | |
| 25 | $1,044.11 | -- | |
| 50 | $889.87 | -- | |
| 100 | $794.95 | -- | |
| 250 | $652.57 | -- | |
| 500 | $533.92 | -- | |
| 1,000 | $474.60 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Our minimum required order quantity is seven (7) pieces.
Average lead time is 6-8 weeks from time of order.
If a portion of your order is already in stock, we will ship that immediately, with the remainder of your order being shipped once back in stock.
Products will ship from JRH Electronics, a Molex (AirBorn) authorized distributor.
Standard, expedited, and express delivery options are available. See shipping rates.
NMSP-225-037-261-JCAA - Splashproof Nano-miniature D-shaped I/O con...
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
Product Description
Nano-D .025" (N Series)
Pitch spacing between contacts on AirBorn's Nano product line is 0.025" (0.64mm).
The AirBorn Nano-Connector Series is a line of high-performance connectors designed for applications where size, weight, and reliability are critical.
Key Features:
- Compact Size: Nano-sized connectors with high-density configurations for space-constrained designs.
- High Reliability: Rugged construction designed to withstand harsh environments, including vibration, extreme temperatures, and shock.
- Lightweight: Engineered with lightweight materials, making them ideal for applications where weight savings are crucial.
Applications:
- Aerospace: Avionics systems, UAVs, and space exploration equipment.
- Defense: Mission-critical communication systems and portable electronics.
- Medical: Miniaturized diagnostic and therapeutic devices.
- Industrial: Robotics, sensors, and control systems in tight spaces.
The AirBorn Nano-Connector Series is valued for its exceptional balance of miniaturization and performance, meeting the stringent requirements of high-reliability sectors.
| Receptacle (Female) | |
|---|---|
|
Series Designator |
|
|
NMSP |
.025" Metal Splashproof I/O Connectors |
|
Body |
|
|
Rows |
|
|
2 |
2 Rows |
|
Body Style |
|
|
2 |
Receptacle, Straight |
|
Body Material |
|
|
2 |
Liquid Crystal Polymer with Electroless Nickel Shell |
|
3 |
Liquid Crystal Polymer with Electrodeposited Cadmium Shell |
|
4 |
Liquid Crystal Polymer with Stainless Steel Shell |
|
5 |
Liquid Crystal Polymer with Titanium Shell |
|
Size |
|
|
009 |
9 Contacts |
|
015 |
15 Contacts |
|
021 |
21 Contacts |
|
025 |
25 Contacts |
|
031 |
31 Contacts |
|
037 |
37 Contacts |
|
051 |
51 Contacts |
|
065 |
65 Contacts |
|
069 |
69 Contacts |
|
085 |
85 Contacts |
|
091 |
91 Contacts |
|
Contacts |
|
|
Contact Type |
|
|
26 |
Socket, Straight, Crimped Wire |
|
Plating Options |
|
|
1 |
50μ" Au Contacts |
|
Hardware |
|
|
Hardware Style |
|
|
JC |
Two Turning Jackscrews, Allen Head, Captivated, #0-80 UNF (#2-56 for sizes 85 and 91) |
|
TH |
Threaded Hole Only, #0-80 UNF (#2-56 for sizes 85 and 91) |
|
Wiring Options |
|
|
00 |
Wiring Options - None |
|
AirBorn Standard Nano Wire CodesWire Code Wire Size Wire Spec Wire Color Wire Length AA 30 AWG NEMA HP3 COLOR CODED * 6.0 AB 30 AWG NEMA HP3 COLOR CODED * 12.0 AC 30 AWG NEMA HP3 COLOR CODED * 18.0 AD 30 AWG NEMA HP3 COLOR CODED * 36.0 AE 30 AWG NEMA HP3 WHITE 6.0 AF 30 AWG NEMA HP3 WHITE 12.0 AG 30 AWG NEMA HP3 WHITE 18.0 AH 30 AWG NEMA HP3 WHITE 36.0 AJ 30 AWG NEMA HP3 YELLOW 6.0 AK 30 AWG NEMA HP3 YELLOW 12.0 AL 30 AWG NEMA HP3 YELLOW 18.0 AM 30 AWG NEMA HP3 YELLOW 36.0 AN 32 AWG NEMA HP3 COLOR CODED * 6.0 AP 32 AWG NEMA HP3 COLOR CODED * 12.0 AQ 32 AWG NEMA HP3 COLOR CODED * 18.0 AR 32 AWG NEMA HP3 COLOR CODED * 36.0 AS 32 AWG NEMA HP3 WHITE 6.0 AT 32 AWG NEMA HP3 WHITE 12.0 AU 32 AWG NEMA HP3 WHITE 18.0 AV 32 AWG NEMA HP3 WHITE 36.0 AW 32 AWG NEMA HP3 YELLOW 6.0 AX 32 AWG NEMA HP3 YELLOW 12.0 AY 32 AWG NEMA HP3 YELLOW 18.0 AZ 32 AWG NEMA HP3 YELLOW 36.0 BA 30 AWG SAE-AS22759/33 COLOR CODED * 6.0 BB 30 AWG SAE-AS22759/33 COLOR CODED * 12.0 BC 30 AWG SAE-AS22759/33 COLOR CODED * 18.0 BD 30 AWG SAE-AS22759/33 COLOR CODED * 36.0 BE 30 AWG SAE-AS22759/33 WHITE 6.0 BF 30 AWG SAE-AS22759/33 WHITE 12.0 BG 30 AWG SAE-AS22759/33 WHITE 18.0 BH 30 AWG SAE-AS22759/33 WHITE 36.0 CA 30 AWG 0407-30A ☒ COLOR CODED * 6.0 CB 30 AWG 0407-30A ☒ COLOR CODED * 12.0 CC 30 AWG 0407-30A ☒ COLOR CODED * 18.0 CD 30 AWG 0407-30A ☒ COLOR CODED * 36.0 CE 30 AWG 0407-30A ☒ WHITE 6.0 CF 30 AWG 0407-30A ☒ WHITE 12.0 CG 30 AWG 0407-30A ☒ WHITE 18.0 CH 30 AWG 0407-30A ☒ WHITE 36.0
|
|
Catalog Page: ctn095-F (Rev:J)
| PERFORMANCE REFERENCE MIL-DTL-32139 | |
|---|---|
|
CONTACT RATING |
1-amperes maximum |
|
SOLDERABILITY |
Terminals (except crimp) tested in accordance with MIL-STD-202, method 208 |
|
WIRE SIZE |
Stranded #30 and #32 AWG or solid #30 AWG standard |
|
TEST VOLTAGE |
250V (RMS) 60 Hz |
|
OPERATING TEMPERATURE |
-55° C to +125° C |
|
INSULATION RESISTANCE |
5,000 megohms minimum at 100 VDC |
|
DURABILITY |
200 connector mating cycles tested in accordance with EIA-364-09 |
|
VIBRATION |
Tested in accordance with EIA-364-28, condition IV |
|
SHOCK |
Tested in accordance with EIA-364-27, condition G |
|
SALT SPRAY |
Mated connectors tested in accordance with EIA-364-26, condition B |
|
HUMIDITY |
Mated connectors tested in accordance with EIA-364-31, condition A |
|
THERMAL SHOCK |
Tested to the temperature extremes of EIA-364-32, condition I |
|
CONTACT RESISTANCE |
0.021 volt maximum drop at 1.0 amps (.021 Ohms) |
|
CONTACT ENGAGING FORCE |
5.0 oz maximum, with minimum diameter test sleeve |
|
CONTACT SEPARATING |
0.4 oz minimum, with maximum diameter test sleeve |
| MATERIALS & FINISHES | |
|---|---|
|
CONTACTS |
Pins: Beryllium-copper(BeCu) alloy strip per ASTM B194. |
|
EMBEDMENT |
Insulating compound per MIL-I-16923 |
|
CONTACT FINISHES |
Gold plate per ASTM B488 |
|
MOLDED INSULATORS |
Glass filled liquid crystal polymer (LCP) per ASTM D5138 or MIL-M-24519 |
|
SHELLS |
Aluminum 6061-T6 per SAE AMS-QQ-A-250/11 or 6061-T6511 per SAE AMS-QQ-A-200/8 OR |
|
ALUMINUM SHELL FINISHES |
Electroless nickel per SAE AMS2404 OR Electrodeposited cadmium per SAE AMS-QQ-P-416 |
|
MOLDED INSULATORS |
Glass filled polyphenylene sulfide per MIL-M-24519. Glass filled liquid crystal polymer per ASTM D5138 (one row only) |
|
HARDWARE |
Corrosion resistant steel per ASTM A320/A320M or ASTM A484 and ASTM A582/A582M. Passivated per SAE AMS2700 |
|
TOLERANCES |
Angles: ±2°, Decimals: ±0.005” |
