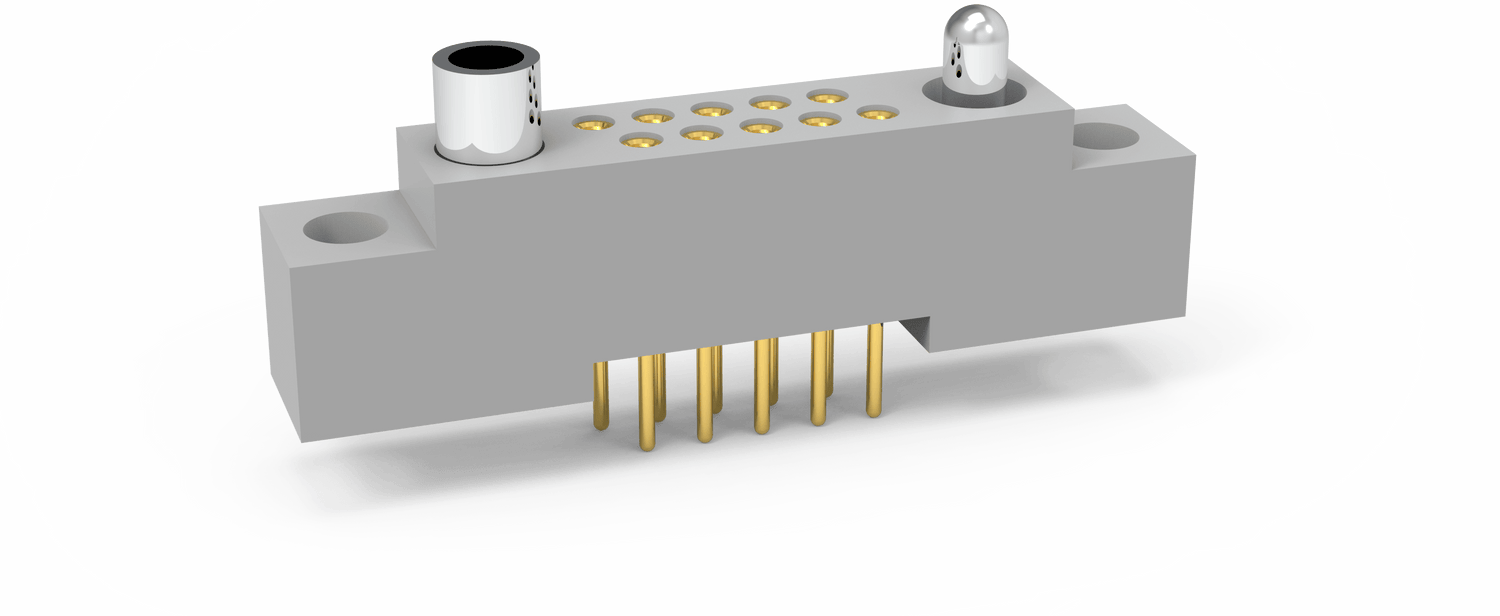

RM222-020-223-5500
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
Product Description
Rectangular PCB .075" (R Series)
Pitch spacing between contacts on AirBorn's Rectangular R-Series product line is 0.075" (1.91mm).
AirBorn's R-Series Rectangular Connector Series is a robust and versatile family of connectors designed to meet the demanding requirements of high-reliability industries.
Key Features:
- Robust and High-Performance Design: Rugged construction to endure harsh environments, including vibration, shock, and extreme temperatures. Compliant with MIL-DTL-55302 standards, ensuring superior quality and reliability.
- Modular and Configurable: Highly customizable configurations to meet a wide range of application needs. Available with different contact layouts, sizes, and densities. Supports both signal and power connections within a single housing.
- Electrical and Mechanical Excellence: Precision-engineered contact system ensures low contact resistance and reliable electrical performance. High current-carrying capacity and low insertion force.
- Diverse Termination Options: Supports multiple termination styles, including: Solder, Crimp, and PCB mount.
Applications:
- Aerospace and Defense: Avionics, radar systems, and mission-critical communication.
- Medical Devices: High-reliability diagnostics and treatment systems.
- Industrial Equipment: Robotics and automation.
- Space: Satellites and spacecraft electronics.
AirBorn's R-Series connectors are ideal for high-performance, rugged applications where reliability, modularity, and flexibility are crucial. They provide a dependable solution for industries where failure is not an option.
| Receptacle (Female) | |
|---|---|
|
Series Designator |
|
|
RM |
.075" Screw Machine PC Connectors |
|
Body |
|
|
Rows |
|
|
2 |
2 Rows |
|
Body Style |
|
|
2 |
Receptacle, Straight, with Mounting Ears |
|
4 |
Receptacle, Straight, without Mounting Ears |
|
Body Material |
|
|
2 |
Polyphenylene sulfide (PPS) |
|
Size |
|
|
010 |
010 |
|
020 |
020 |
|
030 |
030 |
|
040 |
040 |
|
050 |
050 |
|
060 |
060 |
|
070 |
070 |
|
080 |
080 |
|
090 |
090 |
|
100 |
100 |
|
Contacts |
|
|
Contact Type |
|
|
20 |
Socket, Straight, Dip Solder, .109" x .020" dia |
|
21 |
Socket, Straight, Dip Solder, .140" x .020" dia |
|
22 |
Socket, Straight, Dip Solder, .172" x .020" dia |
|
23 |
Socket, Straight, Dip Solder, .250" x .020" dia |
|
24 |
Socket, Straight, Solder Cup |
|
25 |
Socket, Straight, Flex Circuit, .093" x .017" dia |
|
26 |
Socket, Straight, Wire Wrap, .500" x .018" dia |
|
27 |
Socket, Straight, Wire Wrap, .375" x .018" dia |
|
28 |
Socket, Straight, Wire Wrap, .625" x .018" dia |
|
29 |
Socket, Connector Saver, .150" x .025" dia |
|
50 |
Socket, Straight, Dip Solder, .140" x .016" dia |
|
51 |
Socket, Straight, Dip Solder, .172" x .016" dia |
|
53 |
Socket, Straight, Stackable, .212" x .025" dia |
|
54 |
Socket, Straight, Stackable, .244" x .025" dia |
|
55 |
Socket, Straight, Stackable, .275" x .025" dia |
|
64 |
Socket, Straight, Press-Fit, .203" (Board: .093" - .125" thk) |
|
65 |
Socket, Straight, Press-Fit, .323" (Board: .156" - .200" thk) |
|
66 |
Socket, Straight, Press-Fit, .403" (Board: .250" + thk) |
|
Plating Options |
|
|
1 |
Gold Plated Termination |
|
2 |
Pre-Tinned Termination, SnPb alloy (dip solder options only) |
|
3 |
Pre-Tinned Termination, SAC305 alloy (dip solder options only) |
|
Hardware |
|
|
Hardware Style |
|
|
0256 |
None |
|
55 |
Guide Set |
|
57 |
Two Guide Pins |
|
58 |
Two Guide Sockets |
|
29 |
Fixed Jackset |
|
30 |
Fixed Jackset, Reversed |
|
19 |
Two Fixed Jackscrews |
|
20 |
Two Fixed Jacksockets |
|
59 |
Hex Turning Jackset, .200" |
|
60 |
Hex Turning Jackset, Reversed .200" |
|
61 |
Two Hex Turning Jackscrews, .200" |
|
62 |
Two Hex Turning Jacksockets, .200" |
|
64 |
Turning Jackset, .490" |
|
65 |
Turning Jackset, Reversed, .490" |
|
66 |
Two Turning Jackscrews, .490" |
|
67 |
Two Turning Jackscockets, .490" |
|
Polarization |
|
|
00 |
None |
|
01 |
Keying Position - 01 |
|
02 |
Keying Position - 02 |
|
03 |
Keying Position - 03 |
|
04 |
Keying Position - 04 |
|
05 |
Keying Position - 05 |
|
06 |
Keying Position - 06 |
|
07 |
Keying Position - 07 |
|
08 |
Keying Position - 08 |
|
09 |
Keying Position - 09 |
|
11 |
Keying Position - 11 |
|
12 |
Keying Position - 12 |
|
13 |
Keying Position - 13 |
|
14 |
Keying Position - 14 |
|
15 |
Keying Position - 15 |
|
16 |
Keying Position - 16 |
|
17 |
Keying Position - 17 |
|
18 |
Keying Position - 18 |
|
19 |
Keying Position - 19 |
|
20 |
Keying Position - 20 |
|
21 |
Keying Position - 21 |
|
22 |
Keying Position - 22 |
|
23 |
Keying Position - 23 |
|
24 |
Keying Position - 24 |
|
25 |
Keying Position - 25 |
|
26 |
Keying Position - 26 |
|
27 |
Keying Position - 27 |
|
28 |
Keying Position - 28 |
|
29 |
Keying Position - 29 |
|
30 |
Keying Position - 30 |
|
31 |
Keying Position - 31 |
|
32 |
Keying Position - 32 |
|
33 |
Keying Position - 33 |
|
34 |
Keying Position - 34 |
|
35 |
Keying Position - 35 |
|
36 |
Keying Position - 36 |
|
37 |
Keying Position - 37 |
|
38 |
Keying Position - 38 |
|
39 |
Keying Position - 39 |
|
40 |
Keying Position - 40 |
|
41 |
Keying Position - 41 |
|
42 |
Keying Position - 42 |
|
43 |
Keying Position - 43 |
|
44 |
Keying Position - 44 |
|
45 |
Keying Position - 45 |
|
46 |
Keying Position - 46 |
|
47 |
Keying Position - 47 |
|
48 |
Keying Position - 48 |
|
49 |
Keying Position - 49 |
|
50 |
Keying Position - 50 |
|
51 |
Keying Position - 51 |
|
52 |
Keying Position - 52 |
|
53 |
Keying Position - 53 |
|
54 |
Keying Position - 54 |
|
55 |
Keying Position - 55 |
|
56 |
Keying Position - 56 |
|
57 |
Keying Position - 57 |
|
58 |
Keying Position - 58 |
|
59 |
Keying Position - 59 |
|
60 |
Keying Position - 60 |
|
61 |
Keying Position - 61 |
|
62 |
Keying Position - 62 |
|
63 |
Keying Position - 63 |
|
64 |
Keying Position - 64 |
|
65 |
Keying Position - 65 |
|
66 |
Keying Position - 66 |
|
67 |
Keying Position - 67 |
|
68 |
Keying Position - 68 |
|
70 |
Keying Position - 70 |
Catalog Page: ctr010-F (Rev:F)
| PERFORMANCE REFERENCE MIL-DTL-55302 | |
|---|---|
|
CONTACT RATING |
3-amperes (2 amperes for 0.016" diameter) |
|
SOLDERABILITY |
Terminals (except wire wrap, crimp, and stackables) tested in accordance with MIL-STD-202, method 208 |
|
WIRE SIZE |
Stranded #26 AWG |
|
OPERATING TEMPERATURE |
-65°C to +125°C or -85°F to +257°F |
|
TEST VOLTAGE |
750V (RMS) 60 Hz at sea level. 250V (RMS) 60 Hz at 70,000 feet. Tested in accordance with SAE AS 13441, method #3001 |
|
INSULATION RESISTANCE |
5,000 megohms minimum at 500 VDC. Tested in accordance with SAE AS 13441, method #3003 |
|
DURABILITY |
500 connector mating cycles |
|
VIBRATION |
Mated connectors, test condition III. Tested in accordance with SAE AS 13441, method #2005 |
|
SHOCK |
Mated connectors, test condition G. Tested in accordance with SAE AS 13441, method #2004 |
|
SALT SPRAY |
Mated connectors, test condition B. Tested in accordance with SAE AS 13441, method #1001 |
|
HUMIDITY |
Test type II, (except steps 7a and 7b not required). Tested in accordance with SAE AS 13441, method #1002 |
|
TEMPERATURE CYCLING |
Mated connectors, test condition A. Tested in accordance with SAE AS 13441, method #1003 |
|
CONTACT RESISTANCE |
0.015 ohms maximum (interface measurement) at 3 amperes. Tested in accordance with SAE AS 13441, method #3004 |
|
CONTACT MATING FORCE |
2.5 oz. x number of contacts average |
|
OUTGASSING |
The entire connector assembly shall have maximum total mass loss (TML) of 1.0 percent of the original specimen mass and shall have a maximum volatile condensable material (VCM) content of 0.1 percent of the original specimen mass. |
|
SIZES 50 AND LARGER |
Upon engagement, center area of mating faces may remain open 0.010" to 0.025" due to slight flexing of molding. Vibration or shock should provide complete closure. |
|
GUIDES AND JACKS |
If location of pin or socket contacts is reversed, location of male and female guides or jacks is also reversed; except when using D shaped polarized guides. When polarized positions are changed, apply Loctite® 242-12 or equivalent to threads. |
| MATERIALS & FINISHES | |
|---|---|
|
PIN CONTACTS |
BeCu, per ASTM-B196, ASTM B 197/B 197M-, or brass alloy per ASTM B 16/B 16M or ASTM-B134 |
|
SOCKET CONTACTS |
BeCu per ASTM-B194 and/or ASTM-B 196, ASTM B 197/B 197M-, or brass per ASTM B 16/B 16M or ASTM-B134 |
|
CONTACT FINISHES |
Gold plate per ASTM B 488-, SAE AMS 2422, or localized finish per MIL-DTL-55302 and associated slash sheet |
|
SOLDER |
Sn/Pb alloy - 63% tin, 37% lead composition [x]. SAC305 - 96.5% tin, 3% silver, 0.5% copper composition |
|
MOLDED INSULATORS |
Glass filled polyphenylene sulfide per MIL-M-24519, type GST-40F |
|
JACKSCREWS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
JACKSOCKETS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
JACKSCREW KNOBS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
GUIDE PINS, GUIDE SOCKETS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
GUIDE SOCKETS, POLARIZED "D" TYPE |
BeCu per ASTM-B196, ASTM B 197/B 197M-, nickel plated per SAE AMS-QQ-N-290 |
|
CONNECTOR MARKINGS |
Contact numbers are stamped on the side of the connector. Numbers are stamped on the low-numbered side only on 2-row and 3-row right-angle connectors. |
|
TOLERANCES |
Angles: ±5°, |
