RM222-060-221-5600
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $219.91 | - | - |
| 10 | $202.32 | -- | |
| 25 | $193.52 | -- | |
| 50 | $164.93 | -- | |
| 100 | $147.34 | -- | |
| 250 | $120.95 | -- | |
| 500 | $98.96 | -- | |
| 1,000 | $87.96 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Our minimum required order quantity is seven (7) pieces.
Average lead time is 6-8 weeks from time of order.
If a portion of your order is already in stock, we will ship that immediately, with the remainder of your order being shipped once back in stock.
Products will ship from JRH Electronics, a Molex (AirBorn) authorized distributor.
Standard, expedited, and express delivery options are available. See shipping rates.
RM222-060-221-5600
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
Product Description

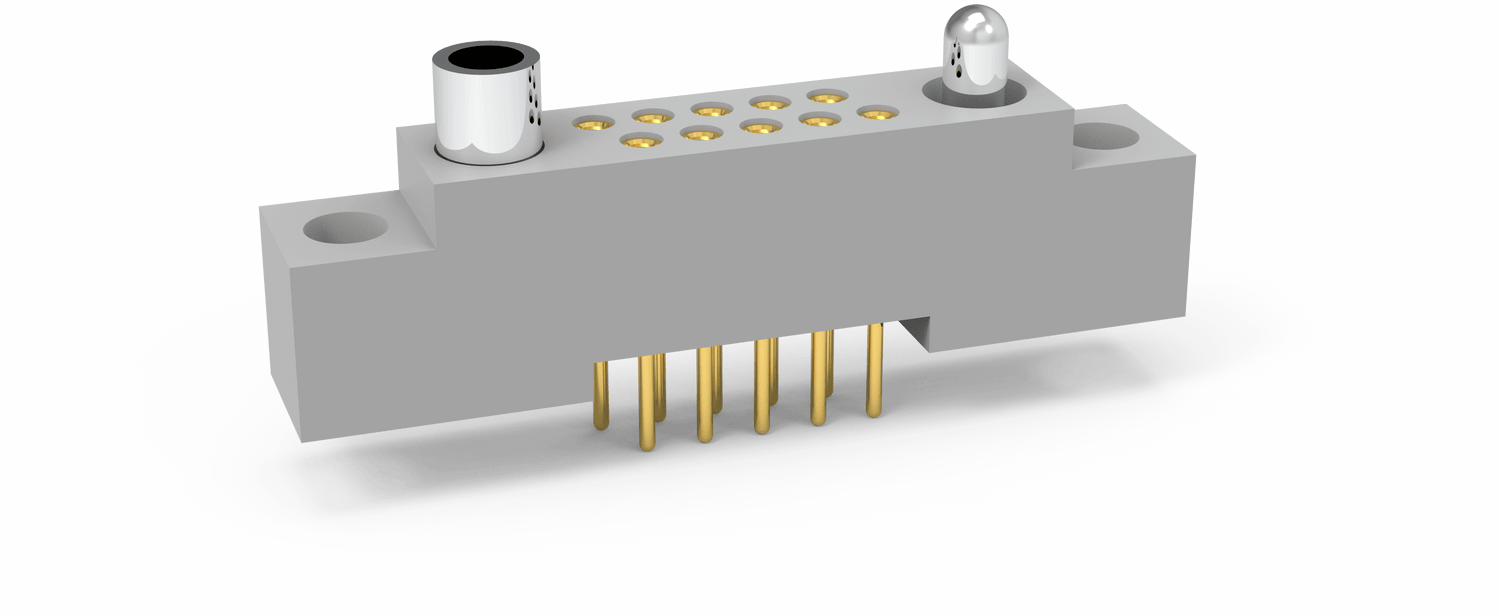

Rectangular PCB .075" (R Series)
Pitch spacing between contacts on AirBorn's Rectangular R-Series product line is 0.075" (1.91mm).
AirBorn's R-Series Rectangular Connector Series is a robust and versatile family of connectors designed to meet the demanding requirements of high-reliability industries.
Key Features:
- Robust and High-Performance Design: Rugged construction to endure harsh environments, including vibration, shock, and extreme temperatures. Compliant with MIL-DTL-55302 standards, ensuring superior quality and reliability.
- Modular and Configurable: Highly customizable configurations to meet a wide range of application needs. Available with different contact layouts, sizes, and densities. Supports both signal and power connections within a single housing.
- Electrical and Mechanical Excellence: Precision-engineered contact system ensures low contact resistance and reliable electrical performance. High current-carrying capacity and low insertion force.
- Diverse Termination Options: Supports multiple termination styles, including: Solder, Crimp, and PCB mount.
Applications:
- Aerospace and Defense: Avionics, radar systems, and mission-critical communication.
- Medical Devices: High-reliability diagnostics and treatment systems.
- Industrial Equipment: Robotics and automation.
- Space: Satellites and spacecraft electronics.
AirBorn's R-Series connectors are ideal for high-performance, rugged applications where reliability, modularity, and flexibility are crucial. They provide a dependable solution for industries where failure is not an option.
| Receptacle (Female) | |
|---|---|
|
Series Designator |
|
|
RM |
.075" Screw Machine PC Connectors |
|
Body |
|
|
Rows |
|
|
2 |
2 Rows |
|
Body Style |
|
|
2 |
Receptacle, Straight, with Mounting Ears |
|
4 |
Receptacle, Straight, without Mounting Ears |
|
Body Material |
|
|
2 |
Polyphenylene sulfide (PPS) |
|
Size |
|
|
010 |
010 |
|
020 |
020 |
|
030 |
030 |
|
040 |
040 |
|
050 |
050 |
|
060 |
060 |
|
070 |
070 |
|
080 |
080 |
|
090 |
090 |
|
100 |
100 |
|
Contacts |
|
|
Contact Type |
|
|
20 |
Socket, Straight, Dip Solder, .109" x .020" dia |
|
21 |
Socket, Straight, Dip Solder, .140" x .020" dia |
|
22 |
Socket, Straight, Dip Solder, .172" x .020" dia |
|
23 |
Socket, Straight, Dip Solder, .250" x .020" dia |
|
24 |
Socket, Straight, Solder Cup |
|
25 |
Socket, Straight, Flex Circuit, .093" x .017" dia |
|
26 |
Socket, Straight, Wire Wrap, .500" x .018" dia |
|
27 |
Socket, Straight, Wire Wrap, .375" x .018" dia |
|
28 |
Socket, Straight, Wire Wrap, .625" x .018" dia |
|
29 |
Socket, Connector Saver, .150" x .025" dia |
|
50 |
Socket, Straight, Dip Solder, .140" x .016" dia |
|
51 |
Socket, Straight, Dip Solder, .172" x .016" dia |
|
53 |
Socket, Straight, Stackable, .212" x .025" dia |
|
54 |
Socket, Straight, Stackable, .244" x .025" dia |
|
55 |
Socket, Straight, Stackable, .275" x .025" dia |
|
64 |
Socket, Straight, Press-Fit, .203" (Board: .093" - .125" thk) |
|
65 |
Socket, Straight, Press-Fit, .323" (Board: .156" - .200" thk) |
|
66 |
Socket, Straight, Press-Fit, .403" (Board: .250" + thk) |
|
Plating Options |
|
|
1 |
Gold Plated Termination |
|
2 |
Pre-Tinned Termination, SnPb alloy (dip solder options only) |
|
3 |
Pre-Tinned Termination, SAC305 alloy (dip solder options only) |
|
Hardware |
|
|
Hardware Style |
|
|
0256 |
None |
|
55 |
Guide Set |
|
57 |
Two Guide Pins |
|
58 |
Two Guide Sockets |
|
29 |
Fixed Jackset |
|
30 |
Fixed Jackset, Reversed |
|
19 |
Two Fixed Jackscrews |
|
20 |
Two Fixed Jacksockets |
|
59 |
Hex Turning Jackset, .200" |
|
60 |
Hex Turning Jackset, Reversed .200" |
|
61 |
Two Hex Turning Jackscrews, .200" |
|
62 |
Two Hex Turning Jacksockets, .200" |
|
64 |
Turning Jackset, .490" |
|
65 |
Turning Jackset, Reversed, .490" |
|
66 |
Two Turning Jackscrews, .490" |
|
67 |
Two Turning Jackscockets, .490" |
|
Polarization |
|
|
00 |
None |
|
01 |
Keying Position - 01 |
|
02 |
Keying Position - 02 |
|
03 |
Keying Position - 03 |
|
04 |
Keying Position - 04 |
|
05 |
Keying Position - 05 |
|
06 |
Keying Position - 06 |
|
07 |
Keying Position - 07 |
|
08 |
Keying Position - 08 |
|
09 |
Keying Position - 09 |
|
11 |
Keying Position - 11 |
|
12 |
Keying Position - 12 |
|
13 |
Keying Position - 13 |
|
14 |
Keying Position - 14 |
|
15 |
Keying Position - 15 |
|
16 |
Keying Position - 16 |
|
17 |
Keying Position - 17 |
|
18 |
Keying Position - 18 |
|
19 |
Keying Position - 19 |
|
20 |
Keying Position - 20 |
|
21 |
Keying Position - 21 |
|
22 |
Keying Position - 22 |
|
23 |
Keying Position - 23 |
|
24 |
Keying Position - 24 |
|
25 |
Keying Position - 25 |
|
26 |
Keying Position - 26 |
|
27 |
Keying Position - 27 |
|
28 |
Keying Position - 28 |
|
29 |
Keying Position - 29 |
|
30 |
Keying Position - 30 |
|
31 |
Keying Position - 31 |
|
32 |
Keying Position - 32 |
|
33 |
Keying Position - 33 |
|
34 |
Keying Position - 34 |
|
35 |
Keying Position - 35 |
|
36 |
Keying Position - 36 |
|
37 |
Keying Position - 37 |
|
38 |
Keying Position - 38 |
|
39 |
Keying Position - 39 |
|
40 |
Keying Position - 40 |
|
41 |
Keying Position - 41 |
|
42 |
Keying Position - 42 |
|
43 |
Keying Position - 43 |
|
44 |
Keying Position - 44 |
|
45 |
Keying Position - 45 |
|
46 |
Keying Position - 46 |
|
47 |
Keying Position - 47 |
|
48 |
Keying Position - 48 |
|
49 |
Keying Position - 49 |
|
50 |
Keying Position - 50 |
|
51 |
Keying Position - 51 |
|
52 |
Keying Position - 52 |
|
53 |
Keying Position - 53 |
|
54 |
Keying Position - 54 |
|
55 |
Keying Position - 55 |
|
56 |
Keying Position - 56 |
|
57 |
Keying Position - 57 |
|
58 |
Keying Position - 58 |
|
59 |
Keying Position - 59 |
|
60 |
Keying Position - 60 |
|
61 |
Keying Position - 61 |
|
62 |
Keying Position - 62 |
|
63 |
Keying Position - 63 |
|
64 |
Keying Position - 64 |
|
65 |
Keying Position - 65 |
|
66 |
Keying Position - 66 |
|
67 |
Keying Position - 67 |
|
68 |
Keying Position - 68 |
|
70 |
Keying Position - 70 |
Catalog Page: ctr010-F (Rev:F)
| PERFORMANCE REFERENCE MIL-DTL-55302 | |
|---|---|
|
CONTACT RATING |
3-amperes (2 amperes for 0.016" diameter) |
|
SOLDERABILITY |
Terminals (except wire wrap, crimp, and stackables) tested in accordance with MIL-STD-202, method 208 |
|
WIRE SIZE |
Stranded #26 AWG |
|
OPERATING TEMPERATURE |
-65°C to +125°C or -85°F to +257°F |
|
TEST VOLTAGE |
750V (RMS) 60 Hz at sea level. 250V (RMS) 60 Hz at 70,000 feet. Tested in accordance with SAE AS 13441, method #3001 |
|
INSULATION RESISTANCE |
5,000 megohms minimum at 500 VDC. Tested in accordance with SAE AS 13441, method #3003 |
|
DURABILITY |
500 connector mating cycles |
|
VIBRATION |
Mated connectors, test condition III. Tested in accordance with SAE AS 13441, method #2005 |
|
SHOCK |
Mated connectors, test condition G. Tested in accordance with SAE AS 13441, method #2004 |
|
SALT SPRAY |
Mated connectors, test condition B. Tested in accordance with SAE AS 13441, method #1001 |
|
HUMIDITY |
Test type II, (except steps 7a and 7b not required). Tested in accordance with SAE AS 13441, method #1002 |
|
TEMPERATURE CYCLING |
Mated connectors, test condition A. Tested in accordance with SAE AS 13441, method #1003 |
|
CONTACT RESISTANCE |
0.015 ohms maximum (interface measurement) at 3 amperes. Tested in accordance with SAE AS 13441, method #3004 |
|
CONTACT MATING FORCE |
2.5 oz. x number of contacts average |
|
OUTGASSING |
The entire connector assembly shall have maximum total mass loss (TML) of 1.0 percent of the original specimen mass and shall have a maximum volatile condensable material (VCM) content of 0.1 percent of the original specimen mass. |
|
SIZES 50 AND LARGER |
Upon engagement, center area of mating faces may remain open 0.010" to 0.025" due to slight flexing of molding. Vibration or shock should provide complete closure. |
|
GUIDES AND JACKS |
If location of pin or socket contacts is reversed, location of male and female guides or jacks is also reversed; except when using D shaped polarized guides. When polarized positions are changed, apply Loctite® 242-12 or equivalent to threads. |
| MATERIALS & FINISHES | |
|---|---|
|
PIN CONTACTS |
BeCu, per ASTM-B196, ASTM B 197/B 197M-, or brass alloy per ASTM B 16/B 16M or ASTM-B134 |
|
SOCKET CONTACTS |
BeCu per ASTM-B194 and/or ASTM-B 196, ASTM B 197/B 197M-, or brass per ASTM B 16/B 16M or ASTM-B134 |
|
CONTACT FINISHES |
Gold plate per ASTM B 488-, SAE AMS 2422, or localized finish per MIL-DTL-55302 and associated slash sheet |
|
SOLDER |
Sn/Pb alloy - 63% tin, 37% lead composition [x]. SAC305 - 96.5% tin, 3% silver, 0.5% copper composition |
|
MOLDED INSULATORS |
Glass filled polyphenylene sulfide per MIL-M-24519, type GST-40F |
|
JACKSCREWS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
JACKSOCKETS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
JACKSCREW KNOBS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
GUIDE PINS, GUIDE SOCKETS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
GUIDE SOCKETS, POLARIZED "D" TYPE |
BeCu per ASTM-B196, ASTM B 197/B 197M-, nickel plated per SAE AMS-QQ-N-290 |
|
CONNECTOR MARKINGS |
Contact numbers are stamped on the side of the connector. Numbers are stamped on the low-numbered side only on 2-row and 3-row right-angle connectors. |
|
TOLERANCES |
Angles: ±5°, |
