JRH Electronics | SKU: RM382-206-471-8800

RM382-206-471-8800

Qty	Price (USD)	Discount	Ext. Price (USD)
1	$481.42	-	-
10	$442.91	--
25	$423.65	--
50	$361.07	--
100	$322.55	--
250	$264.78	--
500	$216.64	--
1,000	$192.57	--

--

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Availability

Our minimum required order quantity is seven (7) pieces.

Average lead time is 6-8 weeks from time of order.

If a portion of your order is already in stock, we will ship that immediately, with the remainder of your order being shipped once back in stock.

Products will ship from JRH Electronics, a Molex (AirBorn) authorized distributor.

Standard, expedited, and express delivery options are available. See shipping rates.

Datasheets

Part Number Buildup

Dimensional Information

Hardware Details (pg 1)

Hardware Details (pg 2)

Hardware Polarization

Contact Types

Performance Specification

Materials Specification

Gender

Receptacle - Female

# Positions

206

Pitch: .075" (1.91mm)

# Rows

Rows

Orientation

Horizontal - Right Angle

Termination

Plated Thru Hole (PTH)

RoHS?

Yes

Product Description

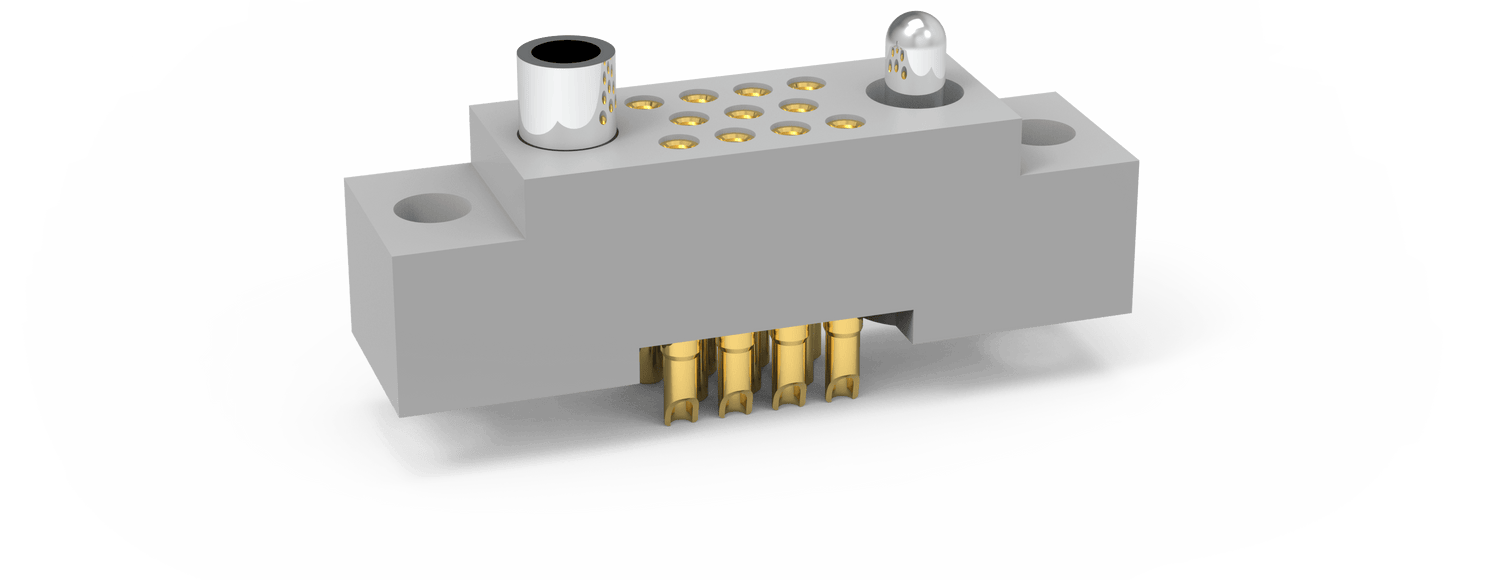

This RM382 connector is from a family of receptacle (female), pcb mount, rugged rectangular connectors that have 3 row(s) of contacts spaced at 0.075-1.91mm. This connector has plated thru hole (pth) termination with a quantity of 206 (socket, right angle, dip solder, .250" x .020" dia) contacts. Attachment hardware on this connector is fixed jack set.

Rectangular PCB .075" (R Series)

Pitch spacing between contacts on AirBorn's Rectangular R-Series product line is 0.075" (1.91mm).

AirBorn's R-Series Rectangular Connector Series is a robust and versatile family of connectors designed to meet the demanding requirements of high-reliability industries.

Key Features:

Robust and High-Performance Design: Rugged construction to endure harsh environments, including vibration, shock, and extreme temperatures. Compliant with MIL-DTL-55302 standards, ensuring superior quality and reliability.
Modular and Configurable: Highly customizable configurations to meet a wide range of application needs. Available with different contact layouts, sizes, and densities. Supports both signal and power connections within a single housing.
Electrical and Mechanical Excellence: Precision-engineered contact system ensures low contact resistance and reliable electrical performance. High current-carrying capacity and low insertion force.
Diverse Termination Options: Supports multiple termination styles, including: Solder, Crimp, and PCB mount.

Applications:

Aerospace and Defense: Avionics, radar systems, and mission-critical communication.
Medical Devices: High-reliability diagnostics and treatment systems.
Industrial Equipment: Robotics and automation.
Space: Satellites and spacecraft electronics.

AirBorn's R-Series connectors are ideal for high-performance, rugged applications where reliability, modularity, and flexibility are crucial. They provide a dependable solution for industries where failure is not an option.

Part Number Buildup structure as found in Molex's AirBorn product catalog.
Receptacle (Female)
Series Designator
RM	.075" Screw Machine PC Connectors
Body
	Rows
3	3 Rows
	Body Style
6	Receptacle, Right Angle, with Mounting Ears
8	Receptacle, Right Angle, without Mounting Ears
	Body Material
2	Polyphenylene sulfide (PPS)
Size
011	11 Contacts
023	23 Contacts
035	35 Contacts
047	47 Contacts
059	59 Contacts
071	71 Contacts
080	80 Contacts
092	92 Contacts
104	104 Contacts
122	122 Contacts
140	140 Contacts
152	152 Contacts
182	182 Contacts
206	206 Contacts
Contacts
	Contact Type
44	Socket, Right Angle, Dip Solder, .109" x .020" dia
45	Socket, Right Angle, Dip Solder, .140" x .020" dia
46	Socket, Right Angle, Dip Solder, .172" x .020" dia
47	Socket, Right Angle, Dip Solder, .250" x .020" dia
	Plating Options
1	Gold Plated Termination
2	Pre-Tinned Termination, SnPb alloy (dip solder options only)
3	Pre-Tinned Termination, SAC305 alloy (dip solder options only)
Hardware
	Hardware Style
0256	None
55	Guide Set
57	Two Guide Pins
58	Two Guide Sockets
29	Fixed Jackset
30	Fixed Jackset, Reversed
19	Two Fixed Jackscrews
20	Two Fixed Jacksockets
59	Hex Turning Jackset, .200"
60	Hex Turning Jackset, Reversed .200"
61	Two Hex Turning Jackscrews, .200"
62	Two Hex Turning Jacksockets, .200"
64	Turning Jackset, .490"
65	Turning Jackset, Reversed, .490"
66	Two Turning Jackscrews, .490"
67	Two Turning Jackscockets, .490"
	Polarization
00	None
01	Keying Position - 01
02	Keying Position - 02
03	Keying Position - 03
04	Keying Position - 04
05	Keying Position - 05
06	Keying Position - 06
07	Keying Position - 07
08	Keying Position - 08
09	Keying Position - 09
11	Keying Position - 11
12	Keying Position - 12
13	Keying Position - 13
14	Keying Position - 14
15	Keying Position - 15
16	Keying Position - 16
17	Keying Position - 17
18	Keying Position - 18
19	Keying Position - 19
20	Keying Position - 20
21	Keying Position - 21
22	Keying Position - 22
23	Keying Position - 23
24	Keying Position - 24
25	Keying Position - 25
26	Keying Position - 26
27	Keying Position - 27
28	Keying Position - 28
29	Keying Position - 29
30	Keying Position - 30
31	Keying Position - 31
32	Keying Position - 32
33	Keying Position - 33
34	Keying Position - 34
35	Keying Position - 35
36	Keying Position - 36
37	Keying Position - 37
38	Keying Position - 38
39	Keying Position - 39
40	Keying Position - 40
41	Keying Position - 41
42	Keying Position - 42
43	Keying Position - 43
44	Keying Position - 44
45	Keying Position - 45
46	Keying Position - 46
47	Keying Position - 47
48	Keying Position - 48
49	Keying Position - 49
50	Keying Position - 50
51	Keying Position - 51
52	Keying Position - 52
53	Keying Position - 53
54	Keying Position - 54
55	Keying Position - 55
56	Keying Position - 56
57	Keying Position - 57
58	Keying Position - 58
59	Keying Position - 59
60	Keying Position - 60
61	Keying Position - 61
62	Keying Position - 62
63	Keying Position - 63
64	Keying Position - 64
65	Keying Position - 65
66	Keying Position - 66
67	Keying Position - 67
68	Keying Position - 68
70	Keying Position - 70
Options
076	PWB Mounting Holes, .100" dia (cross drilled)

Catalog Page: ctr024-F (Rev:G)

AirBorn R Series meets or exceeds MIL-DTL-55302 performance specifications.
PERFORMANCE REFERENCE MIL-DTL-55302
CONTACT RATING	3-amperes (2 amperes for 0.016" diameter)
SOLDERABILITY	Terminals (except wire wrap, crimp, and stackables) tested in accordance with MIL-STD-202, method 208
WIRE SIZE	Stranded #26 AWG
OPERATING TEMPERATURE	-65°C to +125°C or -85°F to +257°F
TEST VOLTAGE	750V (RMS) 60 Hz at sea level. 250V (RMS) 60 Hz at 70,000 feet. Tested in accordance with SAE AS 13441, method #3001
INSULATION RESISTANCE	5,000 megohms minimum at 500 VDC. Tested in accordance with SAE AS 13441, method #3003
DURABILITY	500 connector mating cycles
VIBRATION	Mated connectors, test condition III. Tested in accordance with SAE AS 13441, method #2005
SHOCK	Mated connectors, test condition G. Tested in accordance with SAE AS 13441, method #2004
SALT SPRAY	Mated connectors, test condition B. Tested in accordance with SAE AS 13441, method #1001
HUMIDITY	Test type II, (except steps 7a and 7b not required). Tested in accordance with SAE AS 13441, method #1002
TEMPERATURE CYCLING	Mated connectors, test condition A. Tested in accordance with SAE AS 13441, method #1003
CONTACT RESISTANCE	0.015 ohms maximum (interface measurement) at 3 amperes. Tested in accordance with SAE AS 13441, method #3004
CONTACT MATING FORCE	2.5 oz. x number of contacts average
OUTGASSING	The entire connector assembly shall have maximum total mass loss (TML) of 1.0 percent of the original specimen mass and shall have a maximum volatile condensable material (VCM) content of 0.1 percent of the original specimen mass.
SIZES 50 AND LARGER	Upon engagement, center area of mating faces may remain open 0.010" to 0.025" due to slight flexing of molding. Vibration or shock should provide complete closure.
GUIDES AND JACKS	If location of pin or socket contacts is reversed, location of male and female guides or jacks is also reversed; except when using D shaped polarized guides. When polarized positions are changed, apply Loctite® 242-12 or equivalent to threads.

Download Performance Specification


MATERIALS & FINISHES
PIN CONTACTS	BeCu, per ASTM-B196, ASTM B 197/B 197M-, or brass alloy per ASTM B 16/B 16M or ASTM-B134
SOCKET CONTACTS	BeCu per ASTM-B194 and/or ASTM-B 196, ASTM B 197/B 197M-, or brass per ASTM B 16/B 16M or ASTM-B134
CONTACT FINISHES	Gold plate per ASTM B 488-, SAE AMS 2422, or localized finish per MIL-DTL-55302 and associated slash sheet
SOLDER	Sn/Pb alloy - 63% tin, 37% lead composition [x]. SAC305 - 96.5% tin, 3% silver, 0.5% copper composition
MOLDED INSULATORS	Glass filled polyphenylene sulfide per MIL-M-24519, type GST-40F
JACKSCREWS	Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35
JACKSOCKETS	Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35
JACKSCREW KNOBS	Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35
GUIDE PINS, GUIDE SOCKETS	Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35
GUIDE SOCKETS, POLARIZED "D" TYPE	BeCu per ASTM-B196, ASTM B 197/B 197M-, nickel plated per SAE AMS-QQ-N-290
CONNECTOR MARKINGS	Contact numbers are stamped on the side of the connector. Numbers are stamped on the low-numbered side only on 2-row and 3-row right-angle connectors.
TOLERANCES	Angles: ±5°, Decimals: ±0.010”, Fractions: ±1/64”. Wire lengths: --insulated/stranded: +1.0”/-0.0” --uninsulated/solid: +0.2”/-0.0”

Download materials Specification
