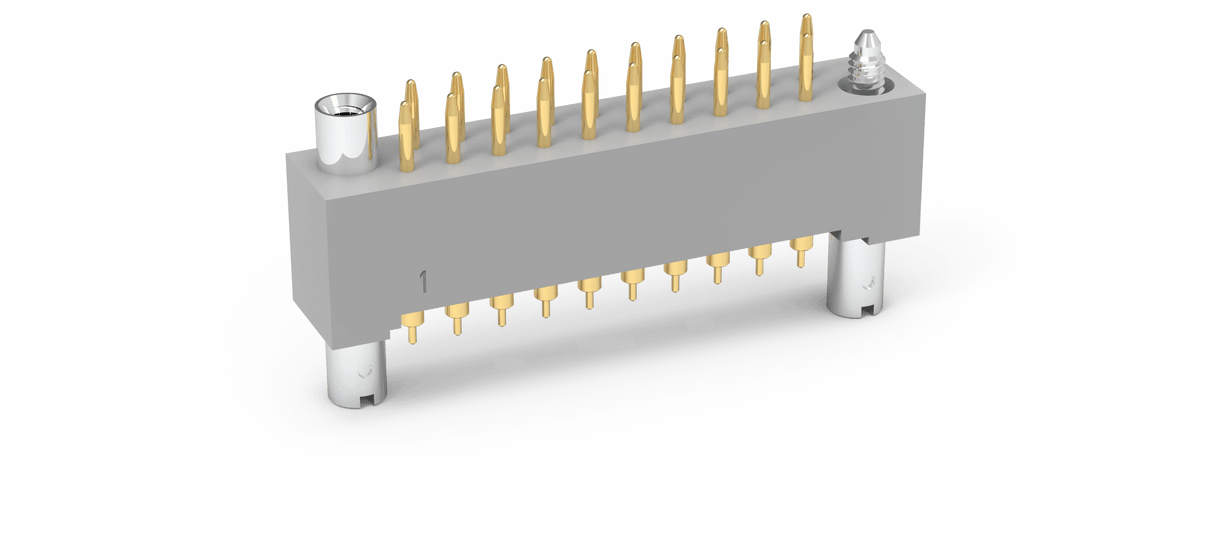

M55302/63E60L
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $200.83 | -- | $200.83 |
| 10 | $144.59 | 28% | $1,445.90 |
| 25 | $114.48 | 43% | $2,862.00 |
| 50 | $94.40 | 53% | $4,720.00 |
| 100 | $80.32 | 60% | $8,032.00 |
| 250 | $66.27 | 67% | $16,567.50 |
| 500 | $60.24 | 70% | $30,120.00 |
| 1,000 | $58.24 | 71% | $58,240.00 |
$200.83ea (7 pieces: $1,405.81)
Couldn't load pickup availability
Availability
Availability
Products will ship from AirBorn authorized distributors.
No min order quantity for items in stock.
Out of stock items, while still orderable, will have a min order quantity specified by AirBornStock.com.
Default lead time is eight weeks.
Out of stock items will have lead time specified by AirBornStock.com.
Standard, expedited, and express delivery options are available. See shipping rates.
M55302/63E60L
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator
WTA -> Plug, Straight, No Mounting Ears
Size
10 -> 10
14 -> 14
20 -> 20
24 -> 24
26 -> 26
30 -> 30
36 -> 36
40 -> 40
44 -> 44
50 -> 50
54 -> 54
56 -> 56
60 -> 60
66 -> 66
70 -> 70
Contacts
Contact Type
PC -> Pin, Straight, Solder Cup, (.035"I.D.)
PD5 -> Pin, Straight, Dip Solder, .078" x .027" dia
PD7 -> Pin, Straight, Dip Solder, .109" x .027" dia
PD9 -> Pin, Straight, Dip Solder, .140" x .027" dia
PD11 -> Pin, Straight, Dip Solder, .172" x .027" dia
PD13 -> Pin, Straight, Dip Solder, .203" x .027" dia
PD15 -> Pin, Straight, Dip Solder, .234" x .027" dia
PD20 -> Pin, Straight, Dip Solder, .312" x .027" dia
PF3 -> Pin, Straight, Flex Circuit, .050" x .027" dia
PF6 -> Pin, Straight, Flex Circuit, .093" x .027" dia
PF8 -> Pin, Straight, Flex Circuit, .125" x .027" dia
PW34 -> Pin, Straight, Wire Wrap, .531"
PW40 -> Pin, Straight, Wire Wrap, .625"
Hardware
JT -> Turning Jackset, .500"
JTA -> Turning Jackset, .200"
JTB -> Hex Turning Jackset, .200"
JTC -> Hex Turning Jackset, .500"
JTL -> Turning Jackset, .700"
Options
443 -> Polarizing pin installed in contact position noted by dash number (ex. WT10PC443-1).
444 -> Conact position noted by the dash number is left open (to mate with 443).
B82 -> Termination face sealed against conformal coating.
CD -> Cross drilled connector for hold down screws.
D01 -> Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with 63/37 or 60/40 solder.
P39 -> Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with SAC305 solder (lead free).
D54 -> Combine B82 & D01 options
G69 -> Solder cups fixed in an outward orientation (otherwise contacts will rotate).
Catalog Page: ctw016-M (Rev:D)
