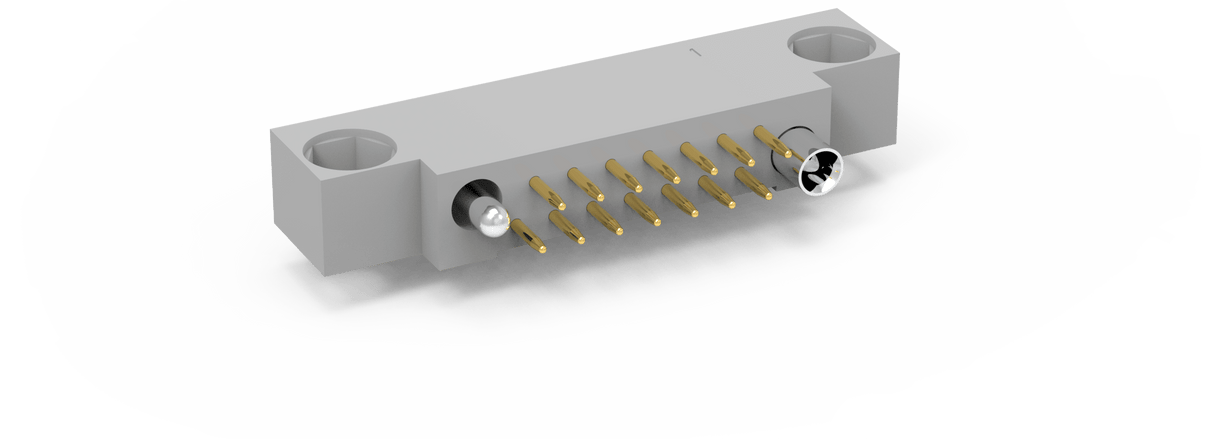

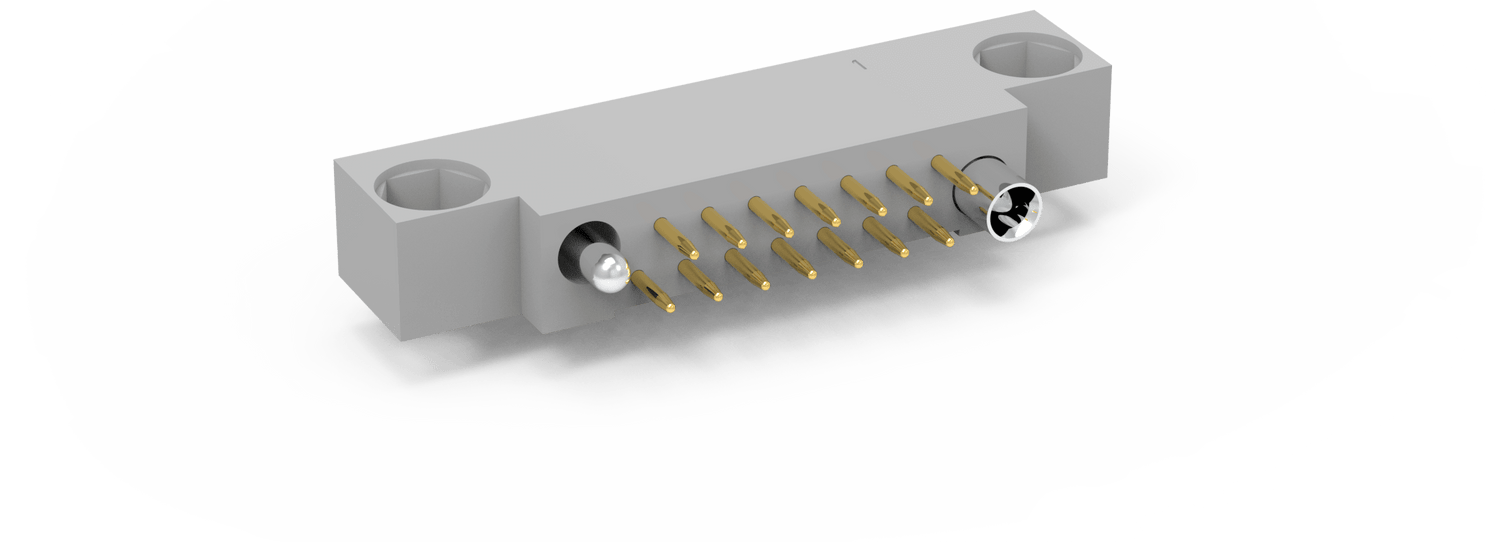

WTB24PR7J
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $37.95 | - | - |
| 10 | $27.32 | -- | |
| 25 | $21.63 | -- | |
| 50 | $17.84 | -- | |
| 100 | $15.18 | -- | |
| 250 | $12.52 | -- | |
| 500 | $11.39 | -- | |
| 1,000 | $11.01 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Products will ship from JRH Electronics, an AirBorn authorized distributor.
Minimum order quantity for all products is seven (7).
Lead time is 6-8 weeks.
Standard, expedited, and express delivery options are available. See shipping rates.
WTB24PR7J
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator
WTB -> Plug, Right Angle, With Mounting Ears
Size
10 -> 10
14 -> 14
20 -> 20
24 -> 24
26 -> 26
30 -> 30
36 -> 36
40 -> 40
44 -> 44
50 -> 50
54 -> 54
56 -> 56
60 -> 60
66 -> 66
70 -> 70
Contacts
Contact Type
PRC -> Pin, Right Angle, Solder Cup, (.035"I.D.)
PR7 -> Pin, Right Angle, Dip Solder, .109" x .025" dia
PR9 -> Pin, Right Angle, Dip Solder, .140" x .025" dia
PR11 -> Pin, Right Angle, Dip Solder, .172" x .025" dia
PR13 -> Pin, Right Angle, Dip Solder, .203" x .025" dia
PR15 -> Pin, Right Angle, Dip Solder, .234" x .025" dia
PR23 -> Pin, Right Angle, Dip Solder, .359" x .025" dia
PDR30 -> Pin, Right Angle, Dip Solder, .470" x .025" dia
PRW33 -> Pin, Right Angle, Wire Wrap, .515"
PRW40 -> Pin, Right Angle, Wire Wrap, .625"
Hardware
SY -> Guide Set
SY-1 -> Guide Set, Polarized/Keyed (orientation# 1)
SY-2 -> Guide Set, Polarized/Keyed (orientation# 2)
SY-3 -> Guide Set, Polarized/Keyed (orientation# 3)
SY-4 -> Guide Set, Polarized/Keyed (orientation# 4)
SY-5 -> Guide Set, Polarized/Keyed (orientation# 5)
SY-6 -> Guide Set, Polarized/Keyed (orientation# 6)
SY-7 -> Guide Set, Polarized/Keyed (orientation# 7)
SY-8 -> Guide Set, Polarized/Keyed (orientation# 8)
SY-9 -> Guide Set, Polarized/Keyed (orientation# 9)
SY-10 -> Guide Set, Polarized/Keyed (orientation# 10)
SY-11 -> Guide Set, Polarized/Keyed (orientation# 11)
SY-12 -> Guide Set, Polarized/Keyed (orientation# 12)
SY-13 -> Guide Set, Polarized/Keyed (orientation# 13)
SY-14 -> Guide Set, Polarized/Keyed (orientation# 14)
SY-15 -> Guide Set, Polarized/Keyed (orientation# 15)
SY-16 -> Guide Set, Polarized/Keyed (orientation# 16)
SY-17 -> Guide Set, Polarized/Keyed (orientation# 17)
SY-18 -> Guide Set, Polarized/Keyed (orientation# 18)
SY-19 -> Guide Set, Polarized/Keyed (orientation# 19)
SY-20 -> Guide Set, Polarized/Keyed (orientation# 20)
SY-21 -> Guide Set, Polarized/Keyed (orientation# 21)
SY-22 -> Guide Set, Polarized/Keyed (orientation# 22)
SY-23 -> Guide Set, Polarized/Keyed (orientation# 23)
SY-24 -> Guide Set, Polarized/Keyed (orientation# 24)
SY-25 -> Guide Set, Polarized/Keyed (orientation# 25)
SY-26 -> Guide Set, Polarized/Keyed (orientation# 26)
SY-27 -> Guide Set, Polarized/Keyed (orientation# 27)
SY-28 -> Guide Set, Polarized/Keyed (orientation# 28)
SY-29 -> Guide Set, Polarized/Keyed (orientation# 29)
SY-30 -> Guide Set, Polarized/Keyed (orientation# 30)
SY-31 -> Guide Set, Polarized/Keyed (orientation# 31)
SY-32 -> Guide Set, Polarized/Keyed (orientation# 32)
SY-33 -> Guide Set, Polarized/Keyed (orientation# 33)
SY-34 -> Guide Set, Polarized/Keyed (orientation# 34)
SY-35 -> Guide Set, Polarized/Keyed (orientation# 35)
SY-36 -> Guide Set, Polarized/Keyed (orientation# 36)
SY-37 -> Guide Set, Polarized/Keyed (orientation# 37)
SY-38 -> Guide Set, Polarized/Keyed (orientation# 38)
SY-39 -> Guide Set, Polarized/Keyed (orientation# 39)
SY-40 -> Guide Set, Polarized/Keyed (orientation# 40)
SY-41 -> Guide Set, Polarized/Keyed (orientation# 41)
SY-42 -> Guide Set, Polarized/Keyed (orientation# 42)
SY-43 -> Guide Set, Polarized/Keyed (orientation# 43)
SY-44 -> Guide Set, Polarized/Keyed (orientation# 44)
SY-45 -> Guide Set, Polarized/Keyed (orientation# 45)
SY-46 -> Guide Set, Polarized/Keyed (orientation# 46)
SY-47 -> Guide Set, Polarized/Keyed (orientation# 47)
SY-48 -> Guide Set, Polarized/Keyed (orientation# 48)
SY-49 -> Guide Set, Polarized/Keyed (orientation# 49)
SY-50 -> Guide Set, Polarized/Keyed (orientation# 50)
SY-51 -> Guide Set, Polarized/Keyed (orientation# 51)
SY-52 -> Guide Set, Polarized/Keyed (orientation# 52)
SY-53 -> Guide Set, Polarized/Keyed (orientation# 53)
SY-54 -> Guide Set, Polarized/Keyed (orientation# 54)
SY-55 -> Guide Set, Polarized/Keyed (orientation# 55)
SY-56 -> Guide Set, Polarized/Keyed (orientation# 56)
SY-57 -> Guide Set, Polarized/Keyed (orientation# 57)
SY-58 -> Guide Set, Polarized/Keyed (orientation# 58)
SY-59 -> Guide Set, Polarized/Keyed (orientation# 59)
SY-60 -> Guide Set, Polarized/Keyed (orientation# 60)
SY-61 -> Guide Set, Polarized/Keyed (orientation# 61)
SY-62 -> Guide Set, Polarized/Keyed (orientation# 62)
SY-63 -> Guide Set, Polarized/Keyed (orientation# 63)
SY-64 -> Guide Set, Polarized/Keyed (orientation# 64)
SYL -> Guide Set, Long
SYL-1 -> Guide Set, Long, Polarized/Keyed (orientation# 1)
SYL-2 -> Guide Set, Long, Polarized/Keyed (orientation# 2)
SYL-3 -> Guide Set, Long, Polarized/Keyed (orientation# 3)
SYL-4 -> Guide Set, Long, Polarized/Keyed (orientation# 4)
SYL-5 -> Guide Set, Long, Polarized/Keyed (orientation# 5)
SYL-6 -> Guide Set, Long, Polarized/Keyed (orientation# 6)
SYL-7 -> Guide Set, Long, Polarized/Keyed (orientation# 7)
SYL-8 -> Guide Set, Long, Polarized/Keyed (orientation# 8)
SYL-9 -> Guide Set, Long, Polarized/Keyed (orientation# 9)
SYL-10 -> Guide Set, Long, Polarized/Keyed (orientation# 10)
SYL-11 -> Guide Set, Long, Polarized/Keyed (orientation# 11)
SYL-12 -> Guide Set, Long, Polarized/Keyed (orientation# 12)
SYL-13 -> Guide Set, Long, Polarized/Keyed (orientation# 13)
SYL-14 -> Guide Set, Long, Polarized/Keyed (orientation# 14)
SYL-15 -> Guide Set, Long, Polarized/Keyed (orientation# 15)
SYL-16 -> Guide Set, Long, Polarized/Keyed (orientation# 16)
SYL-17 -> Guide Set, Long, Polarized/Keyed (orientation# 17)
SYL-18 -> Guide Set, Long, Polarized/Keyed (orientation# 18)
SYL-19 -> Guide Set, Long, Polarized/Keyed (orientation# 19)
SYL-20 -> Guide Set, Long, Polarized/Keyed (orientation# 20)
SYL-21 -> Guide Set, Long, Polarized/Keyed (orientation# 21)
SYL-22 -> Guide Set, Long, Polarized/Keyed (orientation# 22)
SYL-23 -> Guide Set, Long, Polarized/Keyed (orientation# 23)
SYL-24 -> Guide Set, Long, Polarized/Keyed (orientation# 24)
SYL-25 -> Guide Set, Long, Polarized/Keyed (orientation# 25)
SYL-26 -> Guide Set, Long, Polarized/Keyed (orientation# 26)
SYL-27 -> Guide Set, Long, Polarized/Keyed (orientation# 27)
SYL-28 -> Guide Set, Long, Polarized/Keyed (orientation# 28)
SYL-29 -> Guide Set, Long, Polarized/Keyed (orientation# 29)
SYL-30 -> Guide Set, Long, Polarized/Keyed (orientation# 30)
SYL-31 -> Guide Set, Long, Polarized/Keyed (orientation# 31)
SYL-32 -> Guide Set, Long, Polarized/Keyed (orientation# 32)
SYL-33 -> Guide Set, Long, Polarized/Keyed (orientation# 33)
SYL-34 -> Guide Set, Long, Polarized/Keyed (orientation# 34)
SYL-35 -> Guide Set, Long, Polarized/Keyed (orientation# 35)
SYL-36 -> Guide Set, Long, Polarized/Keyed (orientation# 36)
SYL-37 -> Guide Set, Long, Polarized/Keyed (orientation# 37)
SYL-38 -> Guide Set, Long, Polarized/Keyed (orientation# 38)
SYL-39 -> Guide Set, Long, Polarized/Keyed (orientation# 39)
SYL-40 -> Guide Set, Long, Polarized/Keyed (orientation# 40)
SYL-41 -> Guide Set, Long, Polarized/Keyed (orientation# 41)
SYL-42 -> Guide Set, Long, Polarized/Keyed (orientation# 42)
SYL-43 -> Guide Set, Long, Polarized/Keyed (orientation# 43)
SYL-44 -> Guide Set, Long, Polarized/Keyed (orientation# 44)
SYL-45 -> Guide Set, Long, Polarized/Keyed (orientation# 45)
SYL-46 -> Guide Set, Long, Polarized/Keyed (orientation# 46)
SYL-47 -> Guide Set, Long, Polarized/Keyed (orientation# 47)
SYL-48 -> Guide Set, Long, Polarized/Keyed (orientation# 48)
SYL-49 -> Guide Set, Long, Polarized/Keyed (orientation# 49)
SYL-50 -> Guide Set, Long, Polarized/Keyed (orientation# 50)
SYL-51 -> Guide Set, Long, Polarized/Keyed (orientation# 51)
SYL-52 -> Guide Set, Long, Polarized/Keyed (orientation# 52)
SYL-53 -> Guide Set, Long, Polarized/Keyed (orientation# 53)
SYL-54 -> Guide Set, Long, Polarized/Keyed (orientation# 54)
SYL-55 -> Guide Set, Long, Polarized/Keyed (orientation# 55)
SYL-56 -> Guide Set, Long, Polarized/Keyed (orientation# 56)
SYL-57 -> Guide Set, Long, Polarized/Keyed (orientation# 57)
SYL-58 -> Guide Set, Long, Polarized/Keyed (orientation# 58)
SYL-59 -> Guide Set, Long, Polarized/Keyed (orientation# 59)
SYL-60 -> Guide Set, Long, Polarized/Keyed (orientation# 60)
SYL-61 -> Guide Set, Long, Polarized/Keyed (orientation# 61)
SYL-62 -> Guide Set, Long, Polarized/Keyed (orientation# 62)
SYL-63 -> Guide Set, Long, Polarized/Keyed (orientation# 63)
SYL-64 -> Guide Set, Long, Polarized/Keyed (orientation# 64)
JT -> Turning Jackset, .435"
JTA -> Turning Jackset, .135"
JTB -> Hex Turning Jackset, .135"
JTC -> Hex Turning Jackset, .435"
JTL -> Turning Jackset, Long, .635"
Options
443 -> Polarizing pin installed in contact position noted by dash number (ex. WT10PC443-1).
444 -> Conact position noted by the dash number is left open (to mate with 443).
B82 -> Termination face sealed against conformal coating.
CD -> Cross drilled connector for hold down screws.
D01 -> Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with 63/37 or 60/40 solder.
P39 -> Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with SAC305 solder (lead free).
D54 -> Combine B82 & D01 options
G69 -> Solder cups fixed in an outward orientation (otherwise contacts will rotate).
Catalog Page: ctw030-M (Rev:D)
