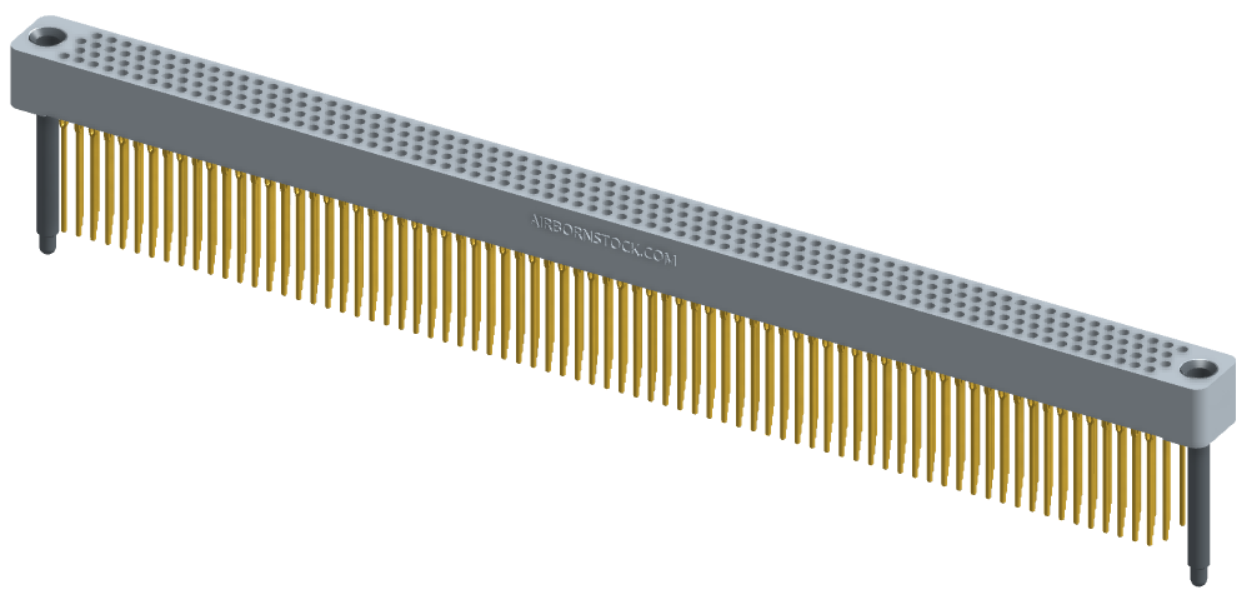

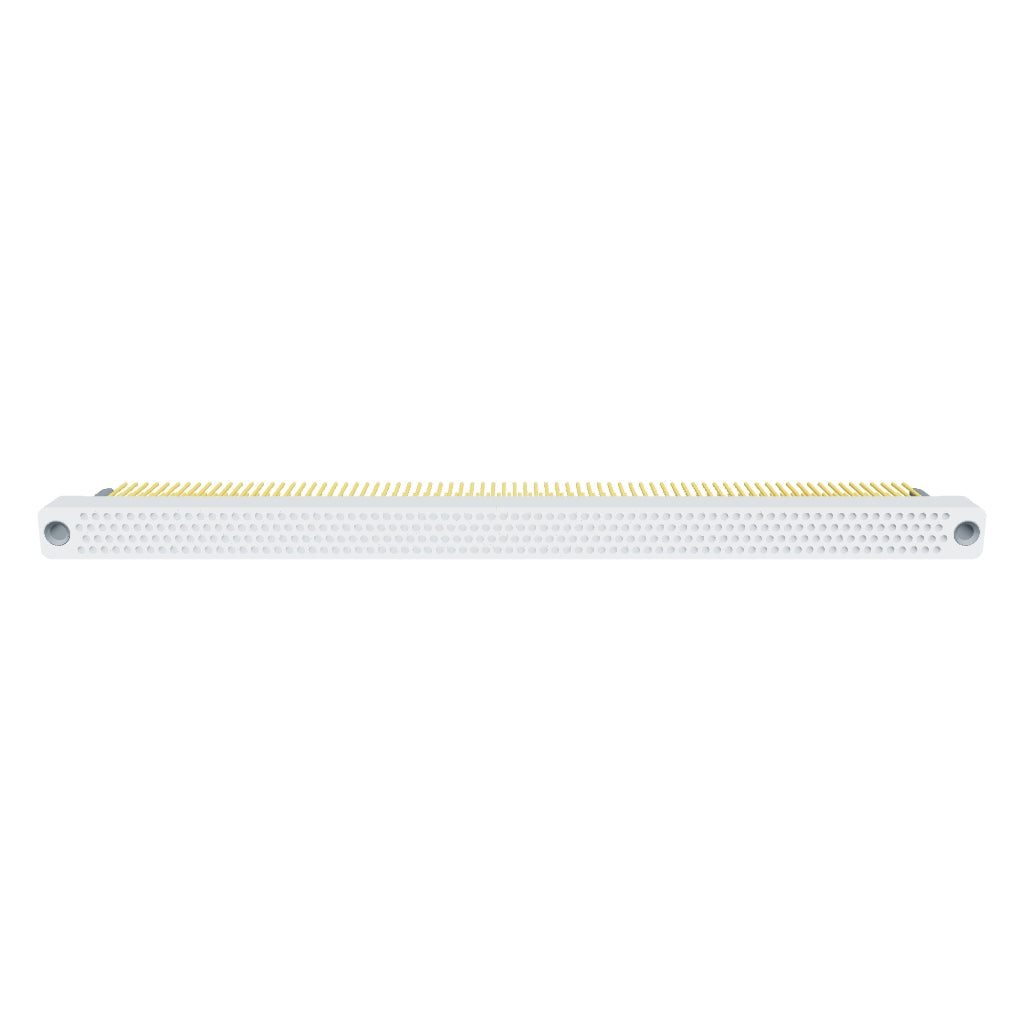

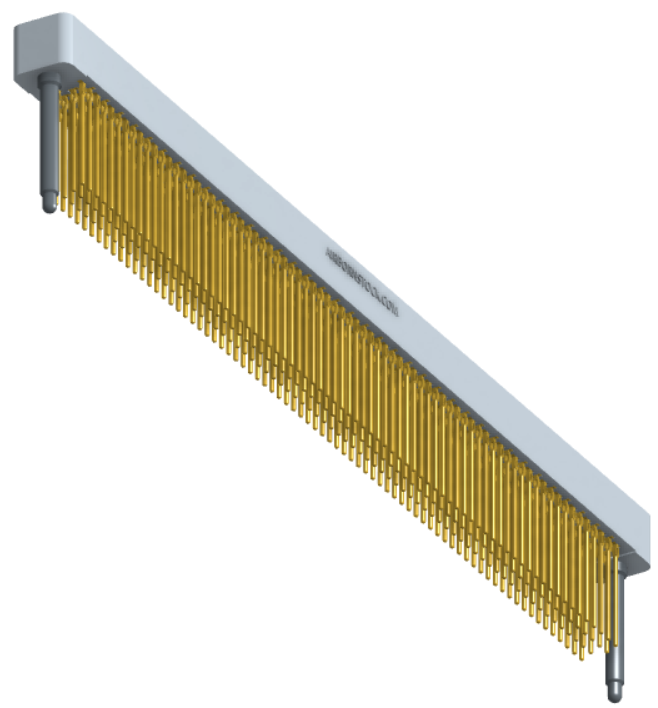

RC422-300-371-46MT
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $1,285.82 | - | - |
| 10 | $1,182.95 | -- | |
| 25 | $1,118.66 | -- | |
| 50 | $1,028.66 | -- | |
| 100 | $900.07 | -- | |
| 250 | $771.49 | -- | |
| 500 | $642.91 | -- | |
| 1,000 | $450.04 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Our minimum required order quantity is seven (7) pieces.
Average lead time is 6-8 weeks from time of order.
If a portion of your order is already in stock, we will ship that immediately, with the remainder of your order being shipped once back in stock.
Products will ship from JRH Electronics, a Molex (AirBorn) authorized distributor.
Standard, expedited, and express delivery options are available. See shipping rates.
RC422-300-371-46MT
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
Product Description
Stackable Rectangular PCB .075" (RC & RCII Series)
| Male / Female | |
|---|---|
|
Series Designator |
|
|
RC422 |
.075" Stackable Compliant Full-Profile Board Mounted Connectors |
|
Configuration |
|
|
Configuration |
|
|
028 |
4 Rows / 7 Columns |
|
052 |
4 Rows / 13 Columns |
|
076 |
4 Rows / 19 Columns |
|
100 |
4 Rows / 25 Columns |
|
128 |
4 Rows / 32 Columns |
|
152 |
4 Rows / 38 Columns |
|
200 |
4 Rows / 50 Columns |
|
252 |
4 Rows / 63 Columns |
|
300 |
4 Rows / 75 Columns |
|
Contacts |
|
|
Contact Type |
|
|
20 |
Socket, Straight, Press-Fit, Tail .270" |
|
21 |
Socket, Straight, Press-Fit, Tail .300" |
|
22 |
Socket, Straight, Press-Fit, Tail .400" |
|
23 |
Socket, Straight, Press-Fit, Tail .500" |
|
24 |
Socket, Straight, Press-Fit, Tail .700" |
|
25 |
Socket, Straight, Press-Fit, Tail .800" |
|
26 |
Socket, Straight, Press-Fit, Tail .900" |
|
27 |
Socket, Straight, Press-Fit, Tail .600" |
|
28 |
Socket, Straight, Press-Fit, Tail 1.100" |
|
30 |
Socket, Straight, Press-Fit, Tail .270" |
|
31 |
Socket, Straight, Press-Fit, Tail .300" |
|
32 |
Socket, Straight, Press-Fit, Tail .400" |
|
33 |
Socket, Straight, Press-Fit, Tail .500" |
|
34 |
Socket, Straight, Press-Fit, Tail .700" |
|
35 |
Socket, Straight, Press-Fit, Tail .800" |
|
36 |
Socket, Straight, Press-Fit, Tail .900" |
|
37 |
Socket, Straight, Press-Fit, Tail .600" |
|
38 |
Socket, Straight, Press-Fit, Tail 1.000" |
|
Plating Options |
|
|
1 |
50μ" Au Contacts |
|
Hardware |
|
|
Hardware Style |
|
|
39 |
0.370" Long (use with #201 contact) |
|
40 |
0.400" Long (use with #211 contact) |
|
41 |
0.500" Long (use with #221 contact) |
|
42 |
0.600" Long (use with #231 contact) |
|
43 |
0.800" Long (use with #241 contact) |
|
44 |
0.900" Long (use with #251 contact) |
|
45 |
1.000" Long (use with #261 contact) |
|
46 |
0.700" Long (use with #271 contact) |
|
47 |
1.100" Long (use with #281 contact) |
|
Type |
|
|
Type |
|
|
00 |
None |
|
FT |
Female Thread |
|
MT |
Male Thread (#39 hardware, only) |
Catalog Page: RC422-PNB-1 (Rev:G)
| PERFORMANCE REFERENCE - RC CONNECTORS | |
|---|---|
|
CONTACT RATING |
3-amperes |
|
OPERATING TEMPERATURE |
-65°C to +125°C or -85°F to +257°F |
|
INSULATION RESISTANCE |
5,000 megohms minimum at 500 VDC |
|
DURABILITY |
500 connector mating cycles |
|
CONTACT RESISTANCE |
3-5 milliohms (contact length dependent) |
|
CONTACT ENGAGEMENT FORCE |
4.0 oz. (113 g) max. w/0.0246" dia test pin |
|
CONTACT SEPARATION FORCE |
0.5 oz. (14.2 g) max. w/0.0226" dia test pin |
| MATERIALS & FINISHES - RC CONNECTORS | |
|---|---|
|
CONTACTS |
BeCu, per ASTM-B196 or ASTM B 197 BeCu alloy 172 or 173) |
|
CONTACT FINISH |
Gold per MIL-G-45204 over nickel per QQ-N-290 |
|
MOLDED INSULATORS |
Glass filled polyphenylene sulfide (PPS) per MIL-M-24519 |
|
HARDWARE |
Stainless steel per ASTM A484/A484M and ASTM A582/A582M -Passivated per SAE AMS-2700 |
