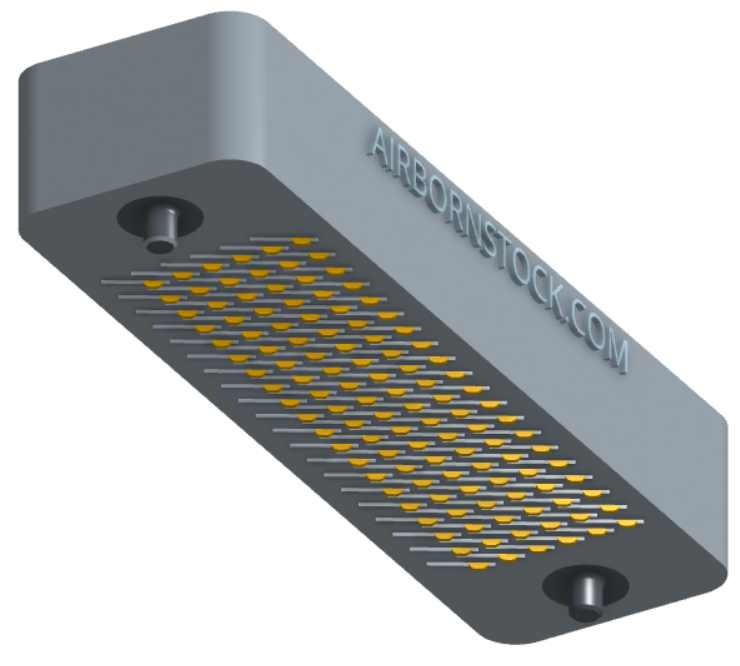

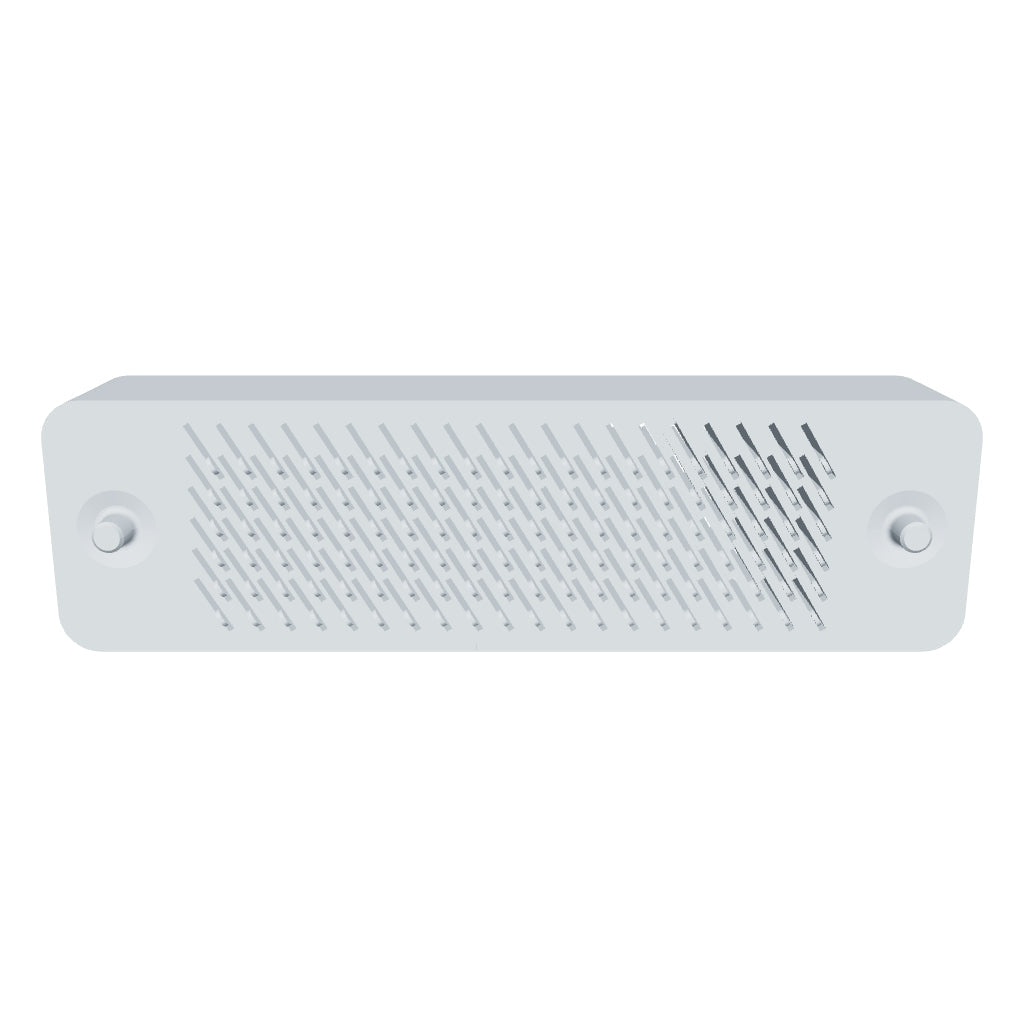

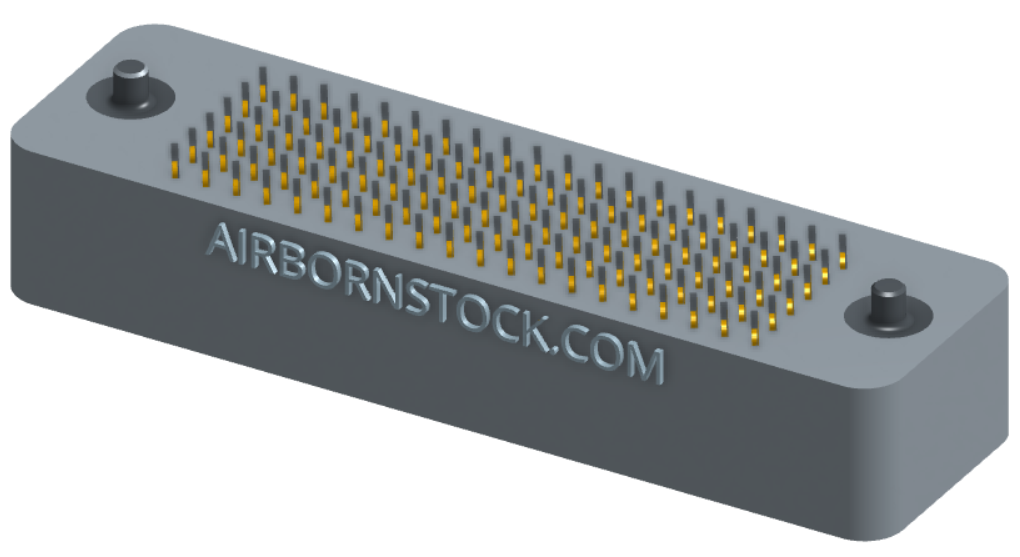

RZ250-620-115-2000
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $631.42 | - | - |
| 10 | $587.22 | -- | |
| 25 | $555.65 | -- | |
| 50 | $517.76 | -- | |
| 100 | $473.57 | -- | |
| 250 | $441.99 | -- | |
| 500 | $315.71 | -- | |
| 1,000 | $221.00 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Products will ship from JRH Electronics, an AirBorn authorized distributor.
Minimum order quantity for all products is seven (7).
Lead time is 6-8 weeks.
Standard, expedited, and express delivery options are available. See shipping rates.
Datasheets
Datasheets
RZ250-620-115-2000
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator
RZ -> .050" Compression Board Mounted Connectors
Height
100 -> 0.100"
150 -> 0.150"
200 -> 0.200"
250 -> 0.250"
300 -> 0.300"
350 -> 0.350"
Rows
2 -> 2 Rows
3 -> 3 Rows
4 -> 4 Rows
5 -> 5 Rows
6 -> 6 Rows
7 -> 7 Rows
Columns
10 -> 10 Columns
15 -> 15 Columns
20 -> 20 Columns
25 -> 25 Columns
Contacts
Contact Type
11 -> Double Compression
Plating Options
5 -> 50μ" Au Contacts
Hardware
Hardware Style
10 -> 0.090" Thru Hole
20 -> 0.050" Guide Pin
Type
Type
00 -> None
Catalog Page: RZ-PNB-1 (Rev:E)
