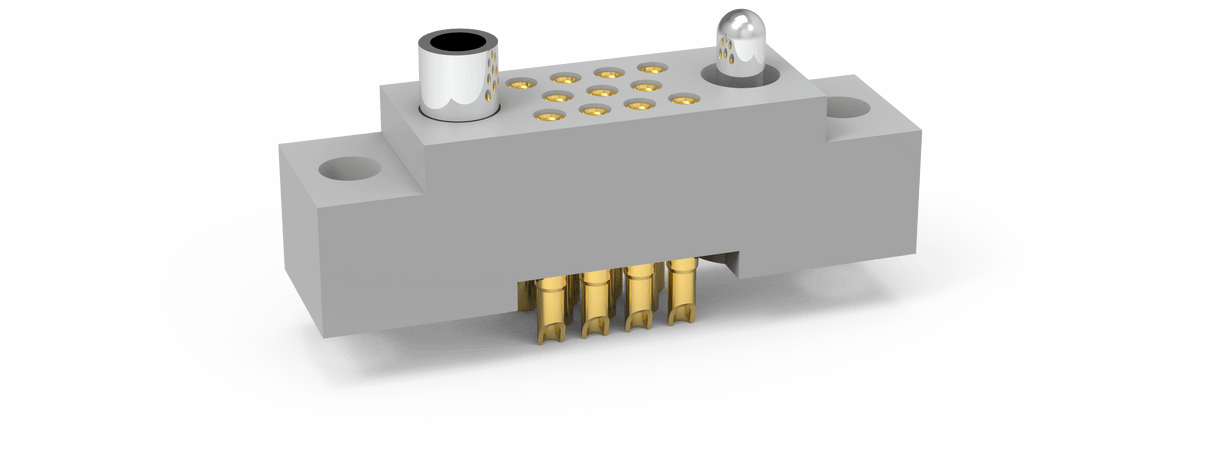

RM362-071-462-6400

AirBorn Catalog Page

Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.

Search Search

Series Designator

RM -> .075" Screw Machine PC Connectors

Body

Rows

3 -> 3 Rows

Body Style

6 -> Receptacle, Right Angle, with Mounting Ears

8 -> Receptacle, Right Angle, without Mounting Ears

Body Material

2 -> Polyphenylene sulfide (PPS)

Size

011 -> 011

023 -> 023

035 -> 035

047 -> 047

059 -> 059

071 -> 071

080 -> 080

092 -> 092

104 -> 104

122 -> 122

140 -> 140

152 -> 152

182 -> 182

206 -> 206

Contacts

Contact Type

44 -> Socket, Right Angle, Dip Solder, .109" x .020" dia

45 -> Socket, Right Angle, Dip Solder, .140" x .020" dia

46 -> Socket, Right Angle, Dip Solder, .172" x .020" dia

47 -> Socket, Right Angle, Dip Solder, .250" x .020" dia

Plating Options

1 -> Gold Plated Termination

2 -> Pre-Tinned Termination, SnPb alloy (dip solder options only)

3 -> Pre-Tinned Termination, SAC305 alloy (dip solder options only)

Hardware

Hardware Style

0256 -> None

55 -> Guide Set

57 -> Two Guide Pins

58 -> Two Guide Sockets

29 -> Fixed Jackset

30 -> Fixed Jackset, Reversed

19 -> Two Fixed Jackscrews

20 -> Two Fixed Jacksockets

59 -> Hex Turning Jackset, .200"

60 -> Hex Turning Jackset, Reversed .200"

61 -> Two Hex Turning Jackscrews, .200"

62 -> Two Hex Turning Jacksockets, .200"

64 -> Turning Jackset, .490"

65 -> Turning Jackset, Reversed, .490"

66 -> Two Turning Jackscrews, .490"

67 -> Two Turning Jackscockets, .490"

Polarization

00 -> None

01 -> Keying Position - 01

02 -> Keying Position - 02

03 -> Keying Position - 03

04 -> Keying Position - 04

05 -> Keying Position - 05

06 -> Keying Position - 06

07 -> Keying Position - 07

08 -> Keying Position - 08

09 -> Keying Position - 09

11 -> Keying Position - 11

12 -> Keying Position - 12

13 -> Keying Position - 13

14 -> Keying Position - 14

15 -> Keying Position - 15

16 -> Keying Position - 16

17 -> Keying Position - 17

18 -> Keying Position - 18

19 -> Keying Position - 19

20 -> Keying Position - 20

21 -> Keying Position - 21

22 -> Keying Position - 22

23 -> Keying Position - 23

24 -> Keying Position - 24

25 -> Keying Position - 25

26 -> Keying Position - 26

27 -> Keying Position - 27

28 -> Keying Position - 28

29 -> Keying Position - 29

30 -> Keying Position - 30

31 -> Keying Position - 31

32 -> Keying Position - 32

33 -> Keying Position - 33

34 -> Keying Position - 34

35 -> Keying Position - 35

36 -> Keying Position - 36

37 -> Keying Position - 37

38 -> Keying Position - 38

39 -> Keying Position - 39

40 -> Keying Position - 40

41 -> Keying Position - 41

42 -> Keying Position - 42

43 -> Keying Position - 43

44 -> Keying Position - 44

45 -> Keying Position - 45

46 -> Keying Position - 46

47 -> Keying Position - 47

48 -> Keying Position - 48

49 -> Keying Position - 49

50 -> Keying Position - 50

51 -> Keying Position - 51

52 -> Keying Position - 52

53 -> Keying Position - 53

54 -> Keying Position - 54

55 -> Keying Position - 55

56 -> Keying Position - 56

57 -> Keying Position - 57

58 -> Keying Position - 58

59 -> Keying Position - 59

60 -> Keying Position - 60

61 -> Keying Position - 61

62 -> Keying Position - 62

63 -> Keying Position - 63

64 -> Keying Position - 64

65 -> Keying Position - 65

66 -> Keying Position - 66

67 -> Keying Position - 67

68 -> Keying Position - 68

70 -> Keying Position - 70

Options

076 -> PWB Mounting Holes, .100" dia (cross drilled)
