JRH Electronics  |  SKU: MM-22A-025-2H3-4300-900

MM-22A-025-2H3-4300-900

Qty Price (USD) Discount Ext. Price (USD)
1 $1,493.40 - -
10 $1,373.93 --
25 $1,284.32 --
50 $1,164.85 --
100 $1,000.58 --
250 $821.37 --
500 $672.03 --
1,000 $597.36 --
--

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Availability

Our minimum required order quantity is seven (7) pieces.

Average lead time is 6-8 weeks from time of order.

If a portion of your order is already in stock, we will ship that immediately, with the remainder of your order being shipped once back in stock.

Products will ship from JRH Electronics, a Molex (AirBorn) authorized distributor.

Standard, expedited, and express delivery options are available. See shipping rates.

Datasheets

Part Number Buildup

Dimensional Information

Hardware Details (pg 1)

Hardware Polarization

Contact Types

Performance Specification

Materials Specification

Gender

Receptacle - Female
Female

# Positions

25
Pitch: .050" (1.27mm)

# Rows

2
Rows

Orientation

Vertical - Straight
Vertical - Straight

Termination

Cable
Cable

RoHS?

Yes
Product Description

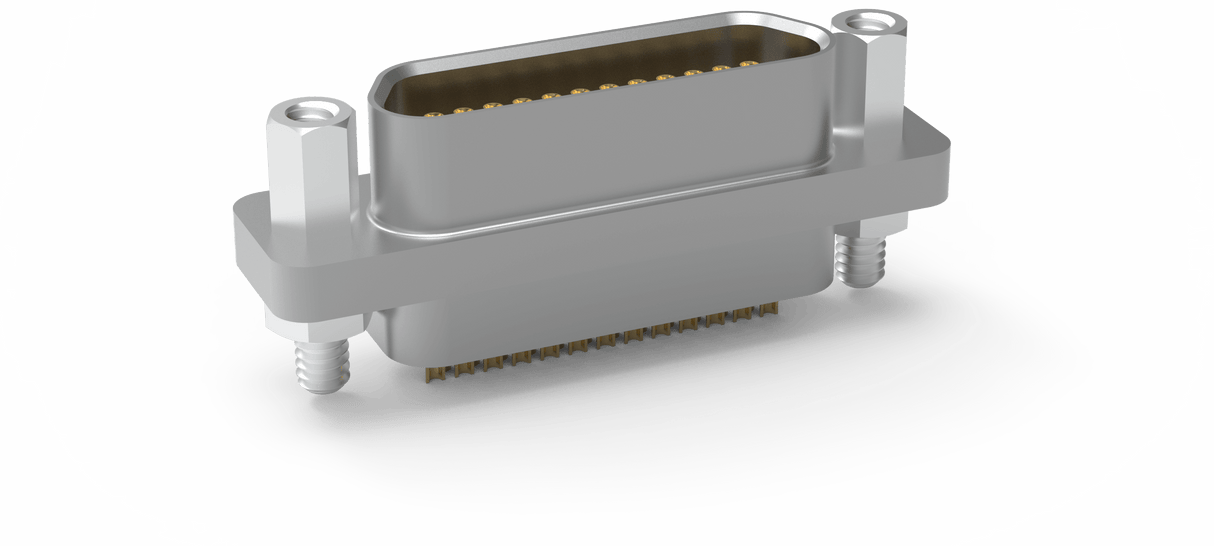

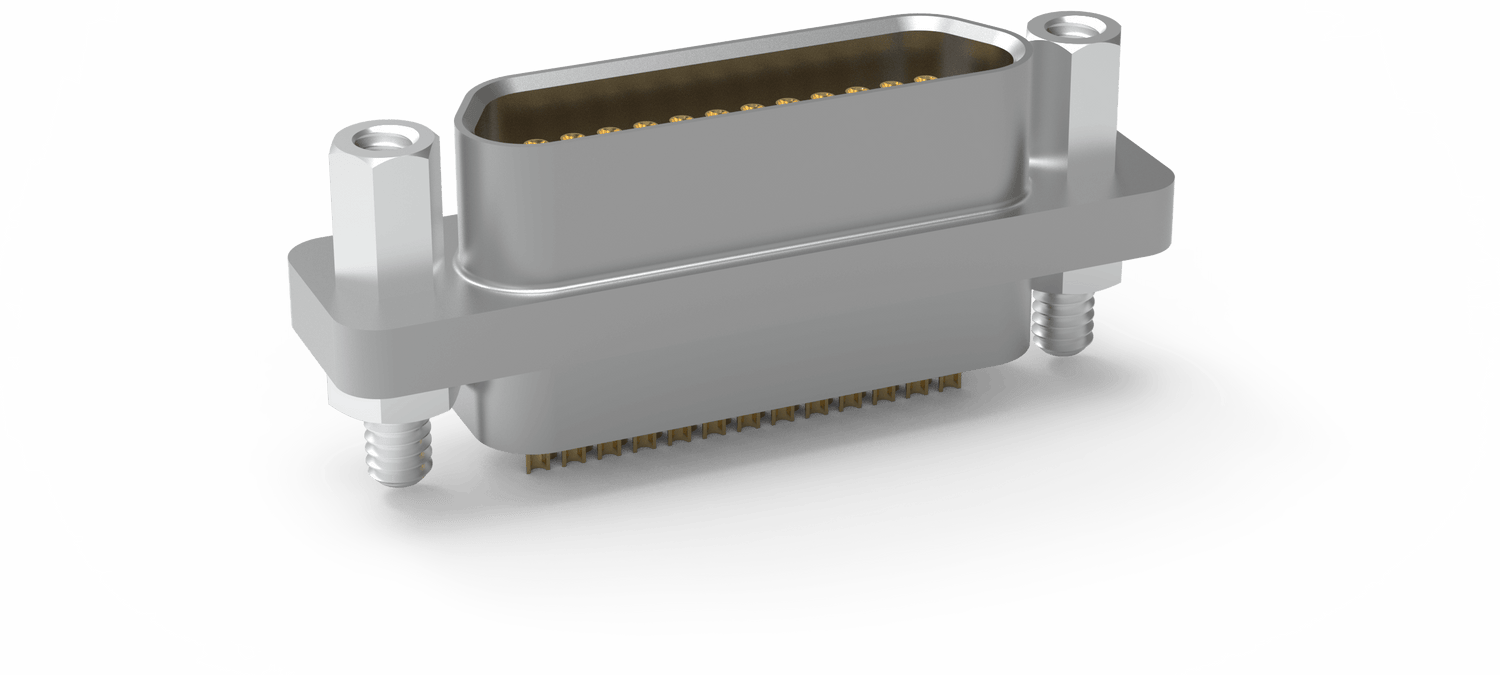

This MM-22 connector is from a family of receptacle (female), , rugged rectangular connectors that have 2 row(s) of contacts spaced at 0.075-1.91mm. This connector has cable termination with a quantity of 25 (socket, straight, .172" x .018" dia) contacts. Attachment hardware on this connector is turning jack screws (slot head).
Micro-D Series .050" (M Series)

Pitch spacing between contacts on AirBorn's Micro-D (M Series) product line is 0.050" (1.27mm).

The AirBorn Micro-D Connector Series is a line of high-performance connectors designed for applications requiring compact, reliable, and high-performance interconnections.

Key Features:
  • Miniaturized Design: These connectors are significantly smaller than standard D-Sub connectors, ideal for space-constrained applications.
  • High Reliability: RRugged construction ensures longevity and performance in extreme environments. Meets or exceeds MIL-DTL-83513 standards, making it suitable for mission-critical operations.
  • High Performance Contact System: Offers low contact resistance and excellent electrical performance. Available with standard or high-density contact arrangements. Gold-plated contacts for corrosion resistance and improved conductivity.
Applications:

Widely used in aerospace systems, satellites, military-grade electronics, avionics, medical devices, and high-reliability industrial equipment. Overall, AirBorn's Micro-D connectors provide a compact yet robust solution for environments demanding top-tier reliability and performance.
