JRH Electronics  |  SKU: MM-2E4-015-143-2900

MM-2E4-015-143-2900

Qty Price (USD) Discount Ext. Price (USD)
1 $369.55 - -
10 $339.99 --
25 $317.81 --
50 $288.25 --
100 $247.60 --
250 $203.25 --
500 $166.30 --
1,000 $147.82 --
--

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Availability

Our minimum required order quantity is seven (7) pieces.

Average lead time is 6-8 weeks from time of order.

If a portion of your order is already in stock, we will ship that immediately, with the remainder of your order being shipped once back in stock.

Products will ship from JRH Electronics, a Molex (AirBorn) authorized distributor.

Standard, expedited, and express delivery options are available. See shipping rates.

Datasheets

Part Number Buildup

Dimensional Information

Hardware Details (pg 1)

Hardware Polarization

Contact Types

Performance Specification

Materials Specification

Gender

Plug - Male
Male

# Positions

15
Pitch: .050" (1.27mm)

# Rows

2
Rows

Orientation

Vertical - Straight
Vertical - Straight

Termination

Cable
Cable

RoHS?

Yes
Product Description

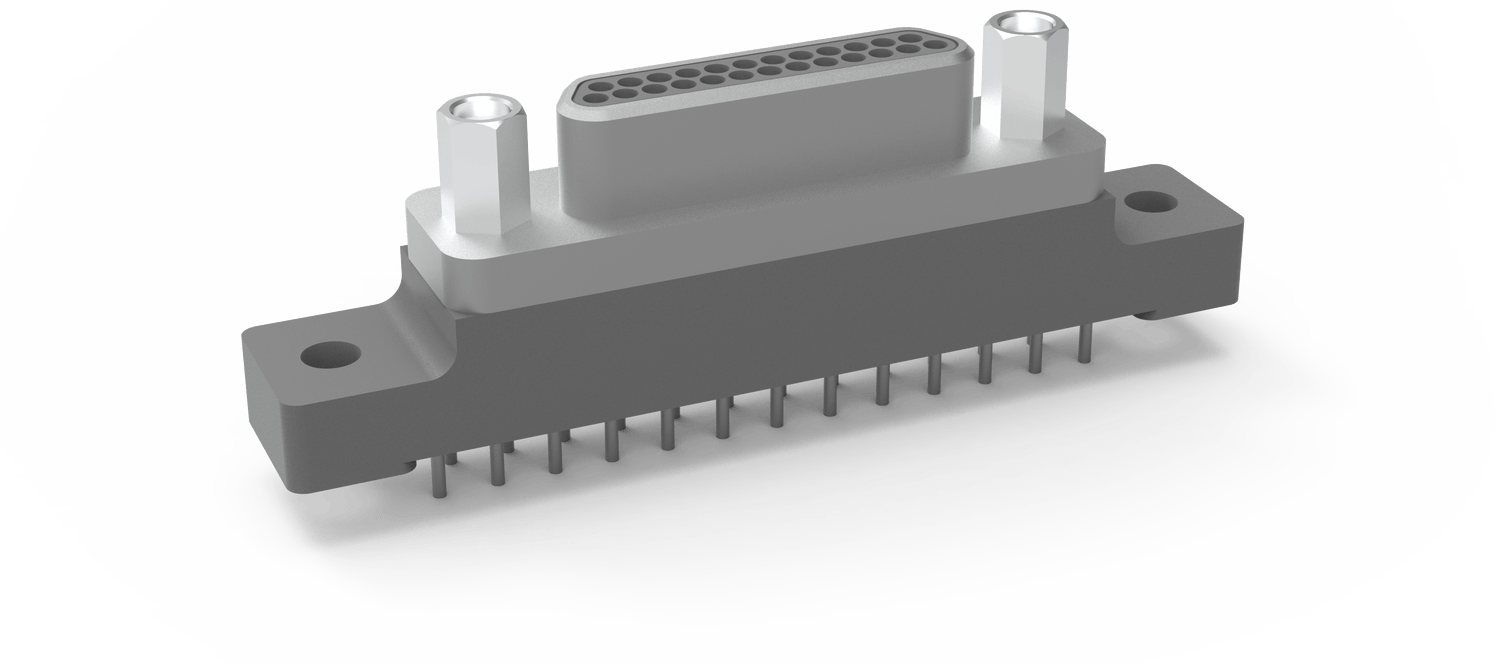

This MM-2E connector is from a family of plug (male), rugged micro-D PC board, rear panel mount connectors, sealed to 15 PSI pressure differential, and that have 2 row(s) of contacts spaced at 0.050-1.27mm. This connector has cable termination with a quantity of 15 (pin, straight, .500" x .018" dia) contacts. Attachment hardware on this connector is fixed jack nuts.
Micro-D Series .050" (M Series)

Pitch spacing between contacts on AirBorn's Micro-D (M Series) product line is 0.050" (1.27mm).

The AirBorn Micro-D Connector Series is a line of high-performance connectors designed for applications requiring compact, reliable, and high-performance interconnections.

Key Features:
  • Miniaturized Design: These connectors are significantly smaller than standard D-Sub connectors, ideal for space-constrained applications.
  • High Reliability: RRugged construction ensures longevity and performance in extreme environments. Meets or exceeds MIL-DTL-83513 standards, making it suitable for mission-critical operations.
  • High Performance Contact System: Offers low contact resistance and excellent electrical performance. Available with standard or high-density contact arrangements. Gold-plated contacts for corrosion resistance and improved conductivity.
Applications:

Widely used in aerospace systems, satellites, military-grade electronics, avionics, medical devices, and high-reliability industrial equipment. Overall, AirBorn's Micro-D connectors provide a compact yet robust solution for environments demanding top-tier reliability and performance.
