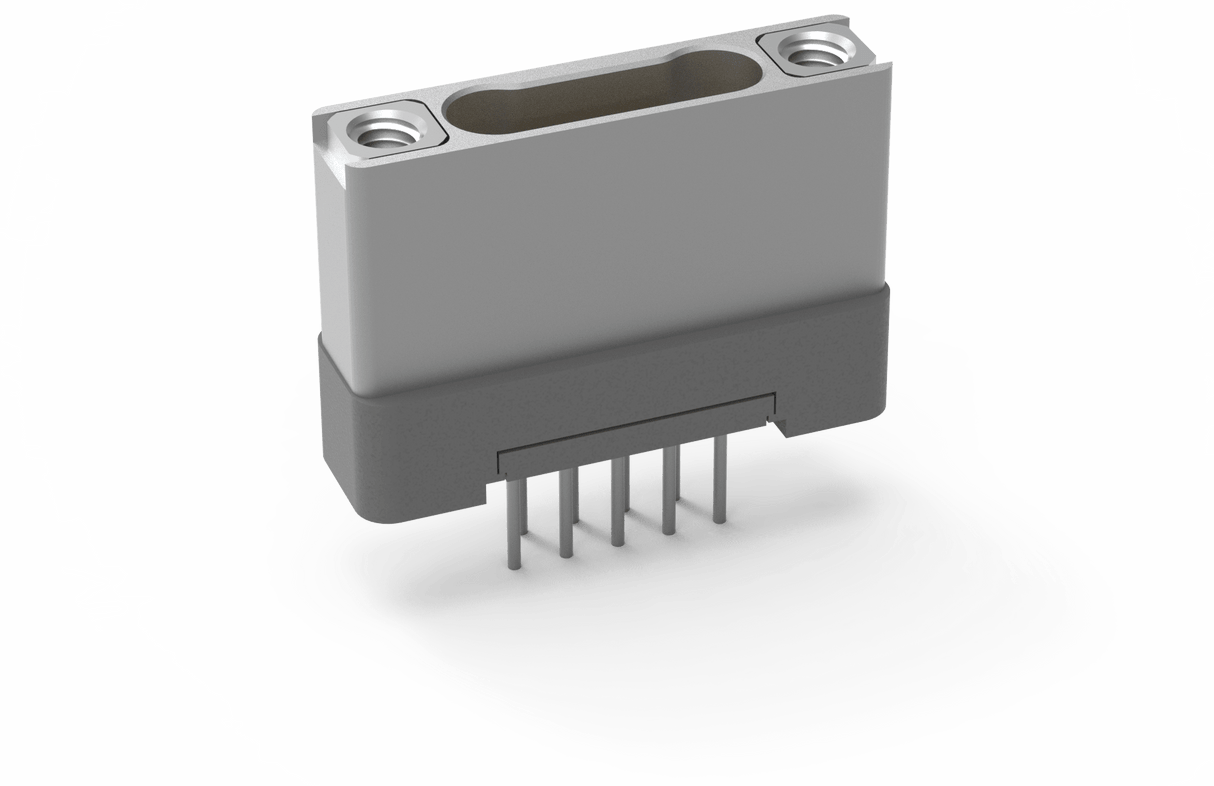

NMRP-224-037-261-THAA - Nano-miniature D-shaped rear panel mount I/O connector with fluorosilicone o-ring, 2 rows with 36617 contacts, and threaded holes for attachment hardware. (Receptacle)

Min. Order Quantity: 7

Lead Time: 6-8 weeks

Qty	Price (USD)	Discount	Ext. Price (USD)
1	$222.57	-	-
10	$204.76	--
25	$195.86	--
50	$166.93	--
100	$149.12	--
250	$122.41	--
500	$100.16	--
1,000	$89.03	--

--

Select your wire code

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Availability

Our minimum required order quantity is seven (7) pieces.

Average lead time is 6-8 weeks from time of order.

If a portion of your order is already in stock, we will ship that immediately, with the remainder of your order being shipped once back in stock.

Products will ship from JRH Electronics, a Molex (AirBorn) authorized distributor.

Standard, expedited, and express delivery options are available. See shipping rates.

Datasheets

Part Number Buildup

Dimensional Information

Performance Specification

Materials Specification

Gender

Receptacle - Female

# Positions

Pitch: .025" (.64mm)

# Rows

Rows

Orientation

Vertical - Straight

Termination

Crimp

RoHS?

Yes

Product Description

This NMRP- connector is from a family of receptacle (female), metal I/O connectors that have 2 row(s) of contacts spaced at 0.025in-0.64mm. This connector has crimp termination with a quantity of 37 (socket, straight crimped wire) contacts. Attachment hardware on this connector is threaded hole only.

Nano-D .025" (N Series)

Pitch spacing between contacts on AirBorn's Nano product line is 0.025" (0.64mm).

The AirBorn Nano-Connector Series is a line of high-performance connectors designed for applications where size, weight, and reliability are critical.

Key Features:

Compact Size: Nano-sized connectors with high-density configurations for space-constrained designs.
High Reliability: Rugged construction designed to withstand harsh environments, including vibration, extreme temperatures, and shock.
Lightweight: Engineered with lightweight materials, making them ideal for applications where weight savings are crucial.

Applications:

Aerospace: Avionics systems, UAVs, and space exploration equipment.
Defense: Mission-critical communication systems and portable electronics.
Medical: Miniaturized diagnostic and therapeutic devices.
Industrial: Robotics, sensors, and control systems in tight spaces.

The AirBorn Nano-Connector Series is valued for its exceptional balance of miniaturization and performance, meeting the stringent requirements of high-reliability sectors.

Part Number Buildup structure as found in Molex's AirBorn product catalog.
Receptacle (Female)
Series Designator
NMRP	.025" Metal I/O Connectors
Body
	Rows
2	2 Rows
	Body Style
2	Receptacle, Straight, Rear Panel Mount with Flourosilicone O-Ring
	Body Material
4	Liquid Crystal Polymer with Stainless Steel Shell
Size
009	9 Contacts
015	15 Contacts
021	21 Contacts
025	25 Contacts
031	31 Contacts
037	37 Contacts
051	51 Contacts
065	65 Contacts
069	69 Contacts
085	85 Contacts
Contacts
	Contact Type
26	Socket, Straight, Crimped Wire
	Plating Options
1	50μ" Au Contacts
Hardware
	Hardware Style
TH	Threaded Hole, #0-80 UNF
	Wiring Options
00	Wiring Options - None
AirBorn Standard Nano Wire Codes Wire Code Wire Size Wire Spec Wire Color Wire Length AA 30 AWG NEMA HP3 COLOR CODED ^* 6.0 AB 30 AWG NEMA HP3 COLOR CODED ^* 12.0 AC 30 AWG NEMA HP3 COLOR CODED ^* 18.0 AD 30 AWG NEMA HP3 COLOR CODED ^* 36.0 AE 30 AWG NEMA HP3 WHITE 6.0 AF 30 AWG NEMA HP3 WHITE 12.0 AG 30 AWG NEMA HP3 WHITE 18.0 AH 30 AWG NEMA HP3 WHITE 36.0 AJ 30 AWG NEMA HP3 YELLOW 6.0 AK 30 AWG NEMA HP3 YELLOW 12.0 AL 30 AWG NEMA HP3 YELLOW 18.0 AM 30 AWG NEMA HP3 YELLOW 36.0 AN 32 AWG NEMA HP3 COLOR CODED ^* 6.0 AP 32 AWG NEMA HP3 COLOR CODED ^* 12.0 AQ 32 AWG NEMA HP3 COLOR CODED ^* 18.0 AR 32 AWG NEMA HP3 COLOR CODED ^* 36.0 AS 32 AWG NEMA HP3 WHITE 6.0 AT 32 AWG NEMA HP3 WHITE 12.0 AU 32 AWG NEMA HP3 WHITE 18.0 AV 32 AWG NEMA HP3 WHITE 36.0 AW 32 AWG NEMA HP3 YELLOW 6.0 AX 32 AWG NEMA HP3 YELLOW 12.0 AY 32 AWG NEMA HP3 YELLOW 18.0 AZ 32 AWG NEMA HP3 YELLOW 36.0 BA 30 AWG SAE-AS22759/33 COLOR CODED ^* 6.0 BB 30 AWG SAE-AS22759/33 COLOR CODED ^* 12.0 BC 30 AWG SAE-AS22759/33 COLOR CODED ^* 18.0 BD 30 AWG SAE-AS22759/33 COLOR CODED ^* 36.0 BE 30 AWG SAE-AS22759/33 WHITE 6.0 BF 30 AWG SAE-AS22759/33 WHITE 12.0 BG 30 AWG SAE-AS22759/33 WHITE 18.0 BH 30 AWG SAE-AS22759/33 WHITE 36.0 CA 30 AWG 0407-30A ☒ COLOR CODED ^* 6.0 CB 30 AWG 0407-30A ☒ COLOR CODED ^* 12.0 CC 30 AWG 0407-30A ☒ COLOR CODED ^* 18.0 CD 30 AWG 0407-30A ☒ COLOR CODED ^* 36.0 CE 30 AWG 0407-30A ☒ WHITE 6.0 CF 30 AWG 0407-30A ☒ WHITE 12.0 CG 30 AWG 0407-30A ☒ WHITE 18.0 CH 30 AWG 0407-30A ☒ WHITE 36.0 NEMA HP3 has replaced MIL-W-16878/6 TFE 7-strand ET Consult AirBorn factory for other available wire types ^* = color coding in accordance with MIL-STD-781, System I, except using ten solid colors only in repeating sequence ☒ = Option not RoHS compliant
Options
EMI	EMI O-Ring (in lieu of FLourosilicone O-Ring)

Catalog Page: ctn156-F (Rev:B)

AirBorn N Series meets or exceeds MIL-DTL-32139 performance specifications.
PERFORMANCE REFERENCE - REAR PANEL MOUNT CONNECTORS
CONTACT RATING	1-amperes maximum
SOLDERABILITY	Terminals (except crimp) tested in accordance with MIL-STD-202, method 208
WIRE SIZE	Stranded #30 and #32 AWG or solid #30 AWG standard
TEST VOLTAGE	250V (RMS) 60 Hz
OPERATING TEMPERATURE	-55° C to +125° C
INSULATION RESISTANCE	5,000 megohms minimum at 100 VDC
DURABILITY	200 connector mating cycles tested in accordance with EIA-364-09
VIBRATION	Tested in accordance with EIA-364-28, condition IV
SHOCK	Tested in accordance with EIA-364-27, condition G
SALT SPRAY	Mated connectors tested in accordance with EIA-364-26, condition B
HUMIDITY	Mated connectors tested in accordance with EIA-364-31, condition A (except steps 7a and 7b)
THERMAL SHOCK	Tested to the temperature extremes of EIA-364-32, condition I
CONTACT RESISTANCE	0.021 volt maximum drop at 1.0 amps (.021 ohms)
CONTACT ENGAGING FORCE	5.0 oz maximum, with minimum diameter test sleeve
CONTACT SEPARATING	0.4 oz minimum, with maximum diameter test sleeve
FORCE CRIMP STRENGTH	1 pound minimum tensile strength

Download Performance Specification


MATERIALS & FINISHES - REAR PANEL MOUNT CONNECTORS
CONTACTS	Sockets: BeCu per ASTM-B-194 or NiAg per ASTM-B-122
EMBEDMENT	Insulating compound per MIL-I-16923
CONTACT FINISHES	Gold plate per ASTM B 488, SAE AMS 2422
MOLDED INSULATORS	Glass filled liquid crystal polymer (LCP) per ASTM D5138 or MIL-M-24519
SHELLS	303 Stainless Steel per ASTM A581/A581M or ASTM A582/A582M passivated per SAE AMS-2700
HARDWARE	Corrosion resistant steel per ASTM A581/A581M or ASTM A582/A582M or ASTM A320 passivated per SAE AMS-2700
O-RINGS	fluorosilicone elastomer per SAE AMS-R-25988 OR Ag/Ai filled fluorosilicone elastomer per MIL-DTL-83528, type D
TOLERANCES	Angles: ±2°, Decimals: ±0.005”

Download materials Specification
