RM222-100-663-6200
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $563.13 | - | - |
| 10 | $405.45 | -- | |
| 25 | $304.09 | -- | |
| 50 | $253.41 | -- | |
| 100 | $225.25 | -- | |
| 250 | $208.36 | -- | |
| 500 | $202.73 | -- | |
| 1,000 | $197.10 | -- |
--
Couldn't load pickup availability
Availability
Availability
Products will ship from AirBorn authorized distributors.
No min order quantity for items in stock.
Out of stock items, while still orderable, will have a min order quantity specified by AirBornStock.com.
Default lead time is eight weeks.
Out of stock items will have lead time specified by AirBornStock.com.
Standard, expedited, and express delivery options are available. See shipping rates.
RM222-100-663-6200
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
AirBorn Catalog Page
Not finding the part you need? Try reviewing the options from the part's catalog page below and searching for a similar variation.
Series Designator

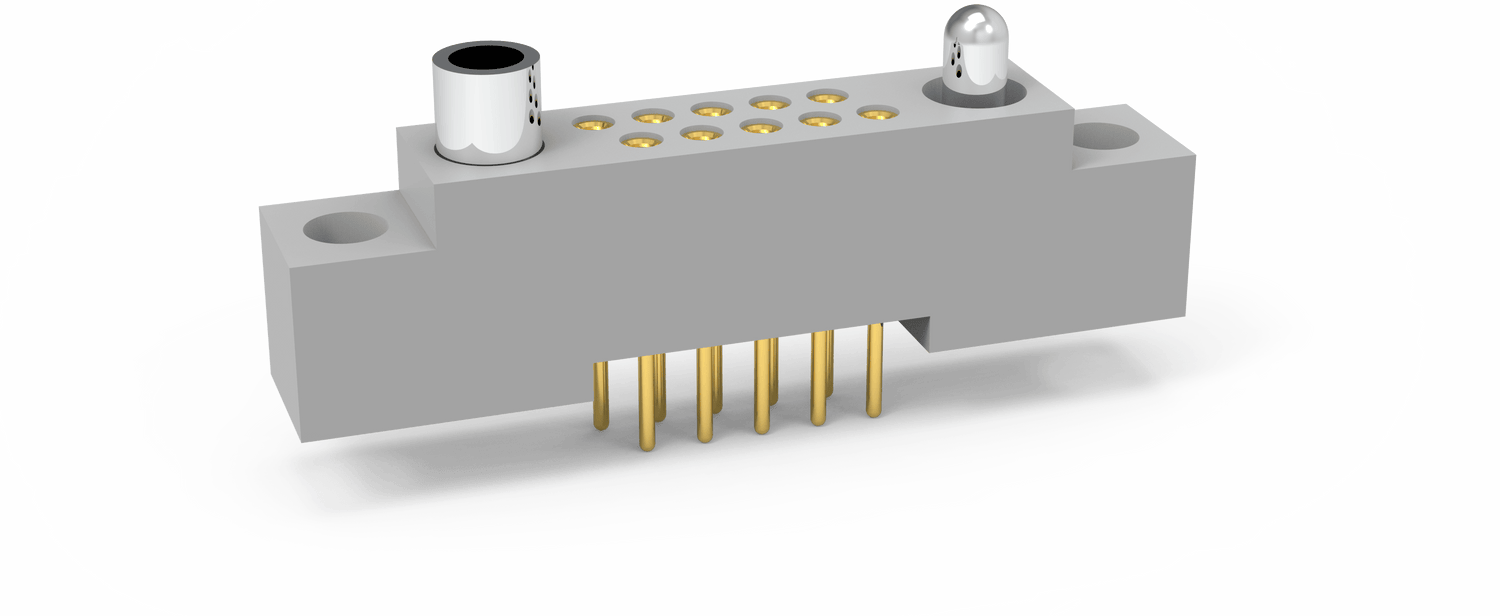

RM -> .075" Screw Machine PC Connectors
Body
Rows
2 -> 2 Rows
Body Style
2 -> Receptacle, Straight, with Mounting Ears
4 -> Receptacle, Straight, without Mounting Ears
Body Material
2 -> Polyphenylene sulfide (PPS)
Size
010 -> 010
020 -> 020
030 -> 030
040 -> 040
050 -> 050
060 -> 060
070 -> 070
080 -> 080
090 -> 090
100 -> 100
Contacts
Contact Type
20 -> Socket, Straight, Dip Solder, .109" x .020" dia
21 -> Socket, Straight, Dip Solder, .140" x .020" dia
22 -> Socket, Straight, Dip Solder, .172" x .020" dia
23 -> Socket, Straight, Dip Solder, .250" x .020" dia
24 -> Socket, Straight, Solder Cup
25 -> Socket, Straight, Flex Circuit, .093" x .017" dia
26 -> Socket, Straight, Wire Wrap, .500" x .018" dia
27 -> Socket, Straight, Wire Wrap, .375" x .018" dia
28 -> Socket, Straight, Wire Wrap, .625" x .018" dia
29 -> Socket, Connector Saver, .150" x .025" dia
50 -> Socket, Straight, Dip Solder, .140" x .016" dia
51 -> Socket, Straight, Dip Solder, .172" x .016" dia
53 -> Socket, Straight, Stackable, .212" x .025" dia
54 -> Socket, Straight, Stackable, .244" x .025" dia
55 -> Socket, Straight, Stackable, .275" x .025" dia
64 -> Socket, Straight, Press-Fit, .203" (Board: .093" - .125" thk)
65 -> Socket, Straight, Press-Fit, .323" (Board: .156" - .200" thk)
66 -> Socket, Straight, Press-Fit, .403" (Board: .250" + thk)
Plating Options
1 -> Gold Plated Termination
2 -> Pre-Tinned Termination, SnPb alloy (dip solder options only)
3 -> Pre-Tinned Termination, SAC305 alloy (dip solder options only)
Hardware
Hardware Style
0256 -> None
55 -> Guide Set
57 -> Two Guide Pins
58 -> Two Guide Sockets
29 -> Fixed Jackset
30 -> Fixed Jackset, Reversed
19 -> Two Fixed Jackscrews
20 -> Two Fixed Jacksockets
59 -> Hex Turning Jackset, .200"
60 -> Hex Turning Jackset, Reversed .200"
61 -> Two Hex Turning Jackscrews, .200"
62 -> Two Hex Turning Jacksockets, .200"
64 -> Turning Jackset, .490"
65 -> Turning Jackset, Reversed, .490"
66 -> Two Turning Jackscrews, .490"
67 -> Two Turning Jackscockets, .490"
Polarization
00 -> None
01 -> Keying Position - 01
02 -> Keying Position - 02
03 -> Keying Position - 03
04 -> Keying Position - 04
05 -> Keying Position - 05
06 -> Keying Position - 06
07 -> Keying Position - 07
08 -> Keying Position - 08
09 -> Keying Position - 09
11 -> Keying Position - 11
12 -> Keying Position - 12
13 -> Keying Position - 13
14 -> Keying Position - 14
15 -> Keying Position - 15
16 -> Keying Position - 16
17 -> Keying Position - 17
18 -> Keying Position - 18
19 -> Keying Position - 19
20 -> Keying Position - 20
21 -> Keying Position - 21
22 -> Keying Position - 22
23 -> Keying Position - 23
24 -> Keying Position - 24
25 -> Keying Position - 25
26 -> Keying Position - 26
27 -> Keying Position - 27
28 -> Keying Position - 28
29 -> Keying Position - 29
30 -> Keying Position - 30
31 -> Keying Position - 31
32 -> Keying Position - 32
33 -> Keying Position - 33
34 -> Keying Position - 34
35 -> Keying Position - 35
36 -> Keying Position - 36
37 -> Keying Position - 37
38 -> Keying Position - 38
39 -> Keying Position - 39
40 -> Keying Position - 40
41 -> Keying Position - 41
42 -> Keying Position - 42
43 -> Keying Position - 43
44 -> Keying Position - 44
45 -> Keying Position - 45
46 -> Keying Position - 46
47 -> Keying Position - 47
48 -> Keying Position - 48
49 -> Keying Position - 49
50 -> Keying Position - 50
51 -> Keying Position - 51
52 -> Keying Position - 52
53 -> Keying Position - 53
54 -> Keying Position - 54
55 -> Keying Position - 55
56 -> Keying Position - 56
57 -> Keying Position - 57
58 -> Keying Position - 58
59 -> Keying Position - 59
60 -> Keying Position - 60
61 -> Keying Position - 61
62 -> Keying Position - 62
63 -> Keying Position - 63
64 -> Keying Position - 64
65 -> Keying Position - 65
66 -> Keying Position - 66
67 -> Keying Position - 67
68 -> Keying Position - 68
70 -> Keying Position - 70
Catalog Page: ctr010-F (Rev:F)
