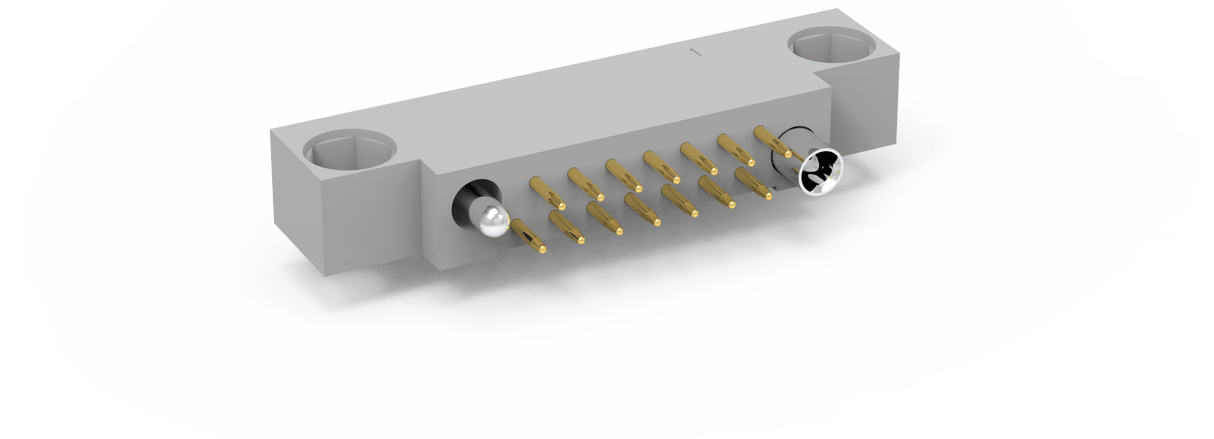

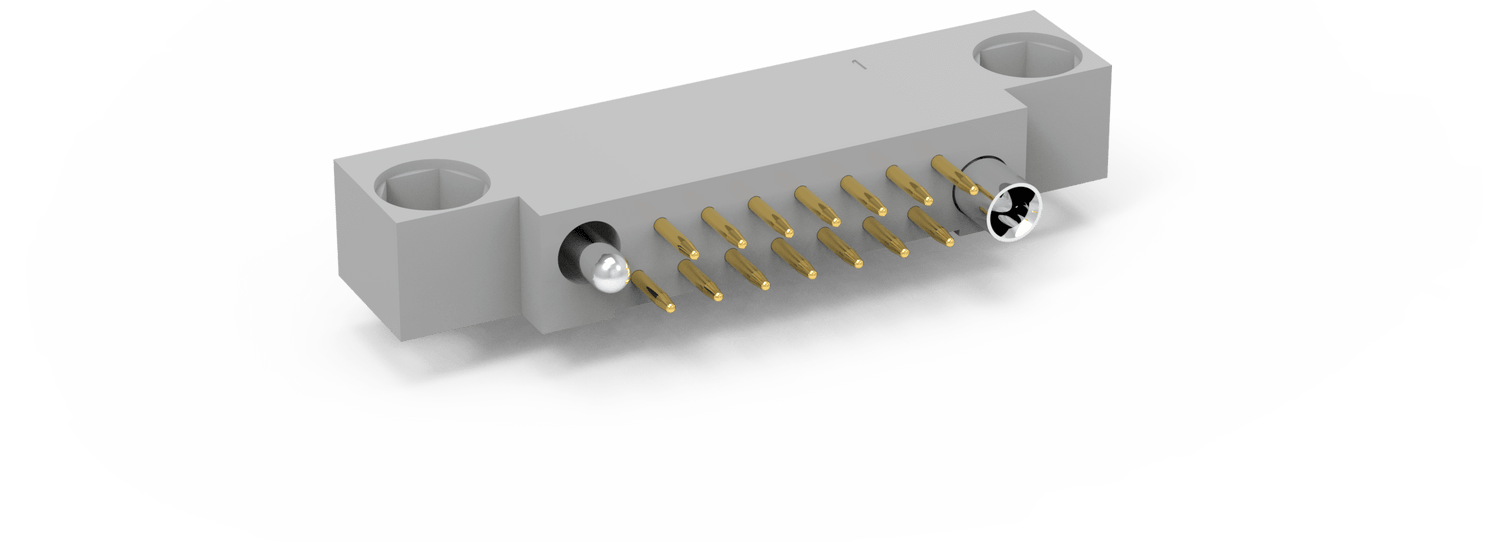

WTB14PR30JTL
| Qty | Price (USD) | Discount | Ext. Price (USD) |
|---|---|---|---|
| 1 | $68.52 | - | - |
| 10 | $60.30 | -- | |
| 25 | -- | ||
| 50 | $53.45 | -- | |
| 100 | $44.54 | -- | |
| 250 | -- | ||
| 500 | $35.63 | -- | |
| 1,000 | $27.41 | -- |
--
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Availability
Availability
Our minimum required order quantity is seven (7) pieces.
Average lead time is 6-8 weeks from time of order.
If a portion of your order is already in stock, we will ship that immediately, with the remainder of your order being shipped once back in stock.
Products will ship from JRH Electronics, a Molex (AirBorn) authorized distributor.
Standard, expedited, and express delivery options are available. See shipping rates.
WTB14PR30JTL
Gender
# Positions
# Rows
Orientation
Termination
RoHS?
Product Description
Rectangular PCB .100" (W Series)
Pitch spacing between contacts on AirBorn's Rectangular W-Series product line is 0.100" (2.54mm).
AirBorn's W-Series connector product line is a premium range of high-reliability, ruggedized connectors designed for demanding environments.
Key Features:
- Durability and Reliability: Engineered for use in extreme conditions, including high vibration, shock, and wide temperature ranges. Meets or exceeds MIL-DTL-55302 standards, ensuring suitability for mission-critical applications. Built for long life cycles, with high mating durability.
- Versatile Configurations: Offers a wide range of contact arrangements and densities, accommodating both signal and power connections. Available in multiple housing sizes and layouts, tailored to specific design requirements.
- Precision Electrical Performance: Features precision-machined contacts with low contact resistance for reliable electrical connections. High current and voltage handling capabilities for versatile applications.
- Termination Options: Compatible with various termination styles: Crimp, Solder, and PCB mount.
- Rugged Construction: Features robust housings and secure mating mechanisms to ensure high reliability in harsh environments.
Applications:
- Aerospace and Defense: Avionics, navigation systems, and tactical communication.
- Medical: High-reliability imaging and diagnostic equipment.
- Industrial: Robotics, automation, and rugged machinery.
- Space: Satellites and exploration systems.
AirBorn's W-Series connectors deliver a robust, flexible, and dependable interconnect solution for systems that require high performance under tough conditions.
| Plug (Male) | |
|---|---|
|
Series Designator |
|
|
WTB |
Plug, Right Angle, With Mounting Ears |
|
Size |
|
|
10 |
10 Contacts |
|
14 |
14 Contacts |
|
20 |
20 Contacts |
|
24 |
24 Contacts |
|
26 |
26 Contacts |
|
30 |
30 Contacts |
|
36 |
36 Contacts |
|
40 |
40 Contacts |
|
44 |
44 Contacts |
|
50 |
50 Contacts |
|
54 |
54 Contacts |
|
56 |
56 Contacts |
|
60 |
60 Contacts |
|
66 |
66 Contacts |
|
70 |
70 Contacts |
|
Contacts |
|
|
Contact Type |
|
|
PRC |
Pin, Right Angle, Solder Cup, (.035"I.D.) |
|
PR7 |
Pin, Right Angle, Dip Solder, .109" x .025" dia |
|
PR9 |
Pin, Right Angle, Dip Solder, .140" x .025" dia |
|
PR11 |
Pin, Right Angle, Dip Solder, .172" x .025" dia |
|
PR13 |
Pin, Right Angle, Dip Solder, .203" x .025" dia |
|
PR15 |
Pin, Right Angle, Dip Solder, .234" x .025" dia |
|
PR23 |
Pin, Right Angle, Dip Solder, .359" x .025" dia |
|
PDR30 |
Pin, Right Angle, Dip Solder, .470" x .025" dia |
|
PRW33 |
Pin, Right Angle, Wire Wrap, .515" |
|
PRW40 |
Pin, Right Angle, Wire Wrap, .625" |
|
Hardware |
|
|
SY |
Guide Set |
|
SY-1 |
Guide Set, Polarized/Keyed (orientation# 1) |
|
SY-2 |
Guide Set, Polarized/Keyed (orientation# 2) |
|
SY-3 |
Guide Set, Polarized/Keyed (orientation# 3) |
|
SY-4 |
Guide Set, Polarized/Keyed (orientation# 4) |
|
SY-5 |
Guide Set, Polarized/Keyed (orientation# 5) |
|
SY-6 |
Guide Set, Polarized/Keyed (orientation# 6) |
|
SY-7 |
Guide Set, Polarized/Keyed (orientation# 7) |
|
SY-8 |
Guide Set, Polarized/Keyed (orientation# 8) |
|
SY-9 |
Guide Set, Polarized/Keyed (orientation# 9) |
|
SY-10 |
Guide Set, Polarized/Keyed (orientation# 10) |
|
SY-11 |
Guide Set, Polarized/Keyed (orientation# 11) |
|
SY-12 |
Guide Set, Polarized/Keyed (orientation# 12) |
|
SY-13 |
Guide Set, Polarized/Keyed (orientation# 13) |
|
SY-14 |
Guide Set, Polarized/Keyed (orientation# 14) |
|
SY-15 |
Guide Set, Polarized/Keyed (orientation# 15) |
|
SY-16 |
Guide Set, Polarized/Keyed (orientation# 16) |
|
SY-17 |
Guide Set, Polarized/Keyed (orientation# 17) |
|
SY-18 |
Guide Set, Polarized/Keyed (orientation# 18) |
|
SY-19 |
Guide Set, Polarized/Keyed (orientation# 19) |
|
SY-20 |
Guide Set, Polarized/Keyed (orientation# 20) |
|
SY-21 |
Guide Set, Polarized/Keyed (orientation# 21) |
|
SY-22 |
Guide Set, Polarized/Keyed (orientation# 22) |
|
SY-23 |
Guide Set, Polarized/Keyed (orientation# 23) |
|
SY-24 |
Guide Set, Polarized/Keyed (orientation# 24) |
|
SY-25 |
Guide Set, Polarized/Keyed (orientation# 25) |
|
SY-26 |
Guide Set, Polarized/Keyed (orientation# 26) |
|
SY-27 |
Guide Set, Polarized/Keyed (orientation# 27) |
|
SY-28 |
Guide Set, Polarized/Keyed (orientation# 28) |
|
SY-29 |
Guide Set, Polarized/Keyed (orientation# 29) |
|
SY-30 |
Guide Set, Polarized/Keyed (orientation# 30) |
|
SY-31 |
Guide Set, Polarized/Keyed (orientation# 31) |
|
SY-32 |
Guide Set, Polarized/Keyed (orientation# 32) |
|
SY-33 |
Guide Set, Polarized/Keyed (orientation# 33) |
|
SY-34 |
Guide Set, Polarized/Keyed (orientation# 34) |
|
SY-35 |
Guide Set, Polarized/Keyed (orientation# 35) |
|
SY-36 |
Guide Set, Polarized/Keyed (orientation# 36) |
|
SY-37 |
Guide Set, Polarized/Keyed (orientation# 37) |
|
SY-38 |
Guide Set, Polarized/Keyed (orientation# 38) |
|
SY-39 |
Guide Set, Polarized/Keyed (orientation# 39) |
|
SY-40 |
Guide Set, Polarized/Keyed (orientation# 40) |
|
SY-41 |
Guide Set, Polarized/Keyed (orientation# 41) |
|
SY-42 |
Guide Set, Polarized/Keyed (orientation# 42) |
|
SY-43 |
Guide Set, Polarized/Keyed (orientation# 43) |
|
SY-44 |
Guide Set, Polarized/Keyed (orientation# 44) |
|
SY-45 |
Guide Set, Polarized/Keyed (orientation# 45) |
|
SY-46 |
Guide Set, Polarized/Keyed (orientation# 46) |
|
SY-47 |
Guide Set, Polarized/Keyed (orientation# 47) |
|
SY-48 |
Guide Set, Polarized/Keyed (orientation# 48) |
|
SY-49 |
Guide Set, Polarized/Keyed (orientation# 49) |
|
SY-50 |
Guide Set, Polarized/Keyed (orientation# 50) |
|
SY-51 |
Guide Set, Polarized/Keyed (orientation# 51) |
|
SY-52 |
Guide Set, Polarized/Keyed (orientation# 52) |
|
SY-53 |
Guide Set, Polarized/Keyed (orientation# 53) |
|
SY-54 |
Guide Set, Polarized/Keyed (orientation# 54) |
|
SY-55 |
Guide Set, Polarized/Keyed (orientation# 55) |
|
SY-56 |
Guide Set, Polarized/Keyed (orientation# 56) |
|
SY-57 |
Guide Set, Polarized/Keyed (orientation# 57) |
|
SY-58 |
Guide Set, Polarized/Keyed (orientation# 58) |
|
SY-59 |
Guide Set, Polarized/Keyed (orientation# 59) |
|
SY-60 |
Guide Set, Polarized/Keyed (orientation# 60) |
|
SY-61 |
Guide Set, Polarized/Keyed (orientation# 61) |
|
SY-62 |
Guide Set, Polarized/Keyed (orientation# 62) |
|
SY-63 |
Guide Set, Polarized/Keyed (orientation# 63) |
|
SY-64 |
Guide Set, Polarized/Keyed (orientation# 64) |
|
SYL |
Guide Set, Long |
|
SYL-1 |
Guide Set, Long, Polarized/Keyed (orientation# 1) |
|
SYL-2 |
Guide Set, Long, Polarized/Keyed (orientation# 2) |
|
SYL-3 |
Guide Set, Long, Polarized/Keyed (orientation# 3) |
|
SYL-4 |
Guide Set, Long, Polarized/Keyed (orientation# 4) |
|
SYL-5 |
Guide Set, Long, Polarized/Keyed (orientation# 5) |
|
SYL-6 |
Guide Set, Long, Polarized/Keyed (orientation# 6) |
|
SYL-7 |
Guide Set, Long, Polarized/Keyed (orientation# 7) |
|
SYL-8 |
Guide Set, Long, Polarized/Keyed (orientation# 8) |
|
SYL-9 |
Guide Set, Long, Polarized/Keyed (orientation# 9) |
|
SYL-10 |
Guide Set, Long, Polarized/Keyed (orientation# 10) |
|
SYL-11 |
Guide Set, Long, Polarized/Keyed (orientation# 11) |
|
SYL-12 |
Guide Set, Long, Polarized/Keyed (orientation# 12) |
|
SYL-13 |
Guide Set, Long, Polarized/Keyed (orientation# 13) |
|
SYL-14 |
Guide Set, Long, Polarized/Keyed (orientation# 14) |
|
SYL-15 |
Guide Set, Long, Polarized/Keyed (orientation# 15) |
|
SYL-16 |
Guide Set, Long, Polarized/Keyed (orientation# 16) |
|
SYL-17 |
Guide Set, Long, Polarized/Keyed (orientation# 17) |
|
SYL-18 |
Guide Set, Long, Polarized/Keyed (orientation# 18) |
|
SYL-19 |
Guide Set, Long, Polarized/Keyed (orientation# 19) |
|
SYL-20 |
Guide Set, Long, Polarized/Keyed (orientation# 20) |
|
SYL-21 |
Guide Set, Long, Polarized/Keyed (orientation# 21) |
|
SYL-22 |
Guide Set, Long, Polarized/Keyed (orientation# 22) |
|
SYL-23 |
Guide Set, Long, Polarized/Keyed (orientation# 23) |
|
SYL-24 |
Guide Set, Long, Polarized/Keyed (orientation# 24) |
|
SYL-25 |
Guide Set, Long, Polarized/Keyed (orientation# 25) |
|
SYL-26 |
Guide Set, Long, Polarized/Keyed (orientation# 26) |
|
SYL-27 |
Guide Set, Long, Polarized/Keyed (orientation# 27) |
|
SYL-28 |
Guide Set, Long, Polarized/Keyed (orientation# 28) |
|
SYL-29 |
Guide Set, Long, Polarized/Keyed (orientation# 29) |
|
SYL-30 |
Guide Set, Long, Polarized/Keyed (orientation# 30) |
|
SYL-31 |
Guide Set, Long, Polarized/Keyed (orientation# 31) |
|
SYL-32 |
Guide Set, Long, Polarized/Keyed (orientation# 32) |
|
SYL-33 |
Guide Set, Long, Polarized/Keyed (orientation# 33) |
|
SYL-34 |
Guide Set, Long, Polarized/Keyed (orientation# 34) |
|
SYL-35 |
Guide Set, Long, Polarized/Keyed (orientation# 35) |
|
SYL-36 |
Guide Set, Long, Polarized/Keyed (orientation# 36) |
|
SYL-37 |
Guide Set, Long, Polarized/Keyed (orientation# 37) |
|
SYL-38 |
Guide Set, Long, Polarized/Keyed (orientation# 38) |
|
SYL-39 |
Guide Set, Long, Polarized/Keyed (orientation# 39) |
|
SYL-40 |
Guide Set, Long, Polarized/Keyed (orientation# 40) |
|
SYL-41 |
Guide Set, Long, Polarized/Keyed (orientation# 41) |
|
SYL-42 |
Guide Set, Long, Polarized/Keyed (orientation# 42) |
|
SYL-43 |
Guide Set, Long, Polarized/Keyed (orientation# 43) |
|
SYL-44 |
Guide Set, Long, Polarized/Keyed (orientation# 44) |
|
SYL-45 |
Guide Set, Long, Polarized/Keyed (orientation# 45) |
|
SYL-46 |
Guide Set, Long, Polarized/Keyed (orientation# 46) |
|
SYL-47 |
Guide Set, Long, Polarized/Keyed (orientation# 47) |
|
SYL-48 |
Guide Set, Long, Polarized/Keyed (orientation# 48) |
|
SYL-49 |
Guide Set, Long, Polarized/Keyed (orientation# 49) |
|
SYL-50 |
Guide Set, Long, Polarized/Keyed (orientation# 50) |
|
SYL-51 |
Guide Set, Long, Polarized/Keyed (orientation# 51) |
|
SYL-52 |
Guide Set, Long, Polarized/Keyed (orientation# 52) |
|
SYL-53 |
Guide Set, Long, Polarized/Keyed (orientation# 53) |
|
SYL-54 |
Guide Set, Long, Polarized/Keyed (orientation# 54) |
|
SYL-55 |
Guide Set, Long, Polarized/Keyed (orientation# 55) |
|
SYL-56 |
Guide Set, Long, Polarized/Keyed (orientation# 56) |
|
SYL-57 |
Guide Set, Long, Polarized/Keyed (orientation# 57) |
|
SYL-58 |
Guide Set, Long, Polarized/Keyed (orientation# 58) |
|
SYL-59 |
Guide Set, Long, Polarized/Keyed (orientation# 59) |
|
SYL-60 |
Guide Set, Long, Polarized/Keyed (orientation# 60) |
|
SYL-61 |
Guide Set, Long, Polarized/Keyed (orientation# 61) |
|
SYL-62 |
Guide Set, Long, Polarized/Keyed (orientation# 62) |
|
SYL-63 |
Guide Set, Long, Polarized/Keyed (orientation# 63) |
|
SYL-64 |
Guide Set, Long, Polarized/Keyed (orientation# 64) |
|
JT |
Turning Jackset, .435" |
|
JTA |
Turning Jackset, .135" |
|
JTB |
Hex Turning Jackset, .135" |
|
JTC |
Hex Turning Jackset, .435" |
|
JTL |
Turning Jackset, Long, .635" |
|
Options |
|
|
342 |
Remove mounting ears (250" each end). |
|
443 |
Polarizing pin installed in contact position noted by dash number (ex. WT10PC443-1). |
|
515 |
Conact position noted by the dash number is left open (to mate with 443). |
|
548 |
Bond $4-40 small pattern nut into mounting holes (for right angle plug connectors only). |
|
B82 |
Termination face sealed against conformal coating. |
|
D01 |
Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with 63/37 or 60/40 solder. |
|
P39 |
Pretinned contact terminations (except solder cups, wire wraps, and flex contacts) with SAC305 solder (lead free). |
|
D54 |
Combine B82 & D01 options |
|
G69 |
Solder cups fixed in an outward orientation (otherwise contacts will rotate). |
|
413 |
Straight pin contacts in right angle plug molding with solder cup terminations extending .100" from face. |
Catalog Page: ctw020-M (Rev:D)
| PERFORMANCE REFERENCE MIL-DTL-55302 | |
|---|---|
|
CONTACT RATING |
3-amperes |
|
SOLDERABILITY |
Terminals (except wire wrap and crimp) tested in accordance with MIL-STD-202, method 208 or J-STD-002 |
|
WIRE SIZE |
Stranded #22 AWG (adapter sleeves available for larger sizes or twisted pairs) |
|
OPERATING TEMPERATURE |
-65°C to +125°C or -85°F to +257°F |
|
TEST VOLTAGE |
1,000V (RMS) 60 Hz at sea level. 300V (RMS) 60 Hz at 70,000 feet. Test method per MIL-STD-1344 #3001, (EIA-364 equivalent: EIA-364-20, Method A; EIA-364-20, Method A, Condition IV) |
|
INSULATION RESISTANCE |
5,000 megohms minimum at 500 VDC. Test method per MIL-STD-1344 #3003, (EIA-364 equivalent: EIA-364-21) |
|
DURABILITY |
500 connector mating cycles |
|
VIBRATION |
15 G's, no interruption > 1.0 microsecond. Test method per MIL-STD-1344 #2005, (EIA-364 equivalent: EIA-364-28, Condition III) |
|
SALT SPRAY |
PASS, Test method per MIL-STD-1344 #1001, (EIA-364 equivalent: EIA-364-26, Condition B) |
|
SHOCK |
100 G's, no interruption > 1.0 microsecond. Test method per MIL-STD-1344 #2004, (EIA-364 equivalent: EIA-364-27, Condition G) |
|
HUMIDITY |
PASS, Test method per MIL-STD-1344 #1002, (EIA-364 equivalent: EIA-364-31, Method IV except steps 7A and 7B) |
|
THERMAL SHOCK |
PASS, Test method per MIL-STD-1344 #1003, (EIA-364 equivalent: EIA-364-32, Method A, Condition III) |
|
CONTACT RESISTANCE |
0.025 volt maximum drop at 5 amperes - 0.005 ohms (interface measurement). Test method per MIL-STD-1344 #3004, (EIA-364 equivalent: EIA-364-06) |
|
CONTACT ENGAGING FORCE |
4.00 oz. maximum, with 0.031 diameter test pin per SAE AS31971. Test method per MIL-STD-1344 #2014, (EIA-364 equivalent: EIA-364-37, Method A) |
|
SIZES 50 AND LARGER |
Upon engagement, center area of mating faces may remain open 0.010" to 0.025" due to slight flexing of molding. Vibration or shock should provide complete closure. |
|
GUIDES AND JACKS |
If location of pin or socket contacts is reversed, location of male and female guides or jacks is also reversed; except when using D shaped polarized guides. |
| MATERIALS & FINISHES | |
|---|---|
|
PIN CONTACTS |
Copper allow per MIL-C-55302 |
|
SOCKET CONTACTS |
CLIPPED CONTACTS: |
|
CONTACT FINISH |
Gold plate per ASTM B 488 or SAE AMS 2422. Localized finish per MIL-DTL-55302 and associated slash sheet |
|
MOLDED INSULATORS |
Glass filled polyphenylene sulfide per MIL-M-24519, type GST-40F |
|
JACKSCREWS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
JACKSOCKETS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
JACKSCREW KNOBS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
GUIDE PINS, GUIDE SOCKETS |
Stainless steel per ASTM A 582/A582M-Passivated per ASTM-A967, SAE AMS-QQ-P-35 |
|
GUIDE SOCKETS, POLARIZED "D" TYPE |
BeCu per ASTM-B196, ASTM B 197/B 197M-, nickel plated per SAE AMS-QQ-N-290 |
|
FACE SEAL GASKETS |
Silicone rubber per A-A-59588 |
|
CONNECTOR MARKINGS |
Contact numbers are stamped on the side of the connector. Numbers are stamped on the low-numbered side only on 2-row and 3-row right-angle connectors. |
|
TORQUE |
Polarizing Guides and Floating Mounts: 16 + 8/-0 inch-ounces. |
|
TOLERANCES |
Unless Otherwise specified: |
